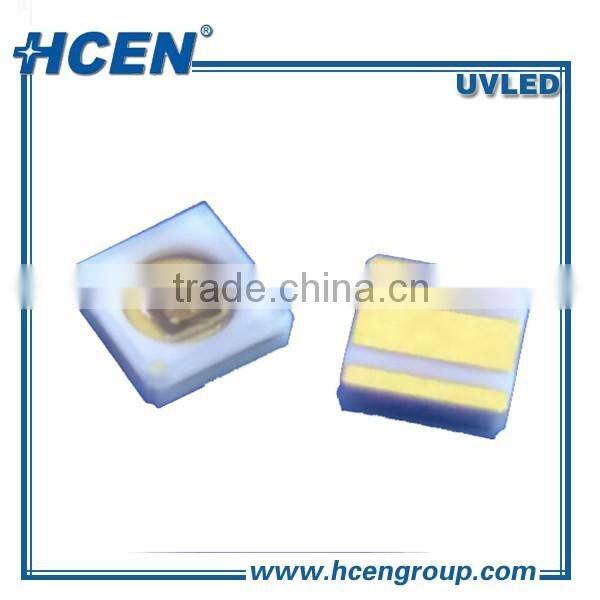

HCEN uv sterilizer led
Features
1. Quartz Glass PKG

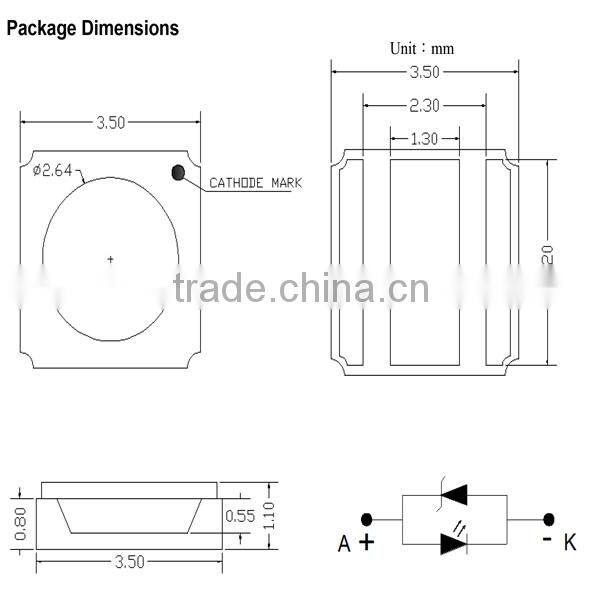

2. Dimension 3.5mm×3.5mm×1.0mm
3. Long operating life
4. High reliability
5. RoHS compliant
Applications
1. Fluorescent spectroscopy
2. Sensors and monitors
3. Currency detector
Phototherapy
Characteristics of UV LED
(1) Absolute Maximum Ratings at TA=25°C
Parameter |
Symbol |
Rating |
Units |
Input Power |
Pi |
0.2 |
W |
|
Operation Current plused<5μs,1KHz Duty cycle is 5% |
IF |
100 |
mA |
Operating Temperature Range |
Topr |
-30°C To +55°C |
|
Storage Temperature Range |
Tstg |
-30°C To +55°C |
|
(2) Electrical / Optical Characteristics
Ta=25℃ RH=40%
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Peak Wavelength[1] |
λp |
— |
280 |
— |
nm |
Radiation Flux [2](20mA) |
Φe[3] |
0.5 |
— |
2.2 |
mW |
Forward Voltage [4] |
VF |
5.0 |
— |
8.0 |
V |

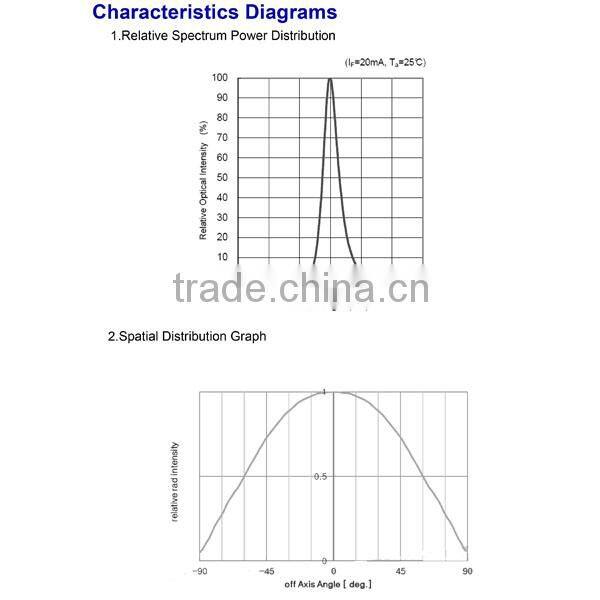

Spectrum Half Width |
Δλ |
— |
10 |
— |
nm |
View Angle |
θ1/2 |
— |
117 |
— |
deg |
Notes:
1.Peak wavelength measurement tolerance:±2nm
2.Radiant flux measurement tolerance:±10%
3.Φe is the total radiant Flux as measured with an integrated sphere
4.Forward voltage measurement tolerance:±3%
Sample Availability & Policy:
We will provide samples of products upon customer's request. To help us decide favorably on sample requests, we ask interested customers to send comprehensive buyer information for our review.
Guarantees/Warranties/Terms and Conditions:
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any products found to be defective under normal use.
Export/Import Processing Support:
We are according to your requirements and provide export services to your location via express delivery.
After Sales Service:
Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5am. Please contact us today.
Feel free to contact at Skype:Rita_Zhl
HCEN group is the professional manufactuer of UV LED emiter.
R&D team member back from Japan and Germany.
we can provide customized solution for your uv led applicaiton case.
Feel free to contact:
Shenzhen HCEN Technology Co., Ltd.
Add:Rm 1704B-1705, Tower A, Times Bldg, Tian'an Cyber Park, Futian Distric ,Shenzhen, China
Web:
