UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led

UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-1

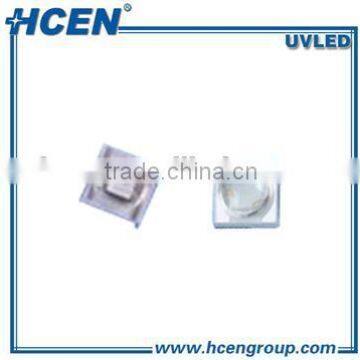

UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-2
UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-3
UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-4
UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-5
UV Curing Use 1W Smd Ceramic 3535 385nm 395nm uv Led photo-6
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
HC-C235 Series
Chip Material:
InGaN
Emitting Color:
Other, Purple
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

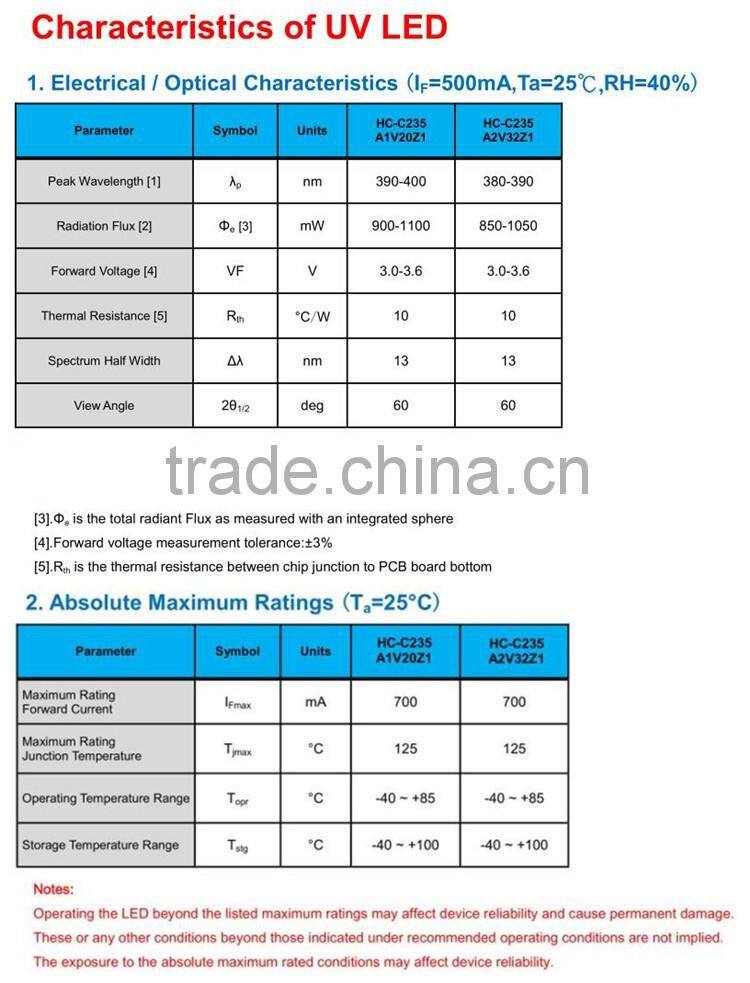

Model Number HC-C235 Series
Chip Material InGaN
Emitting Color Other, Purple
Luminous Intensity 3W/cm2
Luminous Flux(lm) 850-110mW
Optical Attenuation(%) 7
Power Other, 1.5w-1.8w
Power Dissipation 1.8
Color Temperature Ultraviolet
Operating Temperature(℃) -40, +85
Storage Temperature(℃) -40, +100
Place of Origin Guangdong, China
Brand Name HCEN
Certification CE
Product Description

 UV curing use1W smd ceramic 3535 385nm 395nm uv led

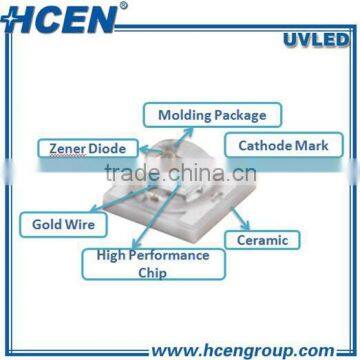

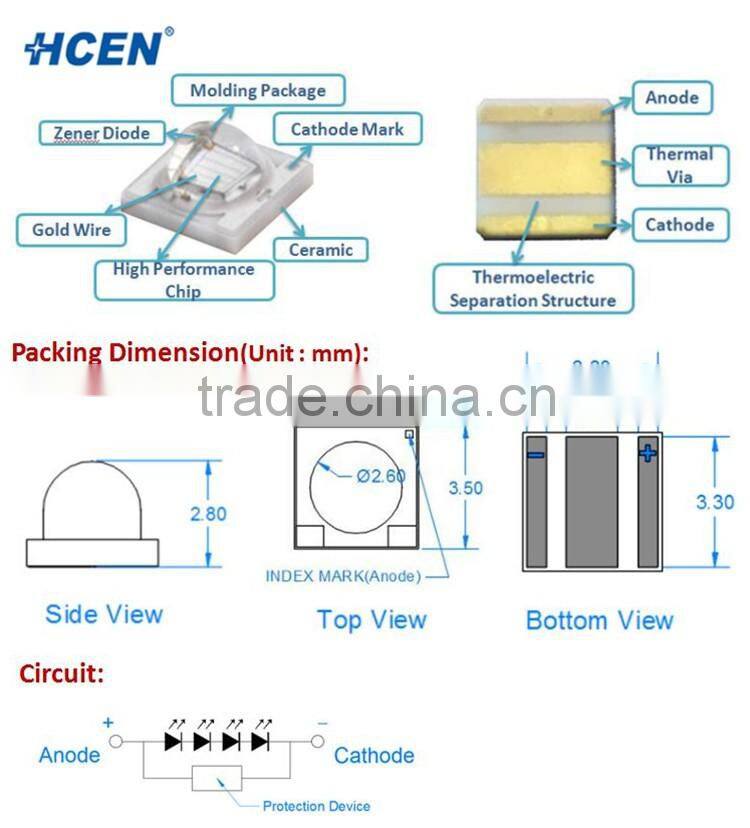

Setting Information
Item
HC-C235 Series
Packing Type
Molding Package, SMD Package
Packing Material
Resin and Ceramic
Input Power
1.5W-1.8W
Radiation Intensity
3W/cm2 (D=10mm)
Light Color
Purple
Chip Material
InGaN
Wire Material
Gold
Heat Dissipation

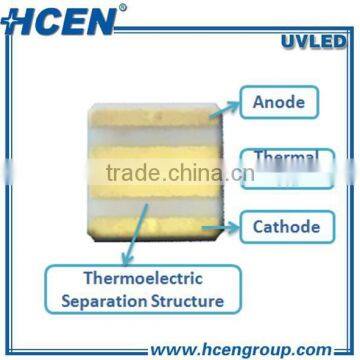

Thermoelectric Separation Structure
ESD Protection
Zener Diode
Lifespan [1]
25000 Hours
Certificate
CE, RoHS

[1]Lifespan of our products means the time when the Lumens Depreciation happens, not means the UV LEDs are unable to use.

Applications

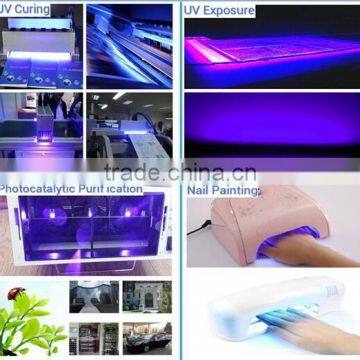

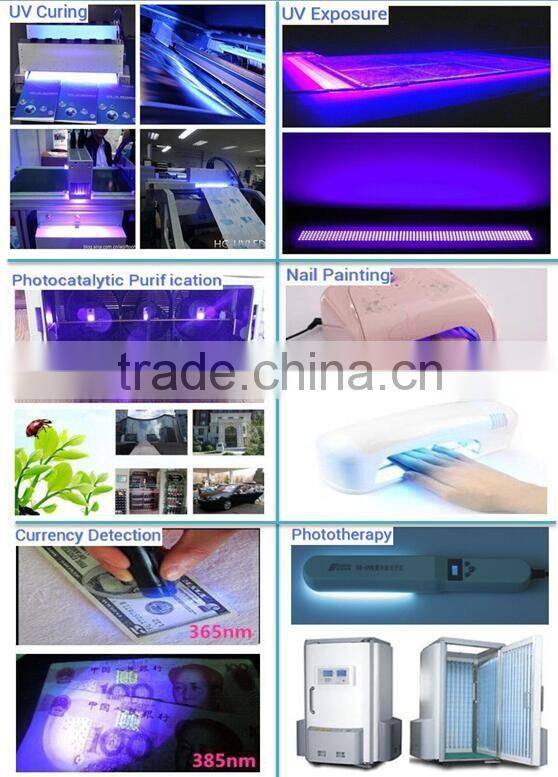

HCEN UVA LED can be widely applied for UV curing, UV exposure machine, fluorescent spectroscopy ,currency detection, nail painting, UV mosquito lamp, medical phototherapy,Bio-analysis/detection and other fileds.

Other Applications

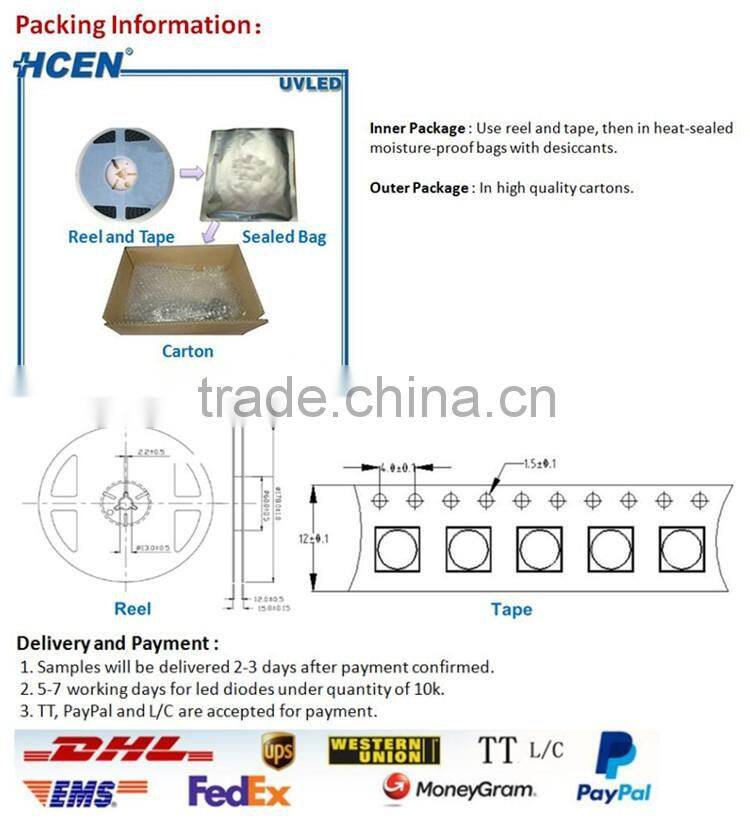

Packing & Delivery
Certifications
Company Information

Shenzhen HCEN Technology CO.,LTD was registered in Shenzhen on October 17, 2014, with USD35 million registered capital. After two years of fast development, we have established branches in Shanghai, Beijing and Hong Kong, and have accumulated rich global customer resource.

HCEN is a manufacturer specialized in UV LED encapsulation and various kinds of UV LED application and solutions.We have professional R&D team, supported by technical teams in Munich Germany, Bangkok Thailand and Malaysia, to provide customized solution for your UV LED application.

HCEN Group pay a lot attention to technology research and development, we invested 10%-20% of sales volume as a R&D costs each year!

Our Service

Guarantees/Warranties/Terms and Conditions:

We guarantee that our products are of high quality and we offer 12 months-24 months warranty and free maintenance for the problem of our responsibility.

Sample Policy:

Samples can be offered upon customer's request. You'd better tell us the comprehensive information of your requirements, so that we can recommend the most suitable products for you.

After-sale Service:

Our customer service personnel are experienced product specialists who can answer your questions five days a week from 9am to 5pm. Any questions just feel free to contact.

FAQ

Q1: Are you a Factory or Trading Company?

Answer: Factory.

Q2: How can I visit your factory?

Answer: Since you come to Shenzhen, contact us before you come, we will pick you up directly to our company.

Q3: When can I get the price?

Answer: Within 24 hours we get your inquiry and confirm the needs and solution.

Q4: How can I get a sample to check your quality?

Answer: After price and payment confirmation, we are honored to send you.

Q5: What’s the universal Lead-Time for order delivery?

Answer: 1)7-15 Working days for led diodes under quantity of 10k.
                2) 15-30 Working days for UVC application products
                3) Samples will be delivered as soon as payment confirmed .
