China Supplier Wholesale 3535 SMD Led Light UV LED Nail-painting
Detail information for UV LED
| Item | UV LED |
| Item No | HC-C235A2V23Z1 |
| Chip Material | InGaN |
| Forward Voltage | 3.0V-3.6V |
| Forward Current | 500mA |
| Maximum Rating Forward Current | 700mA |
| Thermal Resistance | 10°C/W |
UV LED 365nm 385nm 395nm for UV curing, UV module
Specifications
1.385nm UV LEDs
2.CMH Real inorganic package
3.ODM and OEM factor
Feartures:
· CMH real inorganic package
· Hermetic package

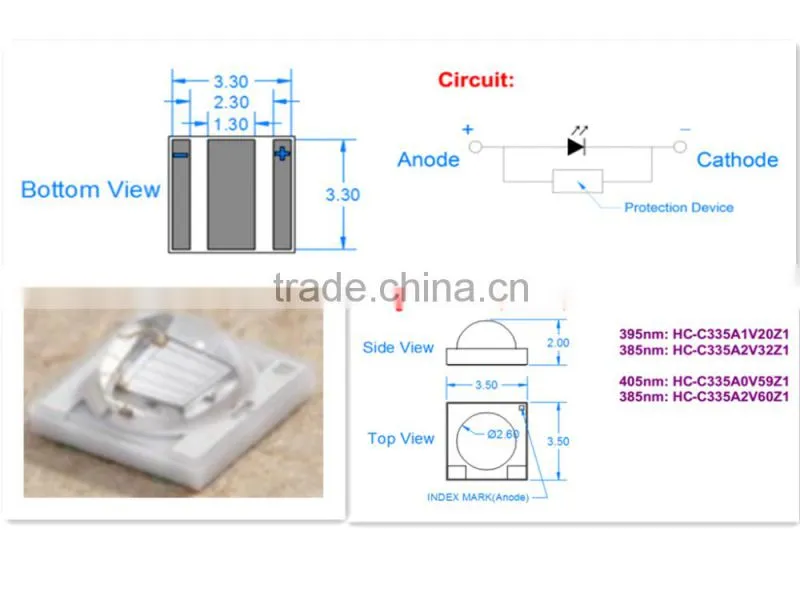

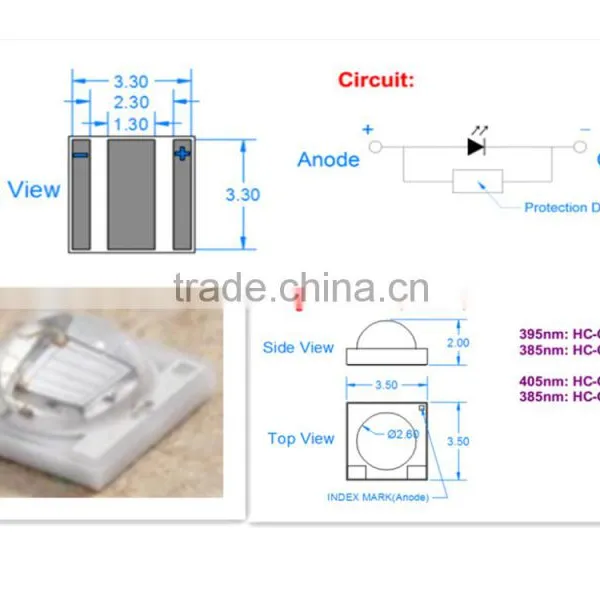

· Dimensions: 3.5x3.5x2.8mm
· Long operating lifespan: 20,000 hours
· High-reliability
· Superior ESD protection
· With RoHS Directive-compliant
· Angle: 60 degrees (optional)
Applications:
· Fluorescent spectroscopy
· Sensors and monitors
· Bio-analysis/detection
· Phototherapy
· UV curing
Packaging:
· Inner packing: carrier tape
· Outer packing: carton box
Shipping:
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-2 days for samples; 7-10 days for over batch goods .
1. Payment: T/T, Western Union, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pc
3. Warranty : 1 year
Contact us
CAUTIONS
(1) Handling precautions
· Do not handle the LEDs with bare hands as it will contaminate the LENS surface and may
affect the optical characteristics.
· When handling the product with tweezers, be careful not to apply excessive force to glass
LENS as it may cause the surface scratch.
· Dropping the product may cause damage.
(2) Electrostatic Discharge (ESD)
· The product are sensitive to static electricity or surge voltage. ESD can damage a die and
its reliability. When handling the products, the following measure against electrostatic dis-
charge are strongly recommended:
Eliminating wrist strap, ESD footwear, clothes, and floors
Grounded workstation equipment and tools
ESD table/shelf mat made of conductive materials
· Ensure that tools, jigs and machines that are being used are properly grounded and that
proper grounding techniques are used in work areas. For devices/equipment that mount the
LEDs, protection against surge voltages should also be used.
· The customer is advised to check if the LEDs are damage by ESD
When performing the characteristics inspection of the LEDs in the application.
Damage can be detected with a forward voltage measurement at low current(≤1mA).
(3) Eye Safety
· Please proceed with caution when handling any UVLEDs driven at low or high current.
Since UV light can be harmful to eyes, do Not look directly into the UV light, even through an
optical instrument.
· UV protective glasses are required to use in order to avoid damage by UV light in case of
viewing UV light directly.
