Home > Lights & Lighting > Bulb & Lamp > Ultraviolet Lamp > 1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED

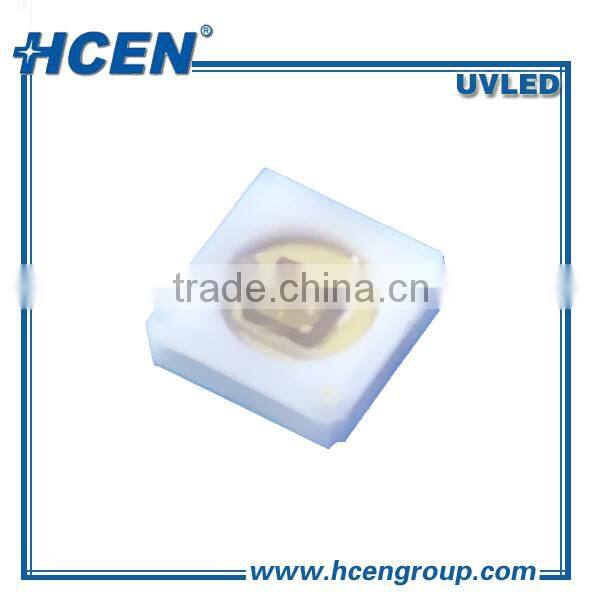

1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED

Name: 1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED
Brand: HCEN
SKU: 132765305
Availability: InStock

1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED thumbnail-1

1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED photo-1

Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

HCEN

Model Number:

C35A1HW1

Contact Supplier Request Quote Chat Now

Shenzhen HCEN Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name HCEN

Model Number C35A1HW1

1-3W High Power 3535 SMD 365nm-375 385nm 395nm UV LED

Main Features

1. Emitted Color: Purple

2. Lens Appearance: Transparent.

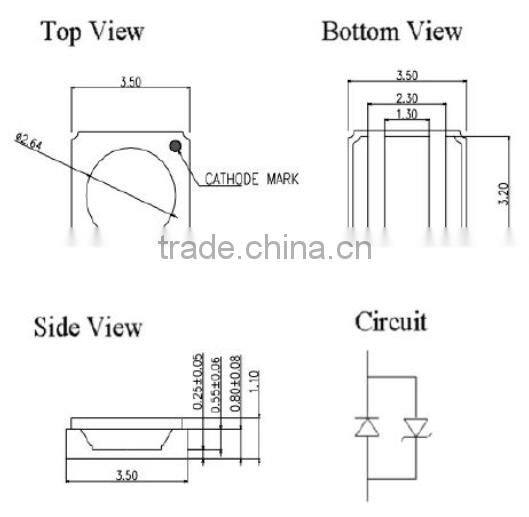

3. 3.45x3.45x2.00mm standard package.

4. Suitable for all SMT assembly methods.

5. Compatible with infrared and vapor phase

reflow solder process.

6. Compatible with automatic placement

equipment.

7. This product doesn’t contain restriction

Substance, comply ROHS standard.

Application:

1. Mosquito lamp

2. UV LED light bulbs

3. UV flashlight

4. Manicure lamp

5. The scorpion lamp

6. UV glue curing lamp

7. Other UV lamps

Product Description

Electrical / Optical Characteristics( Absolute Maximum Ratings at TA=25°C )

Characteristics Diagrams

Spatial Distribution Graph

Soldering

1. Manual Soldering
The temperature of the iron tip should not be higher than 350℃and Soldering time to be within 3 seconds per
solder-pad.

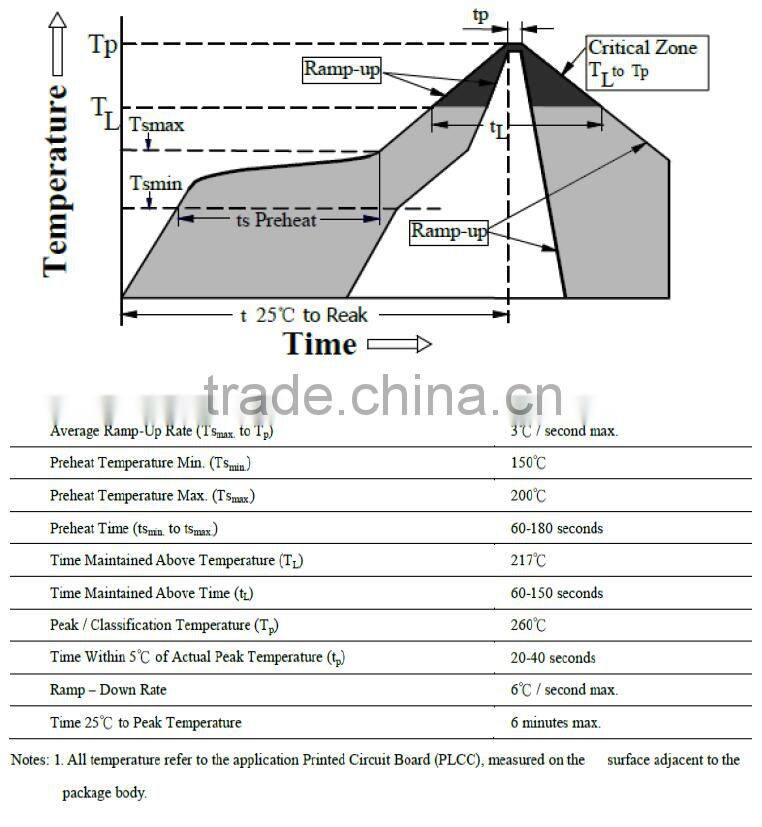

2. Reflow Soldering Characteristics

Product Images

Packaging & Shipping

Our Services

We are professional manufactuer of UV LED emiter .R&D team member back from Japan and Germany. we can provide customized solution for your uv led applicaiton case.

Feel free to contact at Skype:grace_xiaoxhf
