BCS1200CZ-D VEHICLE MOUNT ANTENNA
DESIGNED FOR SUV

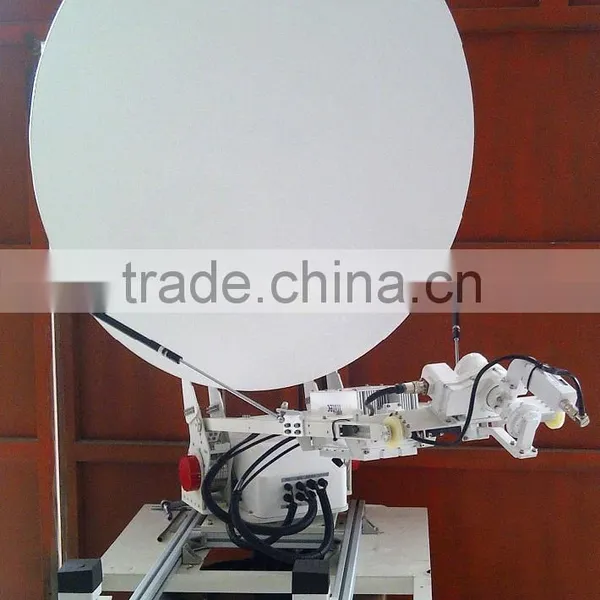

BCS1200CZ-D is an auto-acquisition satellite antenna system which can be mounted on the roof of a vehicle. And its aerodynamicdesign could improve SUV’s performance and stability. It has features such as easy operation, quick start, reliable performance and more. The antenna is widely used in national security, emergency communication, telecom operators, satellite news gathering, oil exploration, scientific expedition and other fields.
PRODUCTS FEATURES:

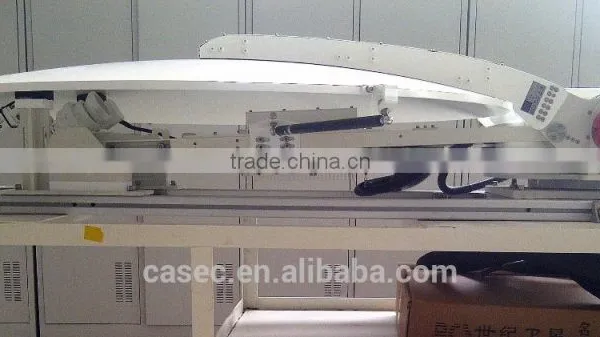

- Ø Gross weight≤50KG, Stow height≤280mm, fast connect with roof rack. Installed without vehicle modification, ideally suit for SUV.

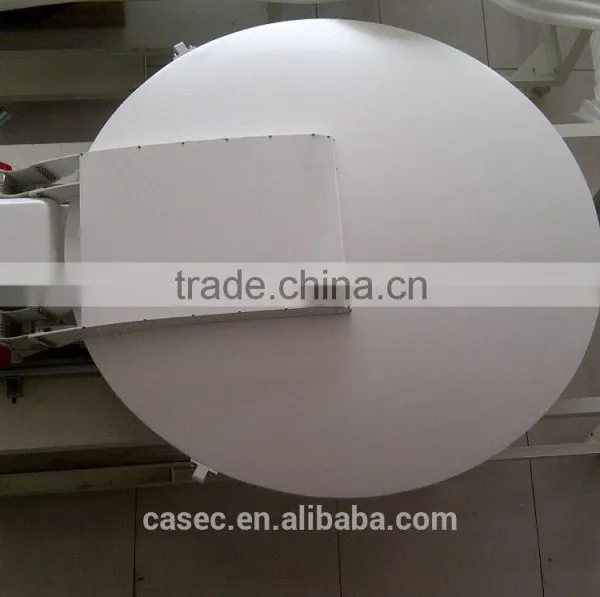

- Ø Reflector is made of carbon fiber, small in size, light weight, high rigidity, aestheticappearance which can effectively improve the reflector accuracy and electrical performance indicator.
- Ø The servo turntable adopts the patented rope-speed reducer, which have no backlash and bearing. The transmission efficiency close to 100% with no need of lubrication and lifelong time maintenance-free.
- Ø Equipped with high performance beacon receiver and GPS, with both automatic and manual operating mode, the antenna could deploy in minutes. The acquisition and stow process can be realized by one-button. Highly reliable transmission system and antenna control system guarantee the satellite tracking precision and 100% capturing accuracy.
- Ø More than 10 satellite parameter sets can be preset in the antenna control unit; Antenna is equipped with electronic compass and GPS. It can automatically positioning, north-seeking and calculate the satellite acquisition angle; Control unit is equipped with beacon and DVB satellite signal receiver; Polarization isolation can be adjusted to the best after azimuth and elevation acquisition. Automatic tracking can be keep in case of wobbles, which ensures the antenna aiming at satellite all the time.
- Ø Control unit can be connected to computer by serial port in order to achieve the control of the antenna. At the same time, the local position information, antenna working status, signal intensity, alarm information can be uploaded in order to achieve long-distance monitoring.
- Ø Reliability. The production process and test are based on military standard with MTBF≥2000hours.
Electrical RF | ||
Reflector |
1.2m Carbon-Fiber |
|
Precision of Reflector |
RMS≤0.1mm |
|
Feed |
Linear polarization, two-port,single reflector,offset |
|
Frequency |
Transmit |
13.75—14.5GHz |
Receive |
10.95—12.75GHz |
|
Gain |
Transmit |
42.84dBi |
Receive |
41.9dBi |
|
Cross-Pol Isolation |
On-Axis |
≥35dB |
1 dB |
≥30dB |
|
Feed Port Isolation-Tx to Rx |
≥85dB |
|
VSWR |
≤1.25:1 |
|
Feed Input Loss |
≤0.35dB |
|
Noise Temperature |
≤45K(10ºelevation angle) |
|
Power Capacity |
300W |
|
Port |
WR75 |
|
3dB BeamWidth |
Transmit |
1.2º |
Receive |
1.38º |
|
Sidelobe |
azimuth plane 1-20°,29-25 log θ dBi first sidelobe <-20dB |
|
Mechanical | ||
Stowed Dimensions |
1600mm×1200mm×280mm |
|
Total Antenna Weight |
≤50kg |
|
Rugged Case |
Tri-axis motor-driven (azimuth, elevation, polarization),hand operation without power |
|
|
Travel
|
Azimuth |
±270º |
Elevation |
0º—90º |
|
Polarization |
±95º |
|
Speed |
Azimuth |
0.1—3º/s Adjustable |
Elevation |
0.1—3º/s Adjustable |
|
Polarization |
4º/s Adjustable |
|
Controllers | ||
Input Power |
AC220V,50Hz |
|
Acquisition |
Satellite beacon receiver and DVB satellite receiver |
|
Configuration |
Automatic and manual, one button of searching |
|
Cabinet |
1U 19inch.6.5kg |
|
UI |
English |
|
Auxiliary Equipment |
GPS, Inclinator, Electronic Compass |
|
Auto-Acquisition Time |
≤3min |
|
Acquisition Accuracy |
≤0.1℃(azimuth, elevation) |
|
≤0.8℃(polarization) | ||
Power Consumption |
≤300W(without BUC) |
|
Environmental | ||
Operating Temperature |
-40—60℃(antenna) |
|
-10—55℃(antenna control unit) | ||
Survival Temperature |
-55—70℃ |
|
Operating Humidity |
95%(30℃) |
|
Operating Altitude |
≤5000m |
|
Rain-proof |
6mm/min |
|
Sand-proof |
GJB367A-2001 Military communication equipment standards |
|
Salt-mist Test | ||
Shock Resistance | ||
|
|
|
Operating Wind Speed |
20m/s working in steady wind |
|
30m/s working in blast of wind | ||
60m/s stowed in moving vehicle | ||
MTBF |
≥2000h |
|
