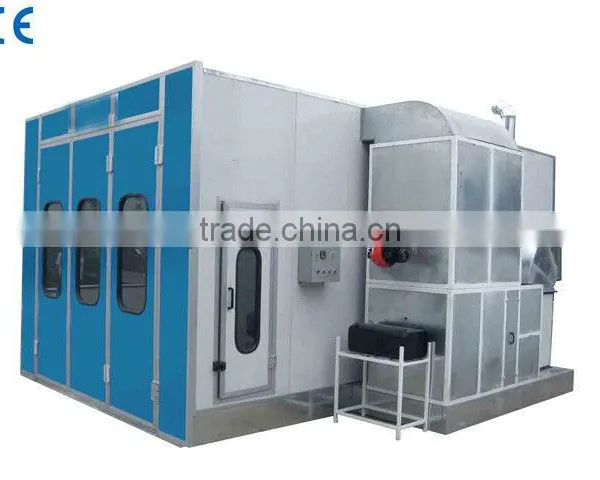

Car Spray Booth CRE-8100

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Power:

7.5

External Size:

7000x5560x3430

Internal Size:

6900x4000x2800

Yantai Primacy Industry Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Power 7.5

External Size 7000x5560x3430

Internal Size 6900x4000x2800

Certification CE

Place of Origin Shandong, China

Brand Name CRE

Model Number CRE-8100, CRE-8100

Specifications

CE
Total Power:7.5
Burner:Italy Riello Brand

Auto Maintenance Equipment --Spray Booth

Specification:

Outside Size (mm)	7000×5350×3430	Front Door(mm)	3000(w)×2700(H)
Inside Size(mm)	6900×4000×2800	Total Power(km)	7.5

Product Description:

Cabin System	Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards, 50mm Thick, Tongue & Groove Style, Compound Construction, Aluminum-alloy Frame. Anti-flame and Heat-Insulation, Galvanized steel roof panel
	Basement	Galvanized Steel Sheet and Square steel pipe assembling, Grid &embossed plate floor, Three embossed steel ramps.
Air Circulation System	Inhaling Ventilator	Blower capacity: 22000m³/h	NO Outlet Fan
		Power: 5.5kw/set
		Quantity: 1 sets
	Air Volume: 22000m³/h; Air Speed: 0.35m/s, Air Recycling times:280 times/h;
Purification System	Dual Filtering Structure, The Primary Filter Can Capture Granules Larger than 10μm. Ceiling Filter Capture Granules Bigger than 4μm. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.4mg/m³
Heating System	Burner	Italy Riello Brand, G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor
	Heat Energy Converter	SUS304 Stainless Steel heat exchanger, argon arc welding;
	Max Temp:80^.C, Heating Time:4-6min(20-60), Fuel Consumption: 4-6kg/vehicle
Light System	Ceiling Light: 24pcs 36w Philips Lamp; 800 Lux
Controlling System	Spray & Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm
