Carding Machine Alpaca Camel Hair Cashmere Wool

US$ 800,000 - 900,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Cashmere/ wool/ alpaca carding

Automatic Grade:

Automatic

Qingdao Textile Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Cashmere/ wool/ alpaca carding

Automatic Grade Automatic

Place of Origin Shandong, China

Brand Name QTM

Model Number JONOVO

Voltage 380V

Certification CE, ISO9001

Warranty 12 Months

After-sales Service Provided Overseas service center available

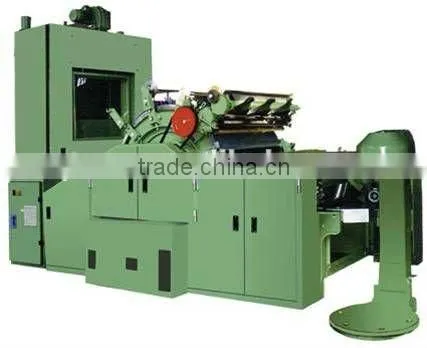

1.5M WIDTH CASHMERE CARDING COMBINATION MACHINE

Flow

FB002-15 Feeding Bucket→FB101-15 Opener → FB102-15 Opener → FB111-15 Parallel Card → FB200-15b1-b4 Cashmere Card

A. Save Energy, High Efficiency

The weight of cylinder/doffer decreases after changing into steel plate welding structure, the power rate remains the same.
Both cylinder and doffer are driven by main motor, cut down one doffer motor, the power rate of main motor remains the same.
The main installment power rate decreases and machine-hour production increases for the whole combination machine.
Labor saving about 50%
Production increase 100%
Extration efficiency reached to 95% above.
Saving 40% energy.
The production of combination machine doubled with no power rate increased, which improve the production efficiency.
4.5-7.5Kg/h(1.5m width line)

B. Precise Manufacturing Skills

The barrel of cylinder/doffer applies the steel plate welding structure.
The round wallbord applies the labber-shaped section aemi-curved structure.
It's curved-sealed between end face of cylinder and roud wallboard.
The doffer wallboard rigidity is increased, wall of card frame thicker and increase the height of bar.
Front and rear waling applies steel plate welding structure, combined with frame to become boat-like frame.
All the motors install directly on frame to stabilize the driving.

C.Perfect Technology

The technology parameter need to be adjusted all design into frenquency conversion.
Blowing flow:thin feeding, small grabbing, big separation, slow speed, slow opening and carding.
Carding flow:4-6 sets of carding machine connected, with specialized metallic wires mounted.
Using mote knife, flats, front web cleaner and dust filter to gradually ease short fober, coarse wool.
