Kisstone Long Life Operating Principle Cone Crusher Video

Name: Kisstone Long Life Operating Principle Cone Crusher Video
Brand: KISSTONE
Availability: InStock

FOB Price

US$ 26,000 - 150,000 / Set

1 Set(Min. Order)

Port FOB GUANGZHOU
Payment TermsT/T Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cone Crusher
Application	Crush various kinds of ores and rocks of medium or above hardness.	Motor Type	AC Motor
Power(W)	75KW	Capacity(t/h)	45-196t/h
Place of Origin	Guangdong, China	Brand Name	KISSTONE
Model Number	S75B	Dimension(LWH)	270017302190 mm
Weight	12.6t	Certification	CE, ISO, IAF, CNAB
Warranty	1 Year	After-sales Service Provided	Overseas service center available

Product Description

Kisstone long life operating principle cone crusher video

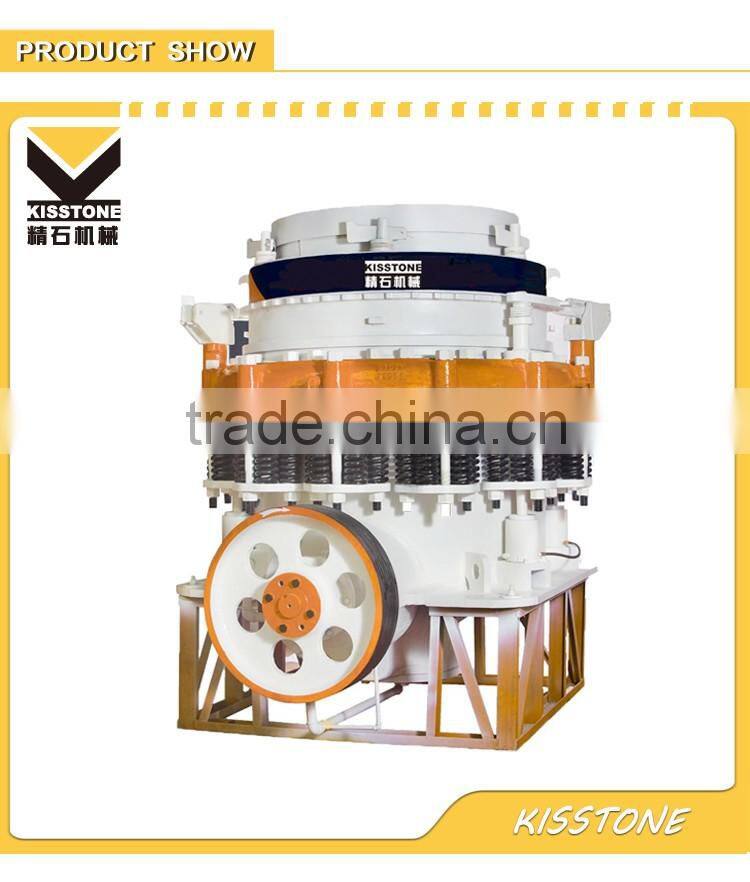

S series cone crusher--the main equipment of mine crushing market, suitable for hard rock stone.

High quality and lower price

Low operation & maintenance cost

large production capacity

uniform granularity, good product shape

Durable wearing parts

Reliable (Excellent) performance, easy operation

1. Larger capacity, higher performance

2. Perfect product size

3. Stability trustworthy

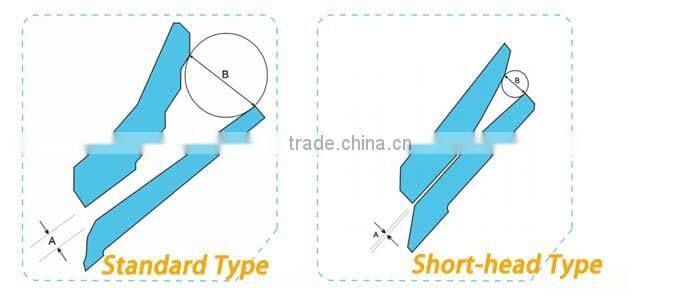

4. More cavity type choosing available

During operation, the motor drives the eccentric sleeve to rotate through transmission device, then moving cone do swing movement under the force of eccentric sleeve so that the crushing wall near & leave the surface of rolling mortar wall from time to time. In this way, the ores and rocks constantly under attack, squeeze and crook in the crushing cavity to achieve the crushing.

S series high-efficiency cone crusher is widely used to crush metallic minerals and nonmetallic minerals, cement, construction aggregate, sand and metallurgy. Mineral can be crushed are iron ore, nonferrous metal ore, ganite, quartzite, dinas, river stone, etc.

Model	Chamber type	Min Discharge Size(mm)	Max Feeding Size(mm)		Power (kw)	Capacity(t/h)													Weight (Kg)
						Corresponding discharge size(mm)
			closed side	opening side
S75B						9	13	16	19	22	25	31	38	51	64	76	89	102
	F	9	83	102	75	45	59	72	81	91									12600
	C	13	159	175	75		59	72	91	109	118	136	163						12600
	EC	25	163	178	75						128	147	175	196					12600
S155B	F	13	109	137	185		109	127	145	154	163	181							25000
	M	16	188	210	185			132	159	172	200	227	253	309					25000
	C	19	216	241	185				172	195	218	249	295	378					25000
	EC	25	238	259	185						236	276	324	398	455				25000
S240B	F	15	188	209	240			181	204	227	258	295	327						47000
	M	22	213	241	240					258	290	336	381	437	437				47000
	C	25	241	269	240						354	417	454	610	610				47000
	EC	38	331	368	240								538	630	743				47000
S400B	F	19	253	278	400				381	408	499	617	726	852	1036				94500
	M	25	303	334	400						608	726	807	998	1128	1296			94500
	C	31	334	369	400							789	844	1088	1257	1386	1450		94500
	EC	38	425	460	400								880	1179	1361	1473	1531	1643	94500
Note:EC=Extra Coarse, C=Coarse, M=Medium, F=Fine EF=Extra Fine.

Model	Chamber type	Min Discharge Size(mm)	Max Feeding Size(mm)		Power (kw)	Capacity(t/h)											Weight (Kg)
			Max Feeding Size(mm)			Corresponding discharge size(mm)
			closed side	opening side		3	5	6	10	13	16	19	25	29	32	38
S75D	F	3	13	41	75	27	41	54	68	90							12600
	C	3	33	60	75	27	41	54	68	90	100						12600
	EC	6	51	76	75			59	73	95	113	127					12600
S155D	F	3	29	64	155	36	59	82	104	136	163						25000
	M	6	54	89	155			82	104	136	163						25000
	C	8	70	105	155				109	159	181	200	227				25000
	EC	16	98	133	155							209	236				25000
S240D	F	5	35	70	240		90	136	163	209							47000
	M	6	54	89	240			136	163	209	253	281					47000
	C	10	98	133	240				190	253	281	308	336				47000
	EC	13	117	133	240					253	281	308	336				47000
S400D	F	5	51	105	400		190	270	345	360	408	475	512				94500
	M	10	95	133	400				354	408	454	508	560	613			94500
	C	13	127	178	400					454	480	540	599	661	683		94500
	EC	16	152	203	400						508	590	653	680	693	720
Note:EC=Extra Coarse, C=Coarse, M=Medium, F=Fine EF=Extra Fine.

Note: Production capacity base on bulk density 1.6t/m³

Note: 1. Production capacity base on bulk density 1.6t/m³; 2. I-Net finished product(under screen); 3. II-Tonnage through crusher per hour(net finished product plus circulate load).
