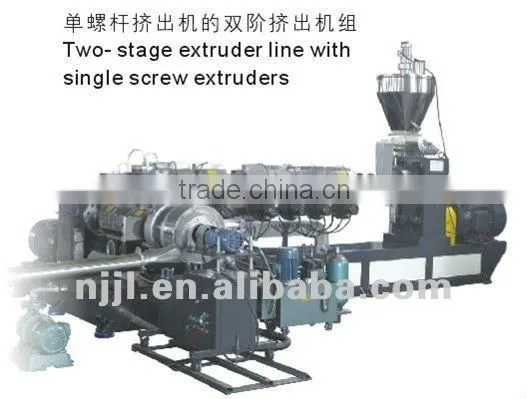

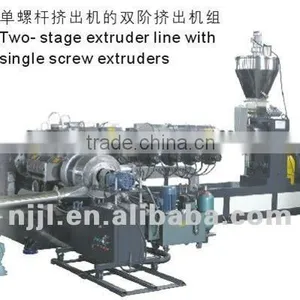

Help CenterTwo Stage Extruder Line With Single Screw Extruder
Related Products
-
Black Masterbatch Extruder / Pelletizing Extrusion LineNegotiableMOQ: 1 Set -
High Quaility Two-stage Twin Screw Extruder LineNegotiableMOQ: 1 Set
-
High Quality Two Stage Film Recycling ExtruderNegotiableMOQ: 1 Set
-
High Quality SJ150-SJ120 Two-stage Single Screw Extruder LineNegotiableMOQ: 1 Set
-
High Quality SHJS 75-180 Two-stage Extruder LineNegotiableMOQ: 1 Set
SJS series two-stage machine characteristics Structure Both Stages are SJ low speed single screw extruder. Two machines are placed vertically. Principle and applications: Increasing the operation variables and realizing the process because of two-stage machine. Special for Recycling waste film granules line.
Usually the first compounding extruder runs at a high speed for good mixing and high output capacity. The second extruder must be a larger diameter single screw one that can run at lower screw speed. The lower screw speed can avoid over-heating by internal coolin system and strong heat exchange ability.The functional separation allows opearation allows opeartor to more flexibly control the expectable material mixing process and temperature.
1. Technical data :
Model |
D(mm) |
L/D |
n(r/min) |
P(kw) |
Q(kg/h) |
|
SHJS50-100 |
SHJ-50 |
50.5 |
24-48 |
500 |
37/45 |
100/300 |
SJ-100 |
100 |
7-20 |
85 |
30/37 |
||
SHJS65-150 |
SHJ-65 |
62.4 |
24-48 |
500 |
55/75 |
200/500 |
SJ-150 |
150 |
7-20 |
85 |
37/45 |
||
SHJS75-180 |
SHJ-70 |
71.0 |
24-48 |
500 |
90/110 |
400/800 |
SJ-180 |
180 |
7-20 |
85 |
45/55 |
||
SHJS95-200 |
SHJ-95 |
93.0 |
24-48 |
400 |
200/250 |
700/1500 |
SJ-200 |
200 |
7-20 |
85 |
55/75 |
||
