Home > Products > belt conveyor - TD series > Competitive and stable mobile inclined reversible belt conveyor
Competitive and stable mobile inclined reversible belt conveyor
- 100 Set / Sets per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Vibrating Conveyor | Material: | Rubber |
Material Feature: | Heat Resistant | Structure: | Belt Conveyor | Load Capacity: | 660-1200t/h |
Place of Origin: | Guangdong, China | Brand Name: | KISSTONE | Model Number: | TDZ1400 |
Voltage: | 380v | Power(W): | 22-45kw-4 | Dimension(L*W*H): | Width:1400 mm |
Certification: | CE,ISO,BV | After-sales Service Provided: | Overseas service center available |
Product Description
Competitive and stable mobile inclined reversible belt conveyor
Basic speasification KISSTONE
Belt conveyor is the main transporting equipment widely used in industrial and mine enterprises.
It utilizes the internal friction and lateral pressure characteristic of the bulk materials and receives the puling force from drive rollers dragging them in its movement direction to increase their internal pressure.
The internal friction ensures that the internal friction among material layers is bigger than the external friction of the belt. And the carry roller under the belt moves forward along with materials.
When external force ratio satisfies certain conditions, material flow are ensured to be stable.
Performance features
1.Simple structure, flexible layout
2.High working stability and reliability
3.Wide variety of transporting materials
4.Low cost, low energy consumption,high efficiency
5.Large transport volume
6.High safety
7.Convenient loading and unloading of materials
8.Wide application field
Why KISSTONE is popular in the world ?
Providing clients with overall solutions;
The outstanding features of crusher from Kisstone;
Customized production and flexible configuration.
Product parameters:
Model | Convey length | Motor power | Belt speed (M/S) | Belt width (MM) | Installation dip angle (°) | Drive roller | diameter | Carry roller diameter(mm) | Conveying capacity(t/h) |
TDZ500 | L 12 | 4kw-4 | 1.6 | 500 | 15-18 | 320 | 500 | 89 | 40-80 |
12 L≤20 | 5.5kw-4 | ||||||||
20 L 30 | 7.5kw-4 | ||||||||
TDZ650 | L≤10 | 4kw-4 | 1.6 | 600/650 | 15-18 | 320 | 500 | 89 | 60-120 |
10 L≤18 | 5.5kw-4 | ||||||||
18 L≤25 | 7.5kw-4 | ||||||||
25 L 35 | 11kw-4 | ||||||||
TDZ800 | L≤10 | 5.5kw-4 | 1.6 | 800 | 15-18 | 480 | 630 | 89 | 100-300 |
10 L≤15 | 5.5kw-4 | ||||||||
15 L≤25 | 11kw-4 | ||||||||
25 L≤40 | 15kw-4 | ||||||||
40 L 60 | 18.5kw-4 | ||||||||
TDZ1000 | L≤10 | 7.5kw-4 | 1.6 | 1000 | 15-18 | 630 | 800 | 108 | 200-400 |
10 L≤15 | 11kw-4 | ||||||||
15 L≤25 | 18.5kw-4 | ||||||||
25 L≤35 | 22kw-4 | ||||||||
35 L≤45 | 30kw-4 | ||||||||
45 L≤55 | 37kw-4 | ||||||||
TDZ1200 | L≤10 | 15kw-4 | 1.6 | 1200 | 15-18 | 800 | 1000 | 108 | 400-850 |
10 L≤20 | 22kw-4 | ||||||||
40 L≤55 | 37kw-4 | ||||||||
TDZ1400 | L≤10 | 22kw-4 | 1.6 | 1400 | 15-18 | 1000 | 1200 | 108 | 660-1200 |
10 L≤20 | 30kw-4 | ||||||||
40 L≤55 | 45kw-4 |
Application Scope

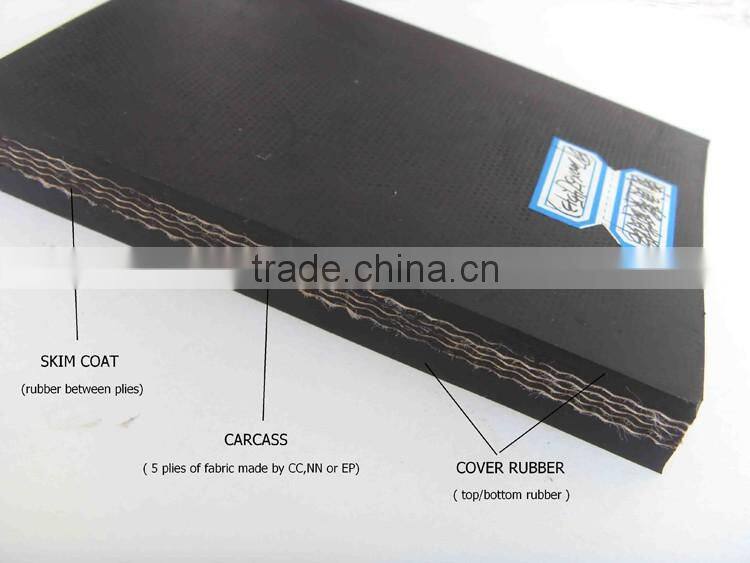

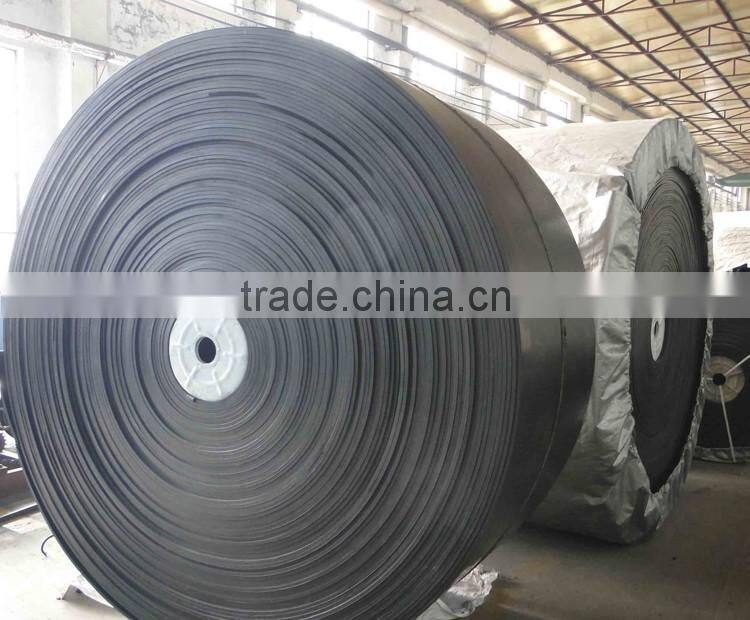

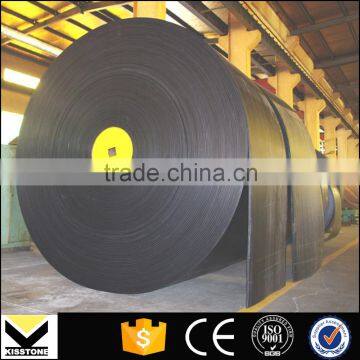

The rubber conveyor band widely used to crush metallic minerals and nonmetallic minerals, cement, construction aggregate, sand and metallurgy.
Mineral can be crushed are iron ore, nonferrous metal ore, ganite, quartzite, dinas, river stone, etc.
Production line:
Our factory KISSTONE
The factory, named ZMING, coversan area of 30000 square meters, we have a professional & powerful group, especially on R&D, sales, after-sales service, and QC control.
Company profile KISSTONE
Kisstoneis the leading manufacturer & supplier in South China, who is professional on equipment, service and comprehensive solution for crushing and grinding industry.
1.Established in 2009
2.Factory in Guangzhou, 2 sales office in central Guangzhou,3 overseas branch in Africa(Ethiopia), South Asia(Vietnam),South America(Mexico)
3.Professional on mining equipment & parts
4.200+ employees, Partners in 50+ countries &areas
5.ISO9001:2000 approved
Packaging & Shipping KISSTONE
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble;
3.Load container, Spear Parts in wooden case.
Our services KISSTONE
Pre-sales Services:
Freely provide project designing, process designing, choosing suitable equipment for you.
Medium-sales service:
After we signed the purchase contract, we will provide you the perfect goods trading services, until the product you purchased properly to your hands.
After-sales Services:
We will send a professional and high levels installation engineer team to the scene to guide installation, debugging and training operators.
F.A.Q KISSTONE
Q: How long is the warranty of your equipments? Does your company supply the spare parts?
A: The warranty period of Kisstone equipments is one year, so any questions, please contact us freely by 24 hours. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: Will you accept factory inspection?
A: Yes, of course. You are greatly welcome to visit our factory for you own inspection.
Q:Where is the manufacturer?
A: Zengcheng, Guangzhou,Guangdong Province of China.
