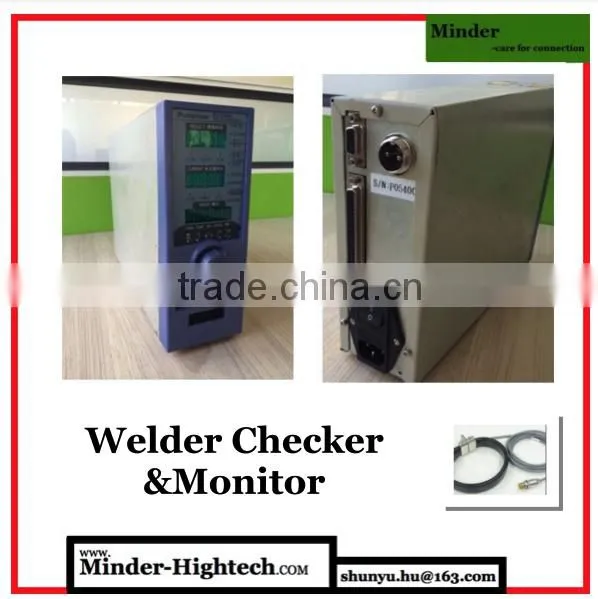

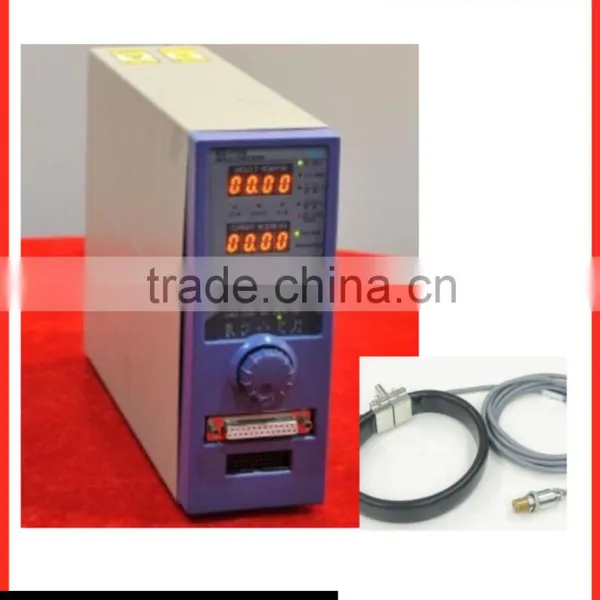

The MD-122A is the very latest in stand-alone weld checker technology. This full function, cost effective unit is designed to monitor every type of welding control. The unit’s “miniature” design allows it to be mounted in any position on the welding machine.
Characteristics:
1, Measures Single Phase AC, DC Inverter, AC Inverter, Capacitor Discharge, Transistor, Single-phase Rectified, 3-phase Rectified.
2, Can set up/down limited, give out error signal when over limited.
3, Current Range: 0.10 – 19.99kA with for standard coil.
4, Up to 2s checking time.
5, RMS or PEAK Values.
6, RS485/RS232C communication to computer include:current EMS;welding time;welding result;welding angle.
7, No weld current” Detection.
8, Printer Connection with Standard Reports.
9,weight:1.9kg, power:<12w,dimension:70mm*189mm*246mm.

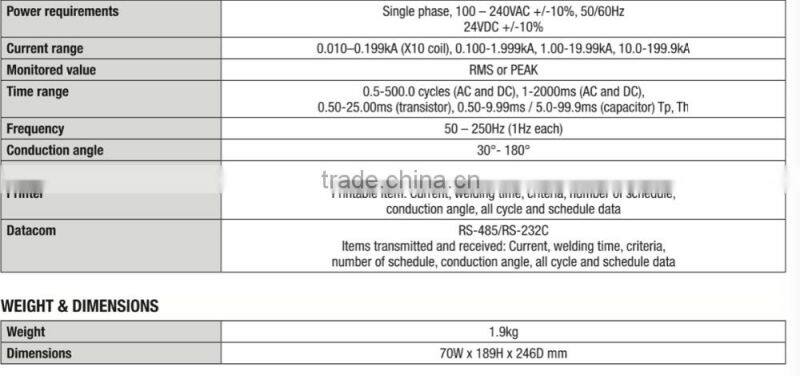

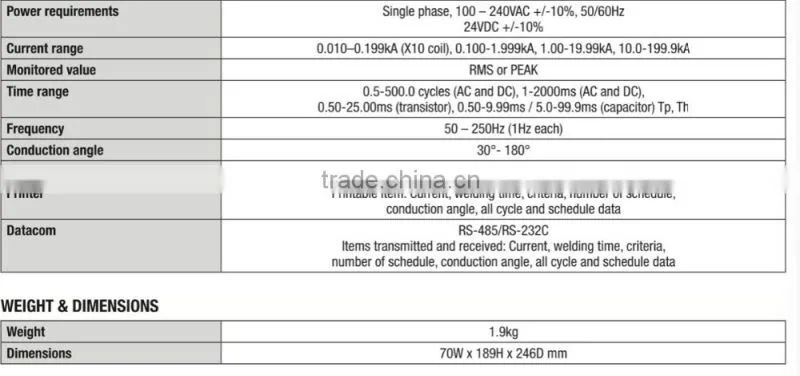

Specification:
ABOUT PACKAGING:
First we use foam and paper package,and second we use plywood box to cover, ensure there willl be no
injury during delivery. as below:
ABOUT SHIPPING:
First, usually we quote an EXW price, the shipping method should be discussed. we have tried fast forward
as DHL, and have tried by air, and by land to Russia, also by sea. also we are glad to support customer's own
forwarder.
Guangzhou Minder-Hightech Co.,Ltd(MINDER-HIGHTECH CO.LIMITED HONGKONG ) is focused on connection(welding).
We are comprised by a group of high educated specialists,with the leader of overseas professor, some of us have more than 20 years welding experience,our goal is to provide high performance product but low price and exceeded service.
We care for the safety of operator, this year, we developed a safety system in spot welding industry named SOFT TOUCH system,which can prevent heavy pinch point injury.
We are specialized in most of the connection(welding) technics,the most application we have participated in are electronic component(resistance,capacitor,inductor),chip on board,automotive electronic accessories,cell phone,IC cards,motor armature commutator etc.By material, we have engaged in connecting the Aluminum, Copper, Brass, Au(gold), Platinum, Nickel, Enameled wire, etc.
We also provided the full IC package line; and LED producing line; Crystal oscillator producing line; as well as the wafer machining equipment.
Our product are classified into resistance spot welding,inverter seam welding, ultrasonic wire bonding,hot bar soldering,automatic TIN soldering,stud welding, all the product are with mature latest technology,high performance,high precision,and high reliability.
At the same time, we maintain a good relationship with the high school scientific research institution,we know the newest connection(welding) technology direction all over the world, committed to give out the best connection(welding) solution to our global customer.
We chose the most open and industrialized city-guangzhou-to be our base head place,to ensure the efficiency and rapidly response.
These years,we proud of our growth with the famous company such as TPT,K&S,ASM,Bosch,Miyachi,Uniteck,Avio,Apollo,LPKF etc.
