LDGY-15 Electromagnetic Flow Meter

LDGY-15 Electromagnetic Flow Meter thumbnail-1
LDGY-15 Electromagnetic Flow Meter thumbnail-2
LDGY-15 Electromagnetic Flow Meter thumbnail-3
LDGY-15 Electromagnetic Flow Meter photo-1
LDGY-15 Electromagnetic Flow Meter photo-2
LDGY-15 Electromagnetic Flow Meter photo-3
US$ 3,000 - 3,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CEPAI
Model Number:
LDGY-15
Contact Supplier Request Quote Chat Now
Cepai Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai jiangsu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CEPAI
Model Number LDGY-15

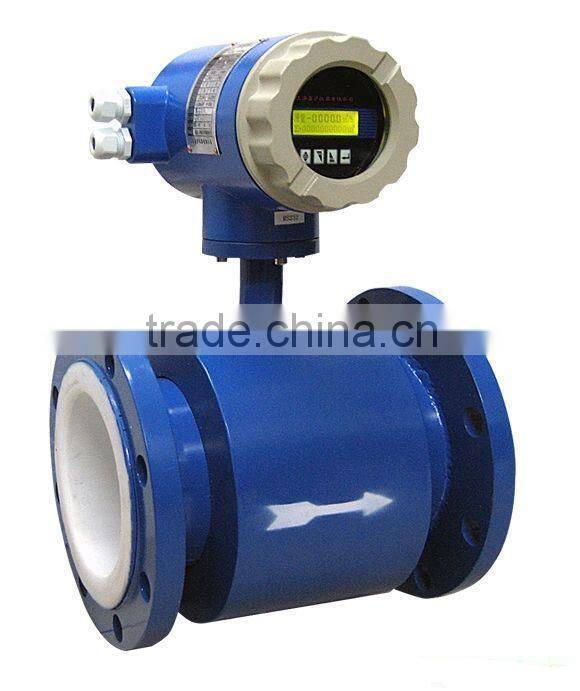

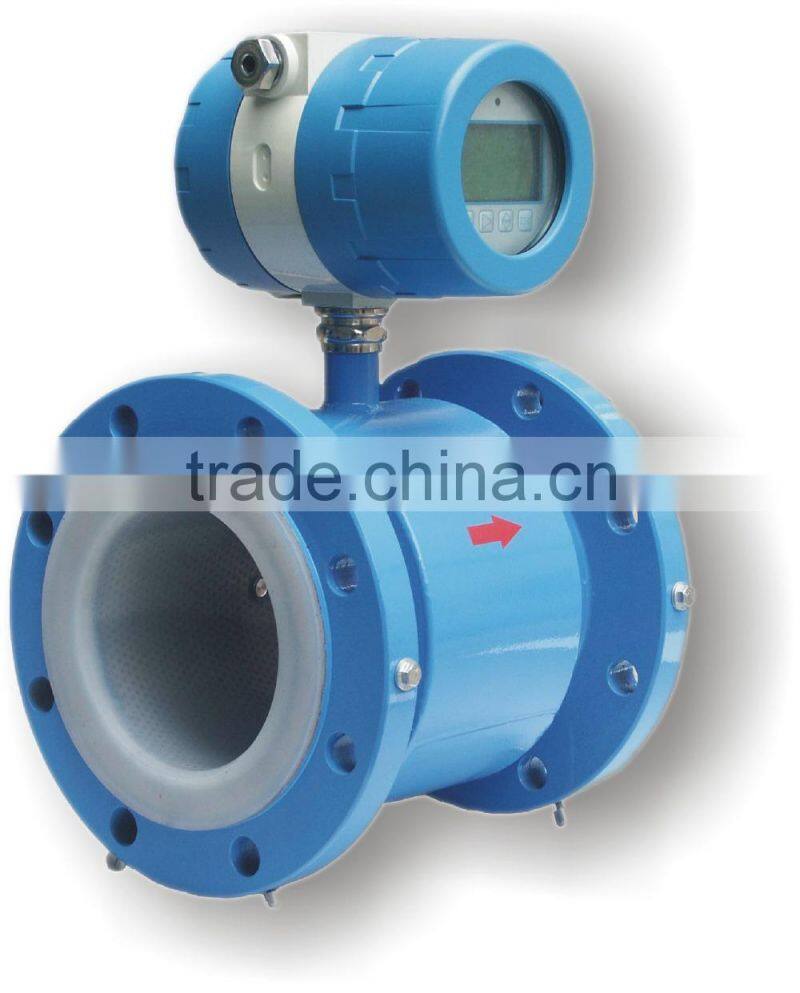

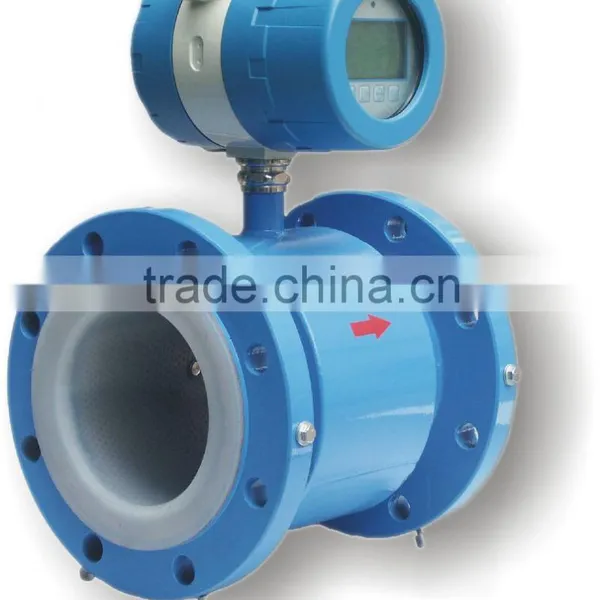

LDGY-15  Electromagnetic Flow Meter

Products Description

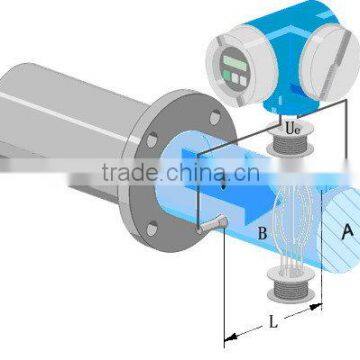

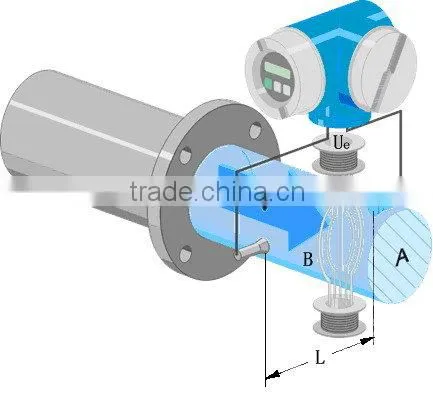

LDGC Series pipeline type electromagnetic flow meter from CEPAI is inductive meter which measures conductive medium volume flow based on Faraday’s Law of Electromagnetic Induction. Single chip embedded technology, digital excitation and CAN fieldbus are top class. Electromagnetic flow meter outputs 4-20mA signal for record, adjust and control as well as displays on field, widely used in industrial technology and management departments like chemical industry, environmental protection, metallurgy, medicine, papermaking, water supply and drainage. Except general conductive liquid, it can also measure volume flow of mixed liquid, high-viscosity liquid, salt liquid, strong acid and strong alkali liquid etc.

LDGY-15 Electromagnetic Flow Meter

Features

Simple structure, reliable, without movable elements, long service life;

No cut-off or choke elements, no pressure loss and flow-blocking;

No mechanical inertia, fast response and stability, applicable to automatic detection, control and process-regulation system;

Measuring accuracy is not effected by medium and its temperature, viscosity, density and pressure;

Lined with PTFE or rubber, electrode material Hc, Hb and Ti are available, which can be applicable to different medium;

With several models like pipeline type and insertion type;

With EEPROM memory unit, measuring and computing data which is reliable and safe;

With two types, integrated type and separated type;

LCD display with high definition;

Technical Parameters

Accuracy: pipeline type, class 0.5 and class 1.0; insertion type, class 2.5;

Medium: liquid and mixed liquid with conductivity more than 5μS/cm;

Flow velocity: 0.2~8m/s

Environment temperature: -40℃~+50℃

Medium temperature: PTFE line, not more than 180℃;

                    Rubber line, not more than 65℃;

Explosion-proof: ExmibdⅡBT4

Magnetic interference: ≤400A/m

Housing: integrated, IP65;

          Separated, sensor IP68 (underwater 5m, limited to rubber line), converter IP65

Output signal: 4~20mA.DC, load 0~750Ω

Communication output: RS485 or HART

Electric connection: M20×1.5F, cable hole-DN10

Power supply: 90~220V.AC,24±10%V.DC

 LDGY-15 Electromagnetic Flow Meter

  Flow range

DN (mm)

Flow range (m3/h)

DN (mm)

Flow range (m3/h)

DN15

0.06~6.36

DN450

57.23~5722.65

DN20

0.11~11.3

DN500

70.65~7065.00

DN25

0.18~17.66

DN600

101.74~10173.6

DN40

0.45~45.22

DN700

138.47~13847.4

DN50

0.71~70.65

DN800

180.86~18086.4

DN65

1.19~119.4

DN900

228.91~22890.6

DN80

1.81~180.86

DN1000

406.94~40694.4

DN100

2.83~282.60

DN1200

553.90~55389.6

DN150

6.36~635.85

DN1600

723.46~72345.6

DN200

11.3~1130.4

DN1800

915.62~91562.4

DN250

17.66~176.25.

DN2000

1130.4~113040.00

DN300

25.43~2543.40

DN2200

1367.78~136778.4

DN350

34.62~3461.85

DN2400

1627.78~162777.6

DN400

45.22~4521.6

DN2600

1910.38~191037.6



Model selection

LDG



CEPAI Flow meter

Y

Pipeline type

C

Insertion type

structure

DN

DN6~DN3000



C1

PTFE F4

C2

 Polychloropree rubber

C3

Polyurethane rubber

C4

FEP F46

C9

Others

Lining



Material

D1

SS 316L

D2

Hastelloy B

D3

Hastelloy C

D4

Ti

D5

Platinum-iridium alloy

D6

Ta

D9

Others

Electrode material

M1

0.6MPa

M2

1.0MPa

M3

1.6MPa

M4

4.0MPa

M9

Others

PN

A1

4~20mA

A2

4-20mA+HAR

A3

Pulse output

A9

Others

Output signal

Additional items

F1

IP65

F2

IP67

F3

IP68

P1

24V  DC

P2

220V AC

Ed

Explosion-proof

Ei

Intrinsic safety type



Model example: LDGY-15C1D1M3A2F1P1Ed

Meaning: pipeline type electromagnetic flow meter, DN15, PTFE ling, SS316L electrode, nominal pressure 1.6MPa, output 4~20mA with HART, housing IP65, power 24V, explosion-proof type



Packaging & Shipping

 LDGY-15 Electromagnetic Flow Meter





Our Services

 LDGY-15 Electromagnetic Flow Meter

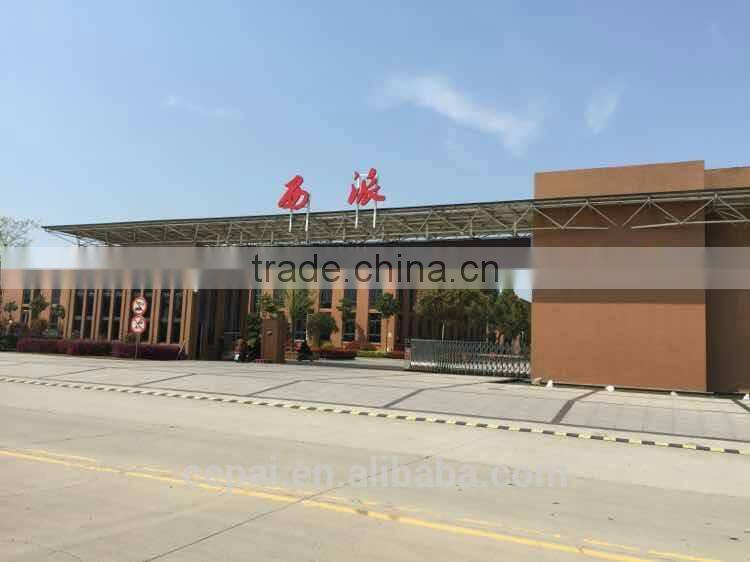

Company Information
