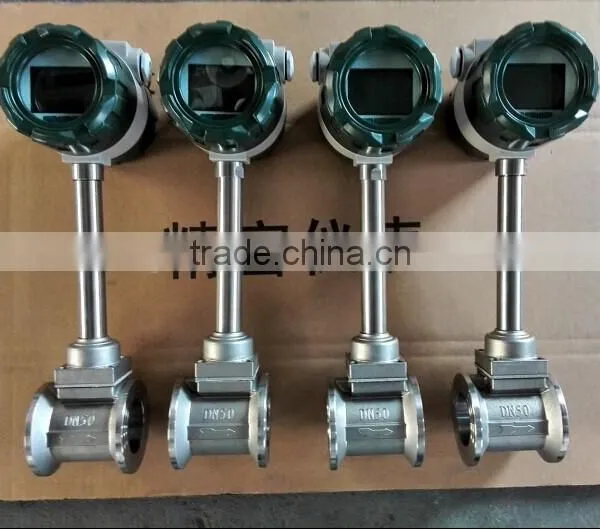

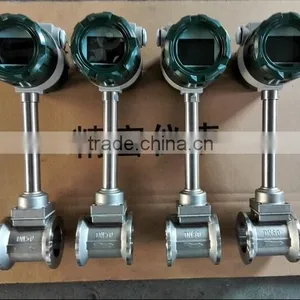

Help CenterVortex Flow Meter
Related Products
Brief Introduction:
CPW100 Vortex flow meter has little pressure loss, broad span range and high accuracy. It is not under influence of density, pressure, temperature and viscocity when measuring volumetric flow. It has no movable mechanical parts with high reliability and little maintenance.
Feature
1, No moving parts, long-term stability, simple structure, easy to install and maintain.
2, Sensor in pulse signal output, linear between its frequency and actual flow rate of medium, without zero-shift, high stable performance.
3, High accuracy, generally liquid’s accuracy is ±1.0%, the gas’ accuracy is ±1.5%
4, Wide measuring range, up to 1:20 under Reynolds number 2 x 104~7 x 106;
5, Small loss pressure is (about 1/4 to 1/2 of orifice meter), belongs to the energy saving flow meter.
6, Adopts circuit in eliminating interference, with some environmental vibration resistance performance
Specification
Execution standard |
Vortex Flow Sensor (JJG1029-2007) |
Meter Diameter(mm) |
DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200, 250, 300 |
Nominal Pressure |
1.6MPa, 2.5MPa, 4.0MPa ( customized) |
Accuracy/Range ratio |
Liquid: ±1.0%R; Gas & Steam: ±1.5%R; 1:10; 1:15; 1:20 |
Sensor Material |
SS304, SS316(L) |
Ambient Conditions |
Medium temperature: -40℃~ +70℃/+250℃/ +350℃; Atmospheric pressure: 86Kpa~106Kpa Ambient temperature: -20℃~+60℃; Relative humidity: 5%~90% |
Output |
Pulse ,4-20mA signal, RS485 communication, HART protocol |
Power Supply |
A: +24VDC±15%, ripple<=0.5%, for 4-20mA , pulse, RS485 output B: 1 set of 3.0 V10AH lithium battery, battery voltage: 2.0 V ~3.0 V |
Electrical connector |
Standard: Hirschman plug or 3-core wire cable; Explosion-proof : M20*1.5 thread |
Explosion -proof class |
ExiaIICT5 or ExdIIBT6 |
Protection class |
IP65 or higher(customized) |
