LWGY Turbine Flowmeter

LWGY Turbine Flowmeter thumbnail-1
LWGY Turbine Flowmeter thumbnail-2
LWGY Turbine Flowmeter thumbnail-3
LWGY Turbine Flowmeter thumbnail-4
LWGY Turbine Flowmeter thumbnail-5
LWGY Turbine Flowmeter photo-1

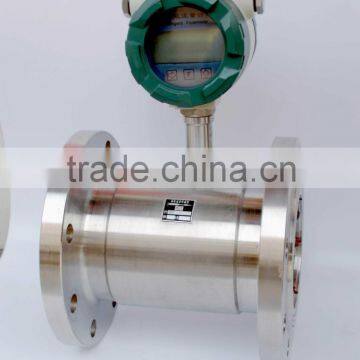

LWGY Turbine Flowmeter photo-2

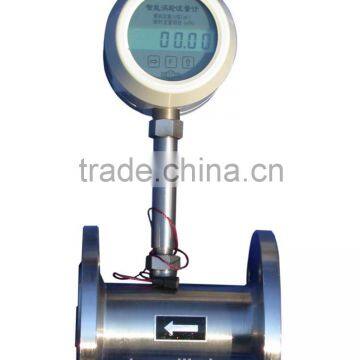

LWGY Turbine Flowmeter photo-3

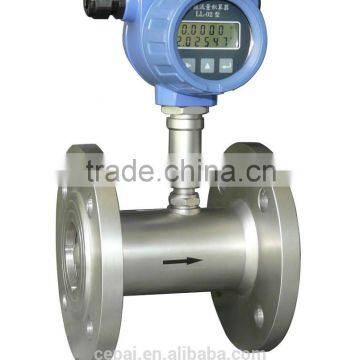

LWGY Turbine Flowmeter photo-4

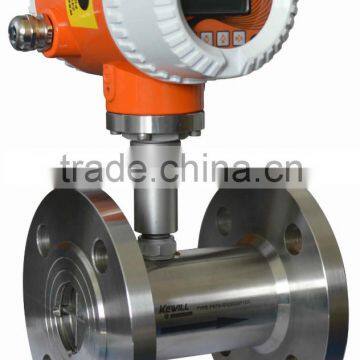

LWGY Turbine Flowmeter photo-5
US$ 145 - 3,710 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
CEPAI
Model Number:
LWGY-100
Contact Supplier Request Quote Chat Now
Cepai Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai and Jiangsu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name CEPAI
Model Number LWGY-100



Product Description



Flow range and pressure class

Diameter(mm)

Normal flow range(m3/h)

Expand flow range(m3/h)

Normal proof pressure(MPa)

Customized proof pressure (MP)(flange connection)

DN4

0.04~0.25

0.04~0.4

6.3

12,16,25

DN6

0.1~0.6

0.06~0.6

6.3

12,16,25

DN10

0.2~1.2

0.15~1.5

6.3

12,16,25

DN15

0.6~6

0.4~8

6.3,2.5(flange)

4.0,6.3,12,16,25

DN20

0.8~8

0.45~9

6.3,2.5(flange)

4.0,6.3,12,16,25

DN25

1~10

0.5~10

6.3,2.5(flange)

4.0,6.3,12,16,25

DN32

1.5~15

0.8~15

6.3,2.5(flange)

4.0,6.3,12,16,25

DN40

2~20

1~20

6.3,2.5(flange)

4.0,6.3,12,16,25

DN50

4~40

2~40

2.5

4.0,6.3,12,16,25

DN65

7~70

4~70

2.5

4.0,6.3,12,16,25

DN80

10~100

5~100

2.5

4.0,6.3,12,16,25

DN100

20~200

10~200

2.5

4.0,6.3,12,16,25

DN125

25~250

13~250

1.6

2.5,4.0

DN150

30~300

15~300

1.6

2.5,4.0

DN200

80~800

40~800

1.6

2.5,4.0



























































LWGY Turbine FlowmeterLWGY Turbine FlowmeterLWGY Turbine Flowmeter

Turbine flow meter model selection

LWGY Turbine Flowmeter

LWGY

Turbine flow meter



DN

DN4~200



F1

Thread connection

F2

Flange connection

F3

Clamp connection

F4

Insertion type connection

F9

Others

Connection

A1

Pulse output

A2

4~20mA

A3

4~20mA+HART

A4

4~20mA+RS485

A9

Others

Output

J1

1.0

J2

0.5

J3

0.2(need to negotiate)

Accuracy

Additional items

L1

Without local display

L2

instant and total flow

P1

Battery power supply

P2

24V DC

P3

220V AC

K1

Normal range

K2

Wide range

Ed

Explosion-proof

Ei

Intrinsic safety











 LWGY Turbine Flowmeter

Model explanation: LWGY-25F1A3J2L2P2K1ED

DN25mm, liquid, thread connection, output 4~20mA with HART, accuracy 0.5, display instant and total flow, power 24VDC, explosion-proof class Exd ii CT4

LWGY Turbine Flowmeter
