LZD measuring range
DN(mm) |
Flow range |
Pressuer loss kPa |
|||
Water L/h* |
Gas M3/h* |
Water |
air |
||
Common type |
Anticorrosion type |
Common type,Anticorrosion type |
|||
15 |
2.5~25 |
--- |
0.07~0.7 |
6.5 |
7.1 |
4.0~40 |
2.5~25 |
0.11~1.1 |
6.5 |
7.2 |
|
6.3~63 |
4.0~40 |
0.18~1.8 |
6.6 |
7.3 |
|
10~100 |
6.3~63 |
0.28~2.8 |
6.6 |
7.5 |
|
16~160 |
10~100 |
0.40~4.0 |
6.8 |
8 |
|
25~250 |
16~160 |
0.7~7.0 |
7.2 |
10.8 |
|
40~400 |
25~250 |
1.0~10 |
8.6 |
10 |
|
63~630 |
40~400 |
1.6~16.0 |
11.1 |
14 |
|
25 |
100~1000 |
63~630 |
3~30 |
7 |
7.7 |
160~1600 |
100~1000 |
4.5~45 |
8 |
8.8 |
|
250~2500 |
160~1600 |
7~70 |
10.8 |
12 |
|
400~4000 |
250~2500 |
11~110 |
15.8 |
19 |
|
40 |
500~5000 |
--- |
12~120 |
10.8 |
9.8 |
600~6000 |
---- |
16~160 |
12.6 |
16.5 |
|
50 |
630~6300 |
400~4000 |
18~180 |
8.1 |
8.6 |
1000~10000 |
630~6300 |
25~250 |
11 |
10.4 |
|
1600~16000 |
1000~10000 |
40~400 |
17 |
15.5 |
|
80 |
2500~25000 |
1600~16000 |
60~600 |
8.1 |
12.9 |
4000~40000 |
2500~25000 |
80~800 |
9.5 |
18.5 |
|
100 |
6300~63000 |
4000~40000 |
100~1000 |
15 |
19.2 |
150 |
20000~100000 |
--- |
600~3000 |
19.2 |
20.3 |
LZD Model Selection
LZD |
|
|||||||
Metal rotor flowmeter |
DN15~150 |
|
||||||
DN |
A |
bottom inlet and top outlet |
||||||
B |
top inlet and bottom outlet |
|||||||
C |
side inlet and side outlet |
|||||||
D |
left inlet and right outlet |
|||||||
F |
right inlet and left outlet |
|||||||
Sensor structure type |
R1 |
304 |
||||||
R0 |
316 |
|||||||
RL |
316L |
|||||||
RP |
PTFE |
|||||||
H |
Hastelloy C |
|||||||
Ti |
Titanium alloy |
|||||||
Rotor and tube material |
M1 |
Instant flow |
||||||
M2 |
LCD, both instant and totalized flow, power supply |
|||||||
M4 |
LCD+pointer,output 4~20mA |
|||||||
M5 |
Explosion-proof, LCD+pointer,output 4~20mA |
|||||||
Displayer |
Z |
Damping type |
||||||
T |
Clip type |
|||||||
H |
High-temperature |
|||||||
Y |
High-pressure |
|||||||
Sensor Additional function |
K1 |
Upper limit alarm |
||||||
K2 |
Lower limit alarm |
|||||||
K12 |
Upper and lower limit alarm |
|||||||
Indicator additional function |
I |
Intrinsic safety(ExiaIICT6) |
||||||
D |
Explosion-proof(ExdIICT6) |
|||||||
Ex |
When blow device is required, please negotiate with factory. |
|||||||
Model example:LZD-50.A.R1.M4.H.K2.D | ||||||||

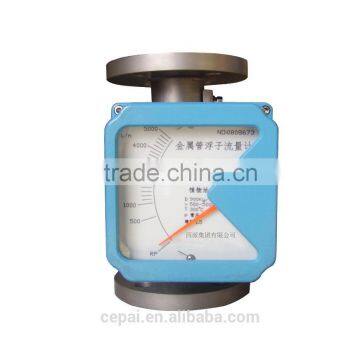

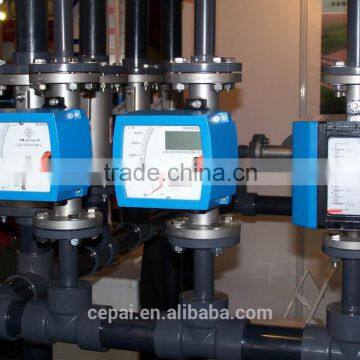

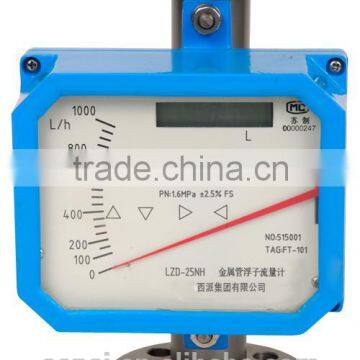

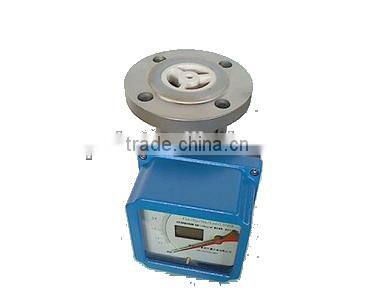

The LZD series metal rotor flow meter produced by cepai group, using the measuring principle of variable area, it is suitable for the measurement of liquid, gas. All metal structure, it has pointer type, electric remote type, corrosion type, pressure type, jacket type, explosion-proof type. With 0~10mA, 4~20mA standard analog signal output and site instruction, cumulative, digital communication, modify measurement parameters in site, function of different power supply modes, with a magnetic filter and special specifications
