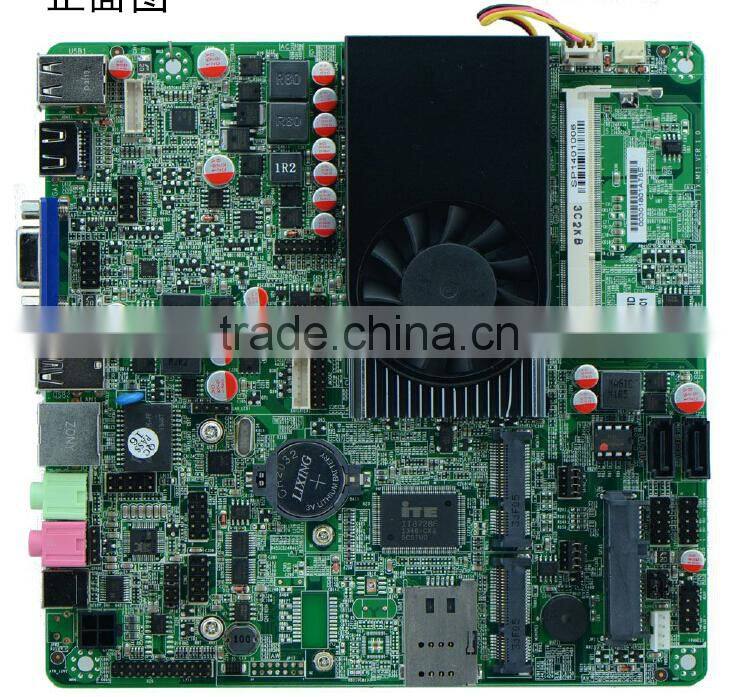

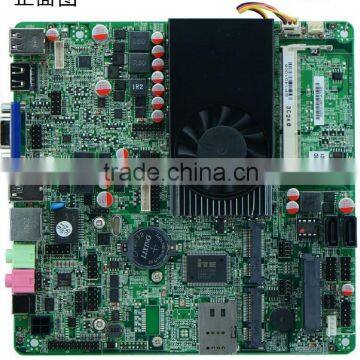

Low price Mini pc Mini - ITX VWM-1037ULY laptop Motherboard
CPU |
Integrated Intel ® 1037 u 22 nm 1.8 GHz dual-core processor TDP 17 w, compatible Intel ® 847, 1007 and I3, I5 and I7 processor (FCBGA1023)
|
Chipset |
Intel® HM65, Compatible with Intel ® NM70 chipset
|
Memory |
1 * notebook DDR3 max to 8GB
|
Power |
12v DC |
|
Storage
|
3*SATA 2.5 inches hard disk interface , Speed up to 6 GBPS |
|
Network
|
Integrated 1* RTL gigabit nics, supported sensei, PXE network
|
|
Sound
|
Integrated ALC662 6 channel high-fidelity audio controller, support MIC, Line_out, power amplifier
|
|
Display
|
Integrated Intel ® HD Graphics core Graphics, providing VGA, an LVDS, dual HDMI output, an LVDS support dual channel 24 bit, support separate display, double copy, double extension
|
|

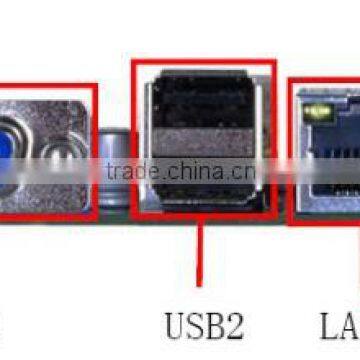

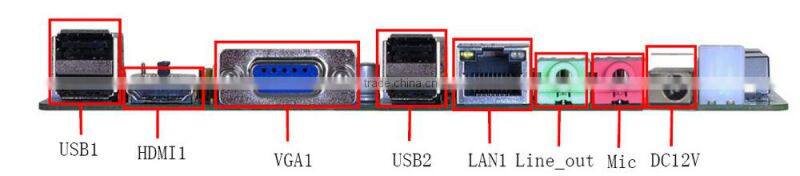

Backplane interface
|
1 * DC 12 v DC jack 1*VGA 1*HDMI 1 * RJ 45 port - 4 * USB 2.0 port 1 * audio output port 1 * audio input port
|
|
Temperature
|
Operating: -10℃~60℃ Storage:-20℃~70℃ Humidity :5~90%
|
BIOS |
AMI 16MB Flash ROM |

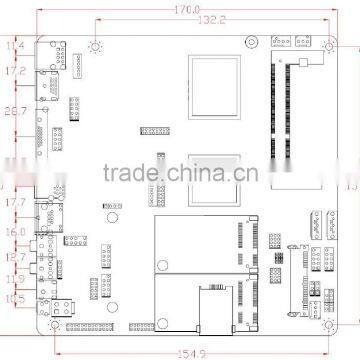

Size |
170mm * 170mm |
SATA |
1 * LVDS interface Support dual channel 24 bitlcd (double 8) 2 * 15 pin 1 * 2 * 8 pin JHDMI interface 1 * JVGA1 interface, the same as the DB15 signal 2 * 10 pin 2 * RS232 serial port, the pin 9 support functions of charged 1* LPT port printing 4 * USB 2.0 interface, support Mini - if PCIE USB signal two USB 1 * 6 pin PS / 2 mouse and keyboard interface
|
GUANGZHOU VINWO ELECTRONIC CO., LTD was established in 2008 , located in Tianhe area Guangzhou, our factory covers an area over 2300 square meters.
We specialized in produce,sales and provide good techniques support for Digital Signage Kiosk for Industrail Mini - Itx Motherboard , Information Kiosk, LCD video wall, LCD Television, Electronic Whiteboard for Education, Multimedia exhibition planning and Film production planning.
Q:How many years warranty?
A:Generally speaking, we wil guarantee freey 1 year.
Q:What's your mode of transportation?
A: In general , we will make shippment by DHL, FedEx, EMS,etc,and also according to your request.
Q:What‘ your
