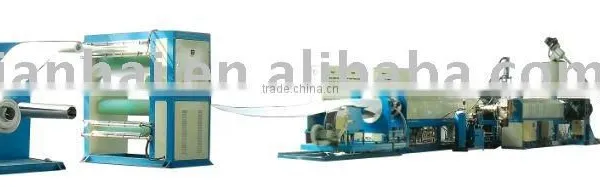

PSP Foam Sheet Extruder (TH-70/90)

Specifications

PSP Foam Sheet Extruder (TH-70/90)
1. PS foam sheet with smooth surface and shiny
2. Tianhai Brand
3. CE & ISO
4. 2011 new

PSP Foam Sheet Extruder (TH-70/90)adopts Gentian type double-stage series high foam technology.



The raw material is general polystyrene granule.



In the extruding process, Foam agent  is injected at high pressure.



After extruding , foaming, cooling, shaping and hauling off, it is winding to finished ps foam sheet rolls.

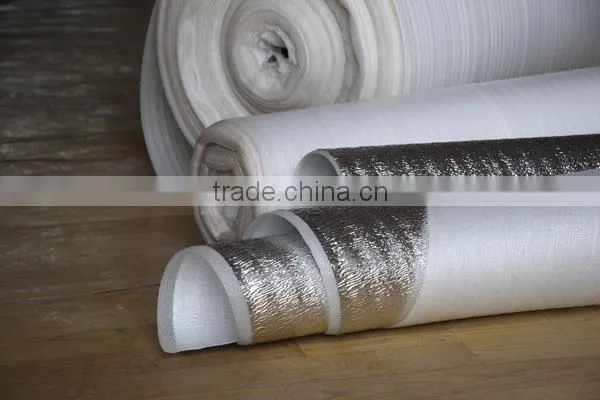

After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging vessals such as fast food box ,aquatic plate,supermarket tray ,cake tray , KT board ,instant noodle bowl ,foam tray etc.



It is widely used in the packing for food ,fruit ,advertising  industrial products and so on .



This equipment adopts high speed hydraulic filter changer which has steady feature, can realize change the filter immediately without stopping the machine.



The foaming shaping machine adopts PLC control, touch screen operation, easily to operate.



Technical data:

parameter	Unit	Model
		TH-70/90		TH-105/120	TH-110/130
Capacity	KG/H	70-100		150-230	250-280
Sheet thickness	MM	0.8-4		1-5	1-5
Sheet width	MM	480-1080		480-1080	500-1100
Foaming rate		10-22
Cooling method		wind cooling & water cooling
Cutting method		Single and double cutting			Double cutting
Butagas pressure	MPa	1.5
Installed power	KW	120		200	220
Installation Dimension	M	3×4×25		3×4.5×30	3×4.5×32
Power supply	380V 50HZ             220V 60HZ 3 phase  380V 50HZ      3 phase  220V 60HZ
