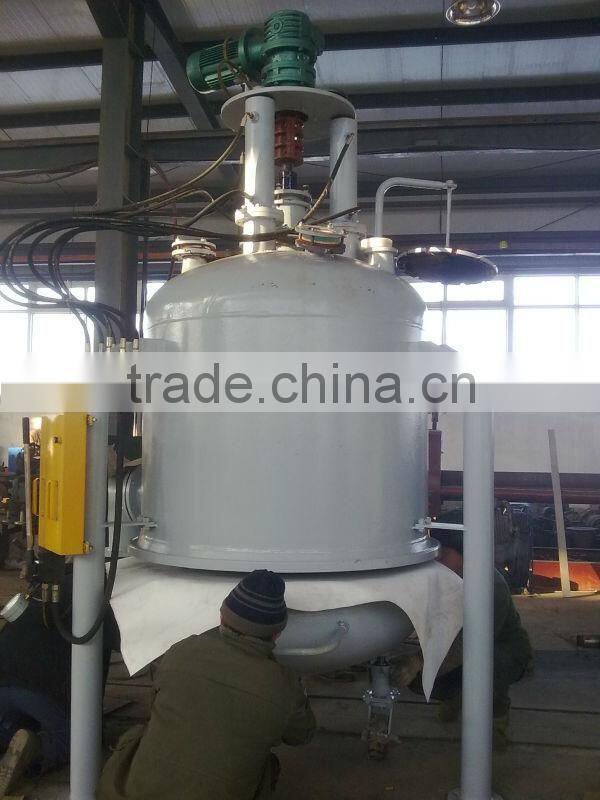

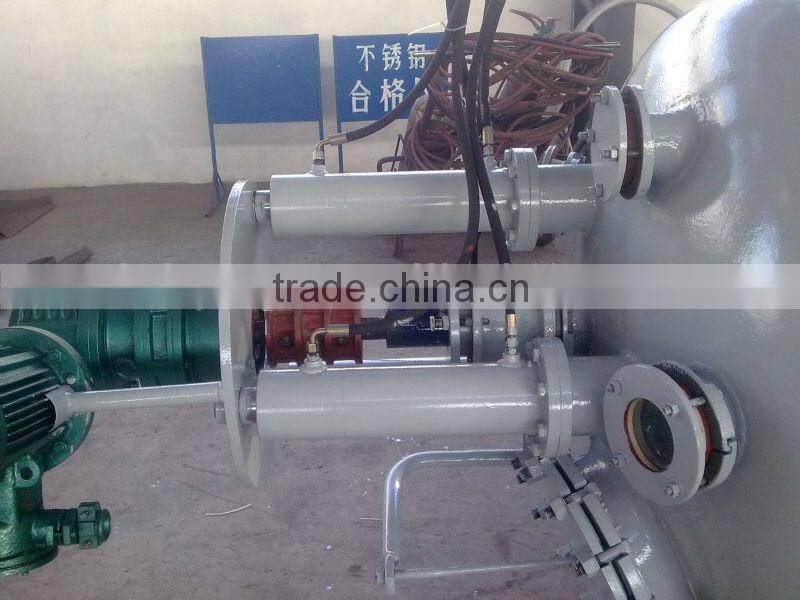

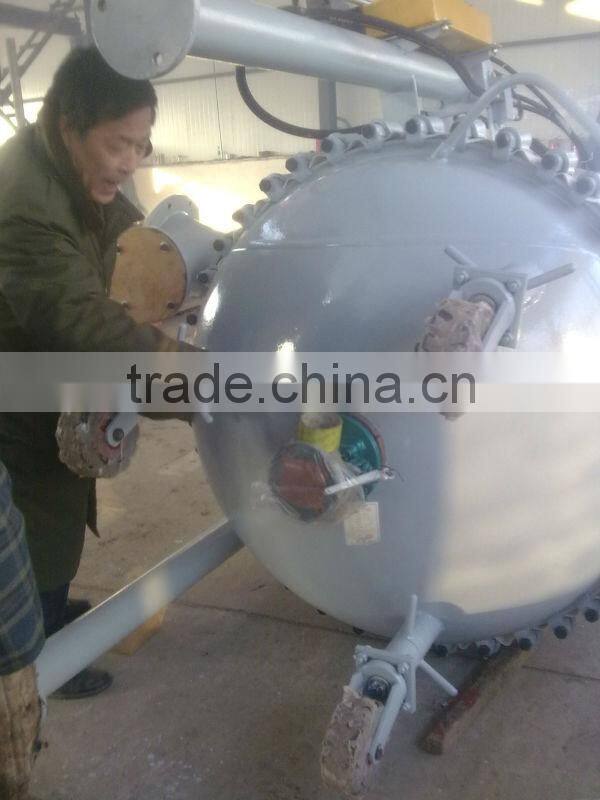

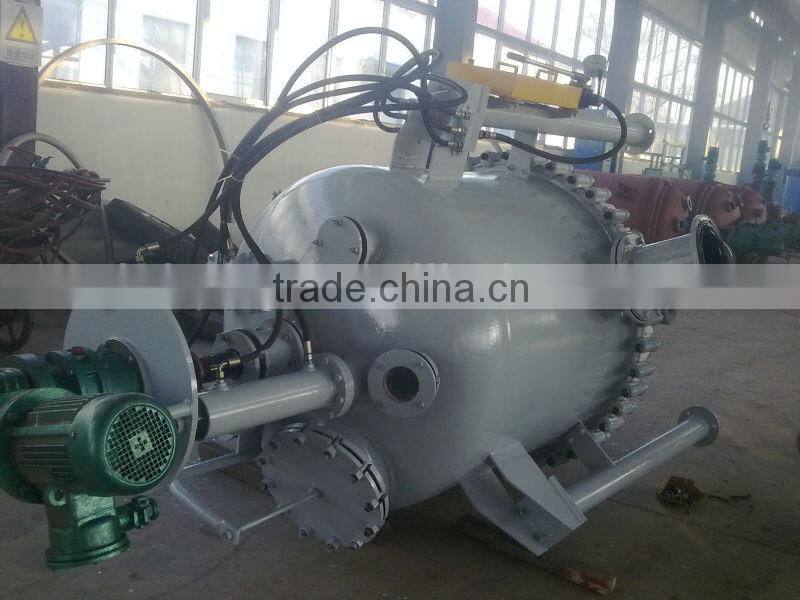

Glass Lined Agitation Vacuum Filter

Packing: Ocean transfer suitable strong steel frame plus clad plates

Specifications

hydraylic cylinder,head open,50-60000 liter,agitation or not,jacketed or coil or none,machanical sealing
Ready-to-Use



Questionnaire for Techinical Specificaiton
working pressure
working temperature
flame proof motor or not
Cycloid reducer or gear box reducer
jacketed or coil or none	if yes, pls info the speed (rpm)
jacketed or not
water, steam or oil heating
stuffing box/grandpush stuffing box
single surface machanical sealing
double surface machanical sealing
Working Volume	50-60000 liter



Glass Lined Reactor

Glass Lined Jacketed Reactor

Glass Lined Electric Heating Reactor

Glass Lined Storage Vessel

Glass Lined Tank

Glass Lined Heat Exchanger

Glass Lined Condenser

Glass Lined Agitation Vacuum Filter

Glass Lined Agitated Nutsche Filter

Glass Lined Agitator

Glass Lined Thermowell

Glass lined Accessories

Mechanical Sealing

stainless steel SS304 316L Reactor

Glass Lined Electric Heating Reactor

stainless steel SS304 316L Jacketed Reactor

stainless steel SS304 316L Storage Vessel

stainless steel SS304 316L Tank



Fabrication Code and Standard

Glass Lined Equipments are manufactured to the highest Quality Standard of workmanship and material. The Reactors are generally as per GB Standards 28136 and manufactured with 100% nondestructive examination (radiographic inspection, Penetrate testing, magnetic particle testing and ultrasonic inspection). All Clamps and Flanges Compile with GB / DIN Standard, Equipment are also specially designed and constructed to the client’s own specifications. Glass Lining Inspection and Testing are as per ISO standard by 20000 volt electric spark testing the Electrical properties of glass lining layer.



General Introduction of Pressure Vessels



we can manufacturevarious reactor and storage-tank of 50L - 20,000L. We also can manufacturevarious specifications of stainless steel reactor and storage tank. Glass-lined equipment is a kind of vessel whose main body is made of high quality carbon steel lined with special silicate glass by fritting as a high temperature. It has mechanical strength like steel-made vessel. It is irreplaceable with stainless steel, engineering plastic and other alloy steel materials under a certain medium and temperature at corrosion resistance. It is also indispensable and economic and good corrosion resistance equipment (for hydrolysis, neutralization, crystallization distillation evaporation and storage) in industries of production of pharmacy, chemical, dyestuff, organic synthesis, foodstuff, pesticide and defense.







Advance And Mature Reaction And Heat Exchanger Technology

* Highly efficient * Strong construction

* Durability * Superior functionality

* Economic efficient* easy install



Please contact for more technical data and dimensions as well as our products catalogue for your reference.

We, FHPEE Engineered Products Co., Limited a Chinese Professional Manufacture of Glass-Lined and 304, 316L stainless steel Reactors, vessels, heat exchanger and complicated process systemin Liaoning province, China. we hold passed ISO9001-2000 certificate for more then 8 years.
We manufacture and provide:
1) Glass Lined or 304, 316L stainless steel Reactor: 50L - 30, 000L.(Lab using: 5-30L; Electrical heating:50-3000L);
2) Glass Lined 304, 316L stainless steel Storage Tank/Receiver: 100L - 50, 000L;
3) Glass lined 304, 316L stainless steel Distiller: 300-6000L;
4) Glass Lined 304, 316L stainless steel Heat Exchanger/Condenser: Plate type/ Shell & tube type/Sleeve type etc;
5) Glass Lined 304, 316L stainless steel Double Cone Vacuum Dryer;
6) Glass Lined 304, 316L stainless steel Pump;
7) Glass lined Pipe & Fittings.

The Glass Lined Equipment manufactured by our plant are all:
1) Resistant to corrosion for acids and alkalis.
2) Withstanding mechanical stress.
3) Withstanding thermal shock.
4) Resistant to adhesion.
5) Favorable price, high quality and excellent after-sales service.

The technical details descriptions of our Glass lined Equipment Performance:

• Max. Design Pressure:1 Mpa
• Max. Design Temperature: -20 C degree To 350 C degree
• The Glass-lining Thickness: 1.0-2.8 mm
• Final Hydrostatic Test: 1.6 Mpa
• The High Voltage- sparking test to Glass-lining: 20KV
• Radiography Shell / Head: welding Spot / Full
• Penetrate testing Shell / Head: welding Spot / Full
• Magnetic particle testing Shell / Head: welding Spot / Full
• Ultrasonic inspection Shell / Head: welding Spot / Full
• Joint Efficiency: 0.85 / 1.0
• Corrosion Allowance 1.0
• Water, steam or oil heating
• Mechanical sealing
• Cycloid reducer or gear box reducer
• Flameproof motor with gear box
• Impeller/anchor/paddle and customized glass lined/stainless steel agitator

Original……………….P.R China

Brand…………………FHPEE (or OEM)

Type…………………..FHK,FHC

Voltage ……………….220/240/380 volt 50/60 Hz

Power………………….1.0-20 Kw

Dimension(L*W*H)…….According Specific Requirement/Order, OEM service

Weight…………………50- 15000 Kgs

Qualification………….FAT- Chinese government Special equipment inspection institute

Guarantee Period……13 months

We also have Glass lined Chemical Reactors, Storage Tanks, Distillers, Heat Exchangers, Pipes and Fittings etc.



According Specific Requirement/Order, OEM service



Loading port: Dalian port, China

Packing: Ocean transfer suitable strong steel frame plus clad plates

Delivery timeline: 20-60 days to dispatch

Equipment Approvable by: FAT- Chinese government Special equipment inspection institute

We also done export our products to Asian country, such as high-request area, Taiwan area, Japan, South Korean for several years, so, we know the India market well, kindly, feel free to contact us, and send us your requirement. We confident offer you the more competitive price as well as quality provable as best services!



Please contact for more technical data and dimensions as well as our products catalogue for your reference.



We’re remaining at your disposal for any additional quest.
