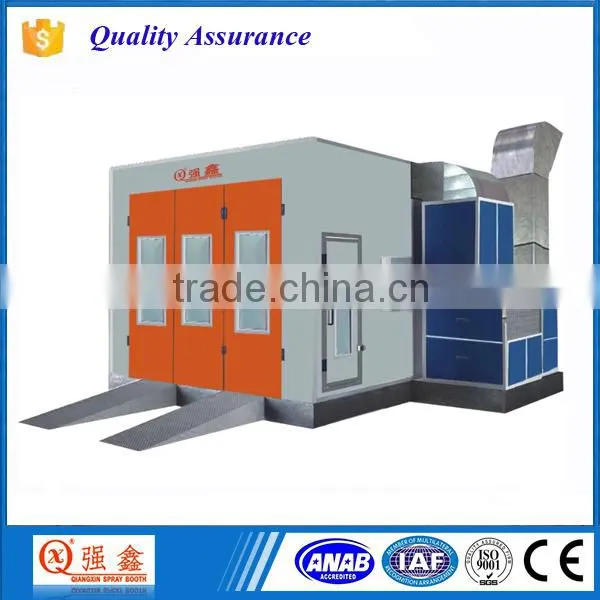

Used Auto Paint Booth With Basement(electric Heating Type)

Name: Used Auto Paint Booth With Basement(electric Heating Type)
Brand: Qiangxin
SKU: 132620003
Availability: InStock

US$ 7,800 - 9,800 MOQ: 1 Set

Key Specifications

Power:

38.5kw

External Size:

7000*5500*3300mm

Internal Size:

6900*3900*2650mm

Guangzhou Qiangxin Electromechanical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Power 38.5kw

External Size 7000*5500*3300mm

Internal Size 6900*3900*2650mm

Voltage 380v/3phase/50hz

Certification CE

No Load Speed 0.25m/s

Place of Origin Guangdong, China

Brand Name Qiangxin

Model Number QX1000

Qiangxin professional spray booth factory has more then ten years experience on manufacturing and exporting kinds of spray booth.

Product Description

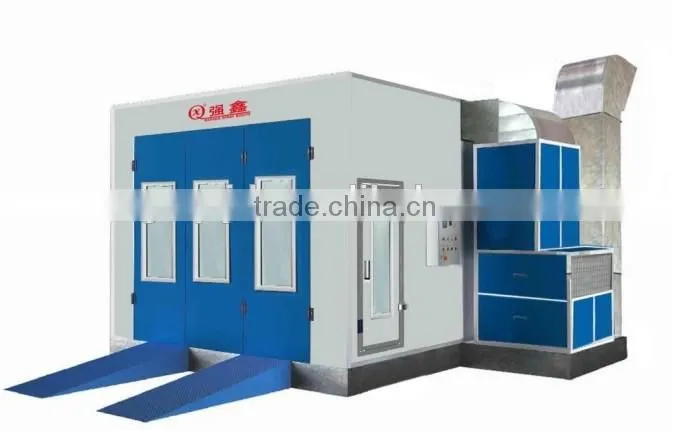

used auto paint booth with basement(electric heating type)

Parameter for QX1000

Diemension	Internal Size:690039002650mm	External Size:700055003300mm
Doors	Entrance door :Aluminum alloy binding framework (thickness 1.8mm),1 set folding door :30002600mm(WH)
	Access door :1 set hung side door:7001700mm(WH)
Wallboard	50mm EPS (epispastics polystyrene ) insulation material with 0.426 two side steel panel
Lighting system	Upper oblique 45°,8 group *3 pcs =24pcs ,16w led energy saving lamps
Cabinnet Setting	Intake air from upside ,downside exhaust wind ,frame made tube 50*50mm ,0.8mm galvanized plate for body plate
Ventilation system	2 pcs double inlet Siemens technology dedicated fans :single parameter :YOW5.6m.4kw .12500m³/h
Heating system	30 pcs infrared carbon fiber lamps ,800W per piece ,6 piece one group .The operating temperature 50°-75°.Max temperature 80°
Filtration system	Air inlet with prefilter ,ceilling equiped with high effciency filter ,can effectively filter the 5PM dust articles .With three layers of carbon filter ,plus an environmental protection cabinet
Roof	Galvanized steel panel

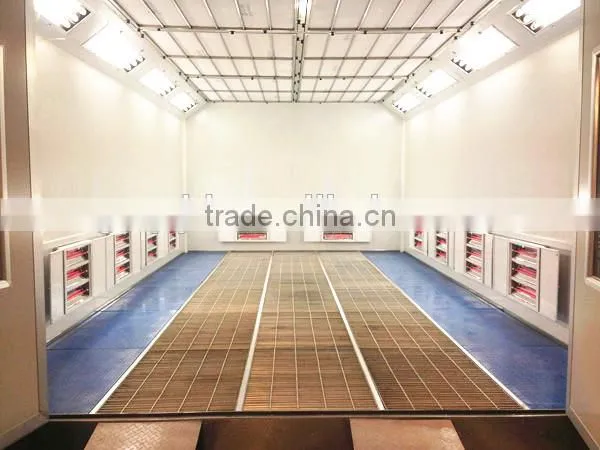

Basement	Galvanized grille and channel steel is convex ,column is made of channel steel , dimond plate using high performance anti-rust treatment .2 ramps :2000630mm(LW)

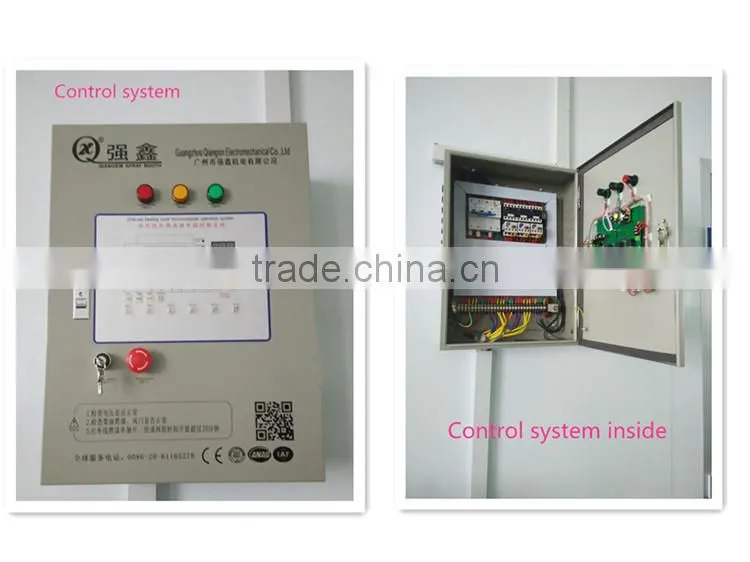

Control system	Painting ,baking ,temperature controller , breakdown indicator , power switch ,emergency stop switch and time setting
Voltage frequency	380V 50HZ
Light intensity	More than or equal to 1000luxes
Air flow speed	More than or equal to 0.25m/s
Total power	33KW
