We are professional leading factory in Guangzhou,China.
More than 10 years in manufacturing car paint spray booths.
We also sale automobile repair &maintenance equipments.
CE approved lnfared Spray Booth(Standared Type)
Advantages:
1.Factory direct sale
2.One year warranty,100% inspection before delivery.
3.Advanced microcomputer control system
4.Fast infrared lamps drying system(Diesel or gas drying can be customized)
5.Installation instruction service
6.Experienced in shipping.
We have different kinds of spray booths for automobile,wood,metal etc...
Welcome to consult Linda at one to know more details! QQ:2851631173

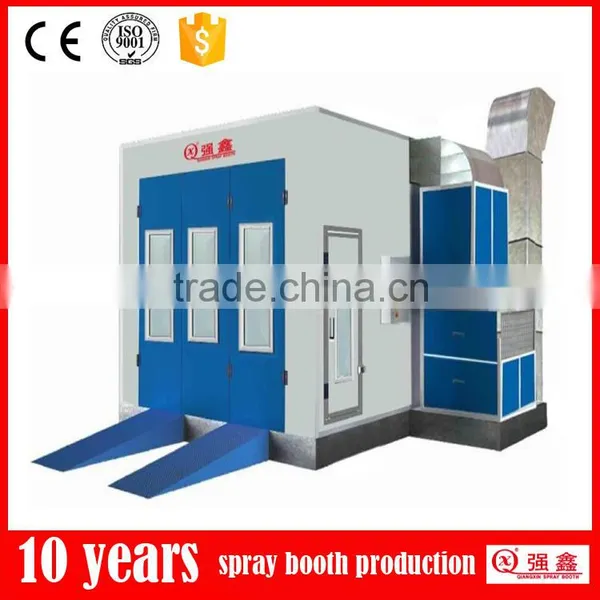

CE approved lnfared Car Spray Booths
| Inside Dimension | 6900×3900×2650(mm)(L×W×H) |
| Outside Dimension | 7000×5500×3300(mm)(L×W×H) |
| Entrance Door | Aluminum alloy binding framework(thickness:1.8mm),1 set foiding door size:3000×2600(mm)(W*H) |
| Personal Door | 1 set side hung door:700*1700mm(W*H) |
| Wallboard | 50mm EPS(epispastic polystyrene) insulation material with S=0.426 two side steel panel |

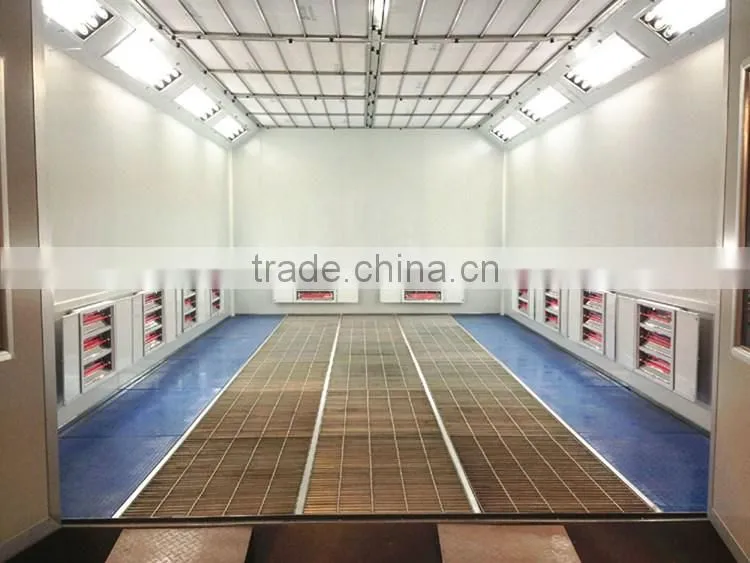

| Lighting System | Lamp boxes are 45° fixed on upper two side,with 8 groups*3pcs=24pcs 16w energy saving LED lamp |
| Air lntake and Exhaust System |
With 2pcs environmental intake air blowers,Total parameter:YOW5.6m.1.5Kw.25000m³/h With 1pcs centrifugal air blowers,Total parameter:YOW5.6m.4KW.12500m³/h |
Cabinet Setting |
Intake air from upside,downside exhaust wind.Frame is made of tube 50*50mm,body plate is made of gavanized plate(thickness:0.8mm) |
| Air duct | Made of Galvanized plate(thickness is 0.8mm),700*700*1000,3 pcs straight,1 pcs ellbow |

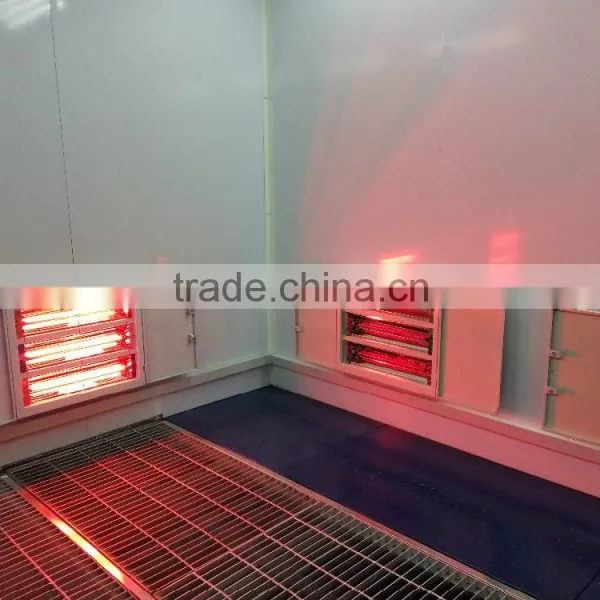

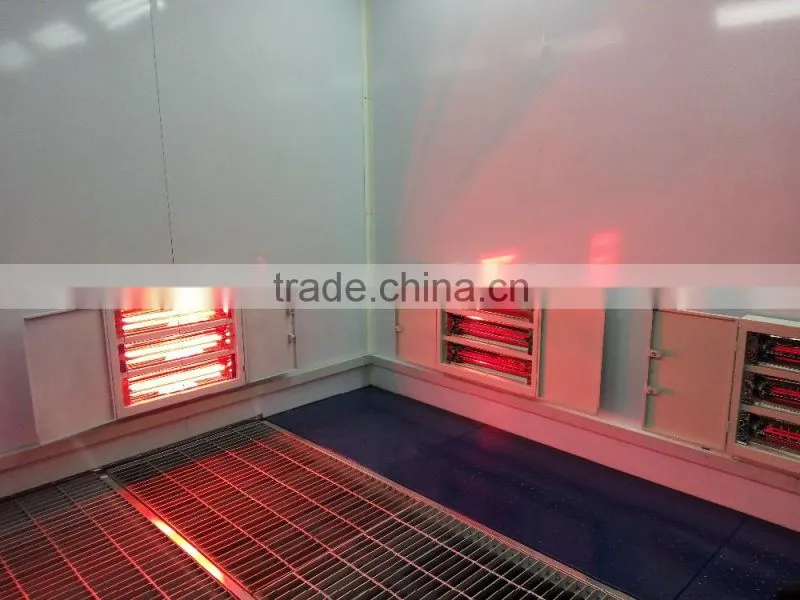

| Heating System | 30 pcs of infraaed carbon fiber heating lamps,1000W/piece.The operating temperature:50℃-75℃. Max. temperature:80℃ |
| Filtration System |

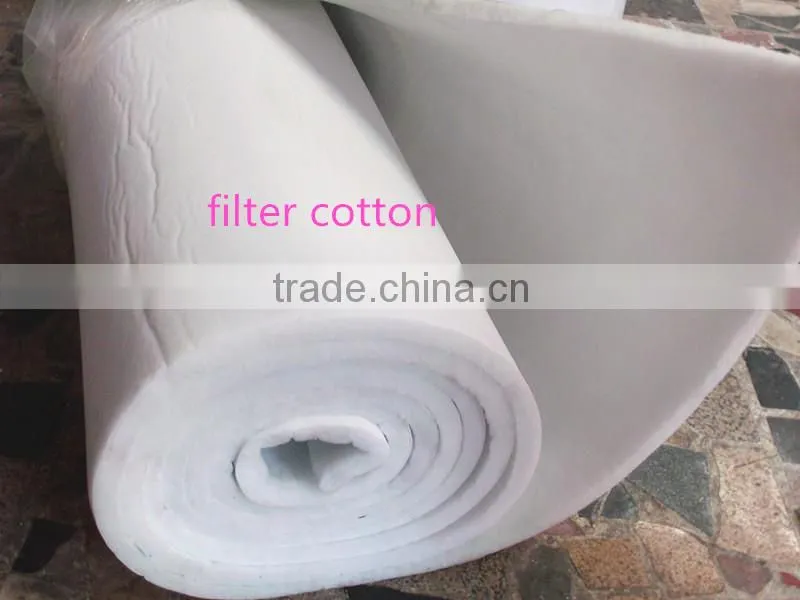

Environmental filter: 1.Air inlet with prefilter 2.Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles |
| Roof | 50mm EPS (epispastics polystyrene)insulation material with S=0.426 two side steel panel |
| Basement |
High performance antirust treatment grille galvanized and chevked plate(2 rows of checkered plate,3 rows of grilles) Channel steel column 2pcs antirust treatment inside ramps:1500*2800mm(L*W) |
| Control System | Microcomputer control system,Painting,Baking,Temprature Controller,Light Switch,Breakdown Indicator,Power Switch,Energency Stop Switch,and Time Setting |
| Voltage Frequency | 380V 50HZ |
| Light lntensity | 1000luxes |
| Air Flow Speed | 0.25m/s |
| Total Power | 38.5KW |
Welcome to contact me more details for our spray booth! Mobile:+86-13678922461(Linda)
