We are professional leading factory in Guangzhou,China.
More than 10 years in manufacturing car paint spray booths.
We also sale automobile repair &maintenance equipments.

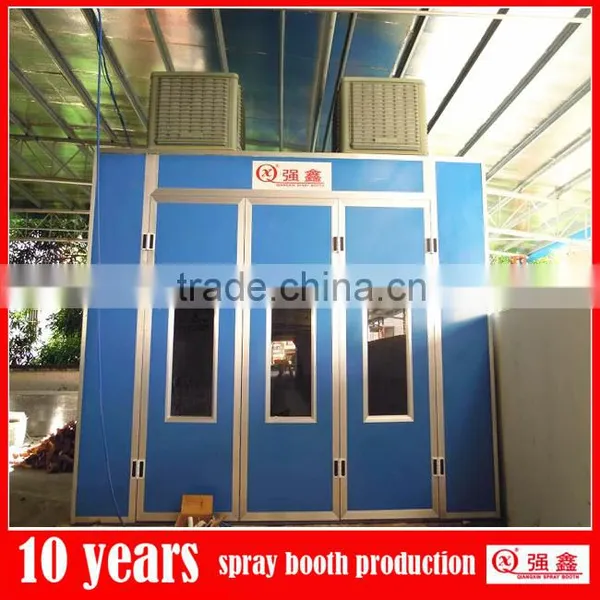

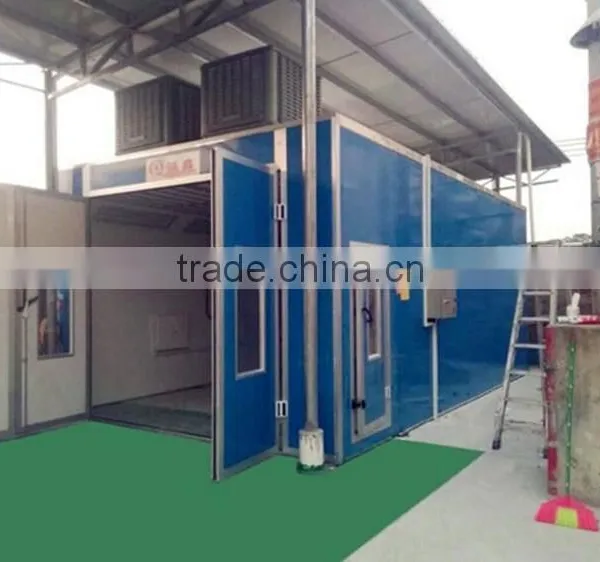

QX500A environmental cheap spray booths
1. Qiangxin or Xin Guang Li own brand
2. Direct factory located in Guangzhou city
3. Luxury infrared heating
4. Environmental Setting
5. LED lights for good energy saving effect
6. provide dust free painting room and good performance in drying.
7. QX3000A has received good comments from Germany,Nigeria,Tanzania,Angola,Cameroon, South Sudan,Saudi Arabia,Ghana,Turkey,Sri Lanka,U.A.E,Mauritius,Bulgaria,Philippines,Peru,South Africa,Malaysia,Singapore,India,Australia,New Zealand,Saudi Arabia,Qatar ect
Parameter
| Inside Dimension | 6900×3900×2650(mm)(L×W×H) |
| OutsideDimension | 8200×4000×4000(mm)(L×W×H) |
| Entrance Door |
Aluminum alloy binding framework(thickness: 1.8mm), 1 set folding door size: 3000*2900(mm)(W*H) |
| Personal Door | 1 set side hung door:700*1700mm(W*H) |
| Wallboard | 50mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel |
| Lighting System | Lamp boxes are 45° fixed on upper two side,with 8 groups*3pcs=24pcs 14w LED engergy saving light |
| Air Intake and Exhaust System |
With 2pcs environmental air blowers,Total parameter:YOW5.6m.2*1.5kw.25000m3/h With 1pc centrifugal air blower,Single parameter:YOW5.6.4w.12500m3/h |
| Cabinet Setting |
Intake air from upside,downside exhaust wind. Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness:0.8mm). |
| Air duct | Made of Galvanized plate(Thickness is 0.8mm),700*700*1000,3 pcs straight,1 pc elbow |
| HeatingSystem |
30 pcs of infrared carbon fiber heating lamps.800w/pc,Total power:24kw. The operating temperature:50°C-75°C.Max. temperature:80°C |
| Filtration System |
3 filters: 1). Air inlet with prefilter. 2). Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles. 3). With 3 layers activated carbon filter The Air filtration efficiency is more than or equal to 98,its Exhaust emission reaches the national standard.
|
| Roof | Galvanized steel panel |
| Basement |
High performance antirust treatment grille galvanized and checkered plate(2 rows of checkered plate,3 rows of grilles). Channel steel column.2pcs antirust treatment ramps :2000*630mm(W*H) |
| Control System | Painting , Baking, Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, and Time Setting |
| Voltage Frequency | 380V 50HZ |
| Light Intensity | 1000luxes |
| Air Flow Speed | 0.25m/s-0.3m/s |
| Total Power | 32kw |
Standard Packing&Loading
Production Flow

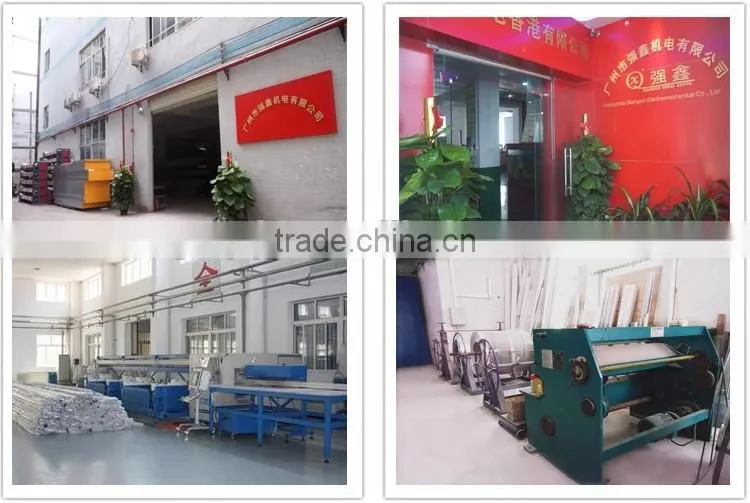

Professinal Factory
Qiangxin Supplying Product Catalogue
- Car Spray Booths,bus spray booths,furniture spray booths,high temperature baking ovens,polishing booths
- Two-post car lift,Four-post car lift,Scissor type car lift
- 3D Wheel Alignment machine
- Car collision repair bench/Frame straightening machine
- Welding machine
- Tire changer,wheel balancer
- Spray gun
- Air compressor,screw compressor
- other machines
