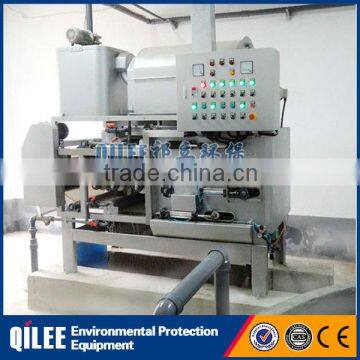

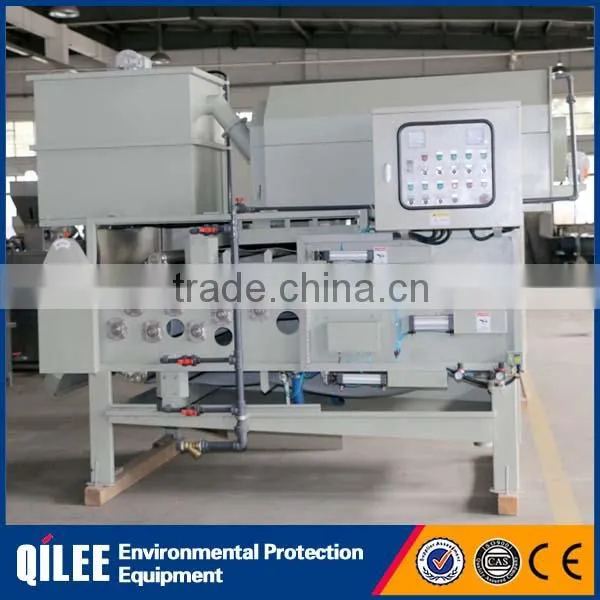

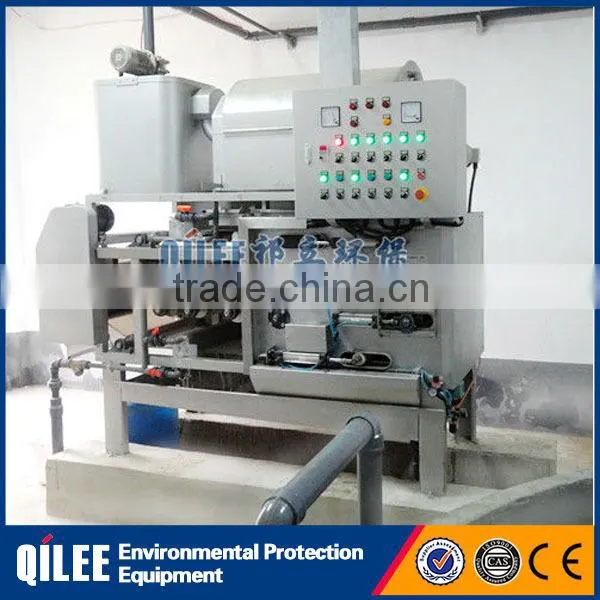

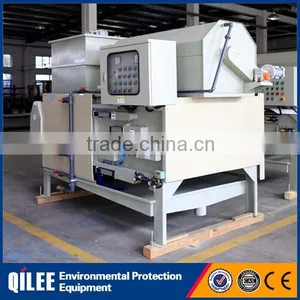

Food Plant waste water treatment Separating Sludge Dewatering machine
Product Details of sludge dewatering machine :
sludge dewatering machine
the air cylinder
the bearings
the filtration belts
- SS304 stainless steel for the machine.
High-grade filter cloth imported from Europe and United States.
Low power,low rotate speed and low nosie,level of noise ≤ 75dB(A)
Offset correction use pneumatic type.Stable machine operation.
Tandem type safety sense and emergency stop device,more safe for your operation.
The whole system use humanization design,easy to operate and maintain.
Technical Data of sludge dewatering machine :
| Model | QTB-500 | QTB-750 | QTB-1000 | QTB-1250 | QTB-1500 | QTB-1500L | QTB1750 | QTB-2000 | |
| Belt Width(MM) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 1750 | 2000 | |
|
Treating Capacity( m³/hr ) Inlet Consistency(ss0.5~1.5%) |
3.0~5.2 | 4.5~7.5 | 6.5~10.5 | 7.5~12.5 | 9.5~16 | 12~20.5 | 15~24.5 | 18~30 |
|
| Dried Sludge(kg/hr) | 45~78 | 68~113 | 98~158 | 113~188 | 143~240 | 180~308 | 225~368 | 270~450 | |
| Water Content's Rate(%) | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | 63~84.5 | |
| Power Consumption (HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1 | 1 |
| Disposal Agitaor Motor | 1/4 | 1/4 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | 1 | |
| Drum Thickener | 1/4 | 1/4 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 | |
| Lower Collecting Tray For Pressed Filtrate | Yes | Yes | Yes | Yes | Yes | Yes | No | No | |
| External Dimensions (Reference) (MM) | L | 2600 | 2600 | 2600 | 2600 | 2700 | 3300 | 3300 | 3400 |
| W | 1050 | 1300 | 1550 | 1800 | 2150 | 2150 | 2400 | 2650 | |
| H | 2150 | 2350 | 2350 | 2350 | 2500 | 2500 | 2500 | 2600 | |
| Base Dimension(L1*W1,MM) | 2100*830 | 2100*1080 | 2100*1330 | 2100*1580 | 2100*1830 | 2450*1860 | 2580*2110 | 2580*2360 | |
| Reference Weight(Kg) | 830 | 1000 | 1210 | 1450 | 1850 | 2200 | 2450 | 2850 |
|
Treatment Flowchart of sludge dewatering machine :
Application Fields of sludge dewatering machine :
| Sort of Sewage | Type of Slurry |
Slurry Inlet Consistency (ss %) |
Polymer Power Consumption (Kg/Ton D.S.) |
Water Contents Rate of Slurry Cake (%) |
| Paper&Pulp Sewage | Chemical Slurry | 2.0-5.0 | 2.0-4.0 | 64-78 |
| Activate Slurry | 1.5-3.0 | 3.0-5.0 | 75-84 | |
| Printing,Dyeing Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 76-84 |
| Activate Slurry | 1.0-2.0 | 3.0-5.0 | 80-85 | |
| Leather&Tannery Sewage | Chemical Slurry | 2.5-4.5 | 3.0-5.0 | 74-83 |
| Activate Slurry | 1.5-2.5 | 4.0-6.0 | 78-85 | |
| Elecro-Planting Sewage | Chemical Slurry | 1.5-2.5 | 3.0-5.0 | 72-84 |
| Metal-Processing Sewage | Chemical Slurry | 2.0-4.0 | 3.0-5.0 | 66-84 |
| Stone&Mine Sewage | Chemical Slurry | 5.0-10 | 3.0-5.0 | 45-75 |
| Food&Beverage Sewage | Activate Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Livestock Sewage | Anaerobic Fermentation | 3.0-6.0 | 5.0-8.0 | 75-83 |
| Butchery Sewage | Admixture Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 75-85 |
| City Mixed Raw Sewage | Surplus Slurry | 0.8-1.5 | 4.0-6.0 | 78-85 |
| Admixture Slurry | 1.5-2.5 | 3.0-5.0 | 72-85 | |
| Excretion Sewage | Digestion Surplus Slurry | 1.0-3.0 | 4.0-6.0 | 74-85 |
| Water Purifying Sewage | Chemical Slurry | 1.5-4.5 | 3.0-5.0 | 64-82 |
Engineering project of sludge dewatering machine:
About Us:
Shanghai QILEE is a company integrates the research and development, production and marketing of environmental protection equipment. It adheres to the corporate philosophy of “Quality first, Sustainable operation” since its foundation in 2006. It implements development strategic of “professionalization, scale and internationalization”. Shanghai QILEE keeps technical innovations constantly and provides superior products to meet the requirements of customers and market.
Shanghai QILEE brings in advanced foreign technology and originally designs and manufactures sludge dehydrators, automatic dissolvers, oil skimmers and agitators.
With our precious experience and professional knowledge, we will provide our best pre-sale and after-sale service for you.Work together with us, you will find enjoyable and successful business is so easy.
Our company for ten years as part of the customer :
How to order:
Warm Tips:
A:How to select the right sludge dewatering machine?
A1:How about your sludge treatment capacity per hour(m3/hr)?
A2:How about your solid content or water content(%)?
A3:What is the character of your sludge?
A4:How about your dried sludge(D.S.)?
A5:How about your water content of sludge cake(%)?
FAQ:
Q:What’s the application scope of sludge dewatering machine?
A:It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.
Q:What’s the material of sludge dewatering machine?
A:It is SUS304.
Q:What’s the equipment used together with belt filter press?
A:Sludge pump, polymer dosing pump, washing pump, air compressor.
Q:How to choose the model?
A:Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
