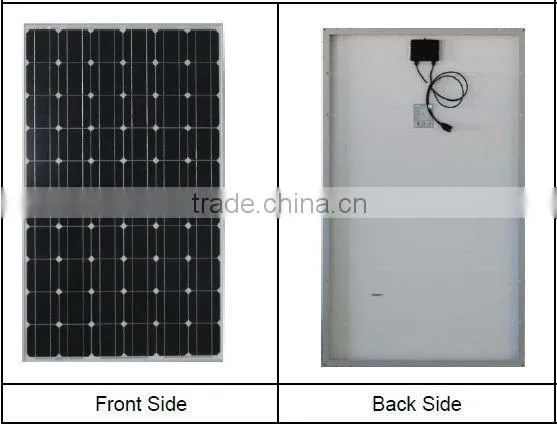

TUV MCS CEC Certificated Monocrystalline 245W Solar Panel

Name: TUV MCS CEC Certificated Monocrystalline 245W Solar Panel
Brand: OSDA
SKU: 132584397
Availability: InStock

US$ 0.62 - 0.66 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OSDA

Model Number:

ODA245-30-M

Ningbo Osda Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OSDA

Model Number ODA245-30-M

Material Monocrystalline Silicon

Size 1640x992x45mm

Number of Cells 60pcs(6x10)

Max. Power 245W

Specifications

solar panels for sale
OSDA solar provide best quality product to our customers with competitive price and excellent service

solar panels for sale solar panels for sale solar panels for sale

Specifications

Model Type	ODA255-30-M	ODA250-30-M	ODA245-30-M	ODA240-30-M	ODA235-30-M	ODA230-30-M
PeakPower(Pmax)	255	250	245	240	235	230
Maximum Power Voltage(Vmp)	30.54	30.48	30.42	30.36	30.32	30.3
Maximum Power Current(Imp)	8.35	8.20	8.05	7.91	7.75	7.59
Open Circuit Voltage(Voc)	37.27	37.2	37.1	37.02	36.98	36.95
Short Circuit Current(Isc)	9.03	8.96	8.80	8.64	8.47	8.3
Module Efficiency (%)	15.7	15.4	15.1	14.8	14.5	14.2
Maximum System Voltage (V)	1000
Maximum Series Fuse Rating (A)	15
Power Tolerance	0~+3%
Pmax Temperature Coefficients (W/°C)	-0.435%
Voc Temperature Coefficients (V/°C)	-0.35%
Isc Temperature Coefficients (A/°C)	0.043%
NOCT Nominal Operating Cell Temperature (°C)	47±2
Operating and Storage Temperature (°C)	-40~+85
Test Condition (STC)	1,000W/m2;AM 1.5;25°C

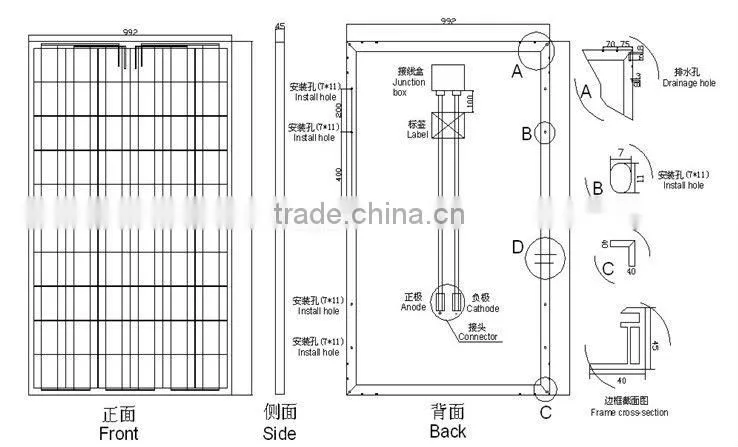

Mechanical characteristics & Packaging

Cell Type	mono-crystalline 156x156mm
No. of Cells	60(6x10)
Dimensions	1640x992x45mm
Weight	19.3kgs
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP65 Rated
Output cables	TUV 1X4mm²,length 90cm
Quantity/pallet	23pcs
Loading Quantity	625pcs / 40ft
