TUV MCS CEC Certificated Monocrystalline 145W Solar Panel

Name: TUV MCS CEC Certificated Monocrystalline 145W Solar Panel
Brand: OSDA
SKU: 132584411
Availability: InStock

US$ 0.62 - 0.66 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

OSDA

Model Number:

ODA145-18-M

Ningbo Osda Solar Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name OSDA

Model Number ODA145-18-M

Material Monocrystalline Silicon

Size 1482x678x35mm

Number of Cells 36pcs(4x9)

Max. Power 145W

Specifications

OSDA soar dedicate to provide best quality product to our customers with competitive price and excellent service.

panels solar panels solar panels solar

Specifications

Model Type	ODA150-18- M	ODA145-18- M	ODA140-18- M	ODA135-18-M	ODA130-18-M
PeakPower(Pmax)	150	145	140	135	130
Maximum Power Voltage(Vmp)	18.43	18.28	18.1	18.03	17.67
.Maximum Power Current(Imp)	8.14	7.93	7.73	7.49	7.36
Open Circuit Voltage(Voc)	22.48	22.29	22.07	21.99	21.55
Short Circuit Current(Isc)	8.87	8.67	8.45	8.18	8.04
Module Efficiency (%)	14.9	14.4	13.9	13.4	13.0
Maximum System Voltage (V)	1000
Maximum Series Fuse Rating (A)	15
Power Tolerance	0~+3%
Pmax Temperature Coefficients (W/°C)	-1.171
Voc Temperature Coefficients (V/°C)	-0.1437
Isc Temperature Coefficients (A/°C)	0.0047
NOCT Nominal Operating Cell Temperature (°C)	47±2
Operating and Storage Temperature (°C)	-40~+85
Standard Test Condition (STC)	1,000W/m²;AM 1.5;25°C

Mechanical characteristics & Packaging

Cell Type	mono-crystalline 156x156mm
No. of Cells	36(4x9)

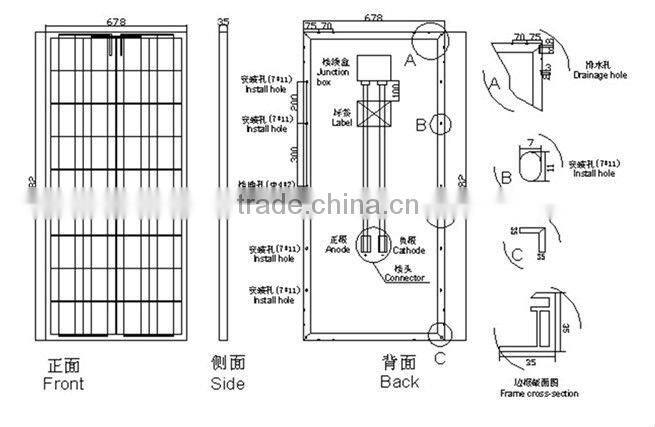

Dimensions	1482x678x35mm
Weight	12.1kgs
Front Glass	3.2mm high transmission,low iron,tempered glass
Frame	Anodized Aluminium Alloy
Junction box	IP65 Rated
Output cables	TUV 1X4mm²,length 90cm
Quantity/pallet	50pcs/pallet or 42pcs/pallet
Loading Quantity	894pcs / 40ft
