City mixed raw sewage sludge treatment belt filter press
- 20 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- excavator diesel engine Oil filter element 9N-3367
- 10g 7g ozone generator for lab waste water treatment
- PW USP Purified Water Generation Systems For Making Pill Form Drugs
- SS316L Pharma Purified Water System FDA USP cGMP GMP Standard
- Water Filters Systems Sand Carbon Purification RO To Drinking Water Treatment Machinery
- BPE SS Pipeline Pharmaceutical Water Systems With Diaphragm Valve
Product Details
Place of Origin: | Shanghai, China | Brand Name: | QILEE | Model Number: | QTA-750 |
Product Description

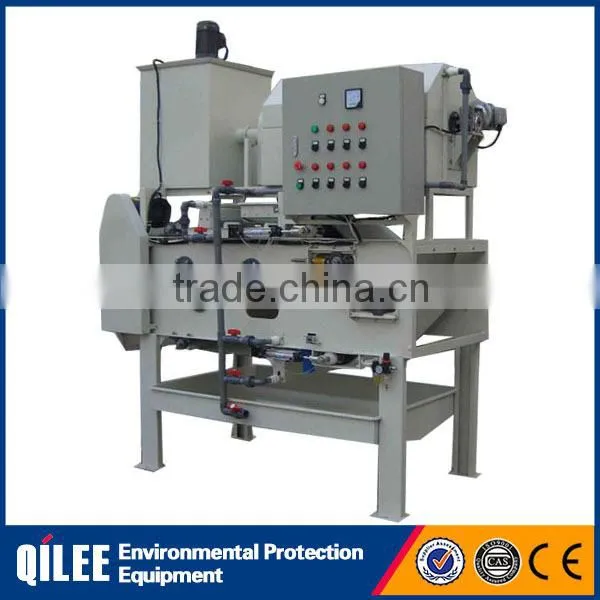

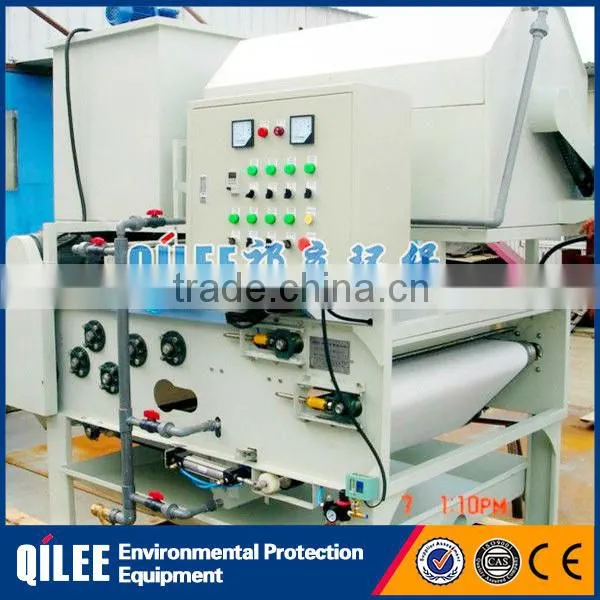

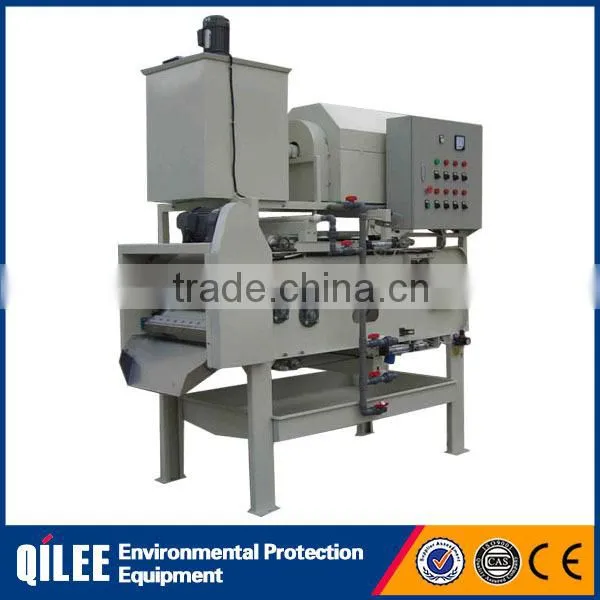

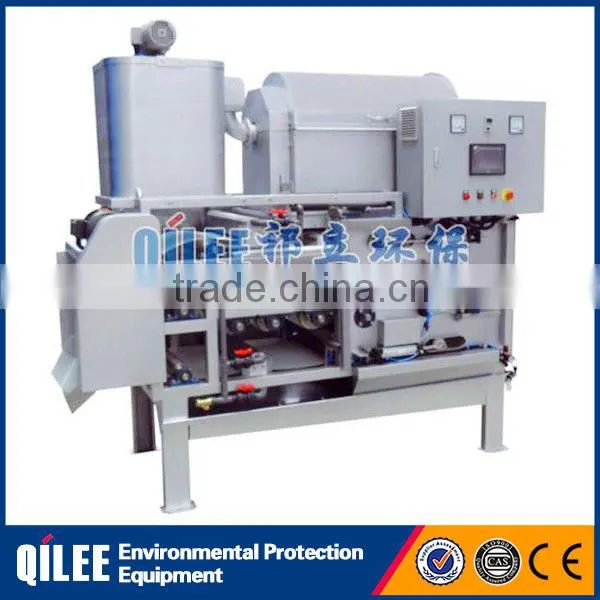

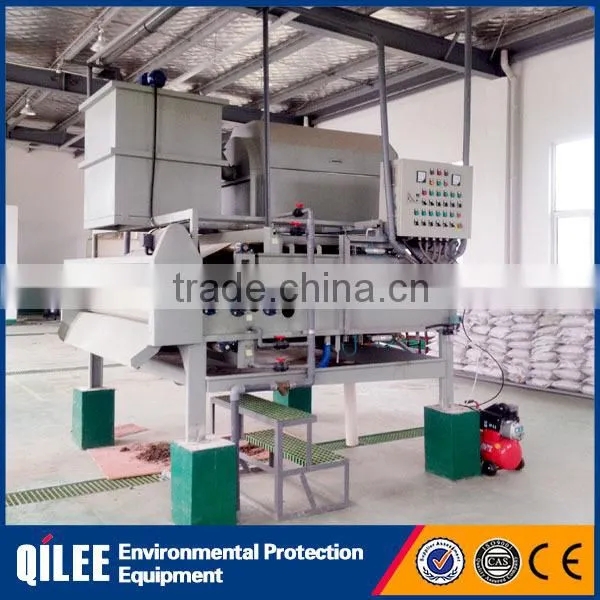

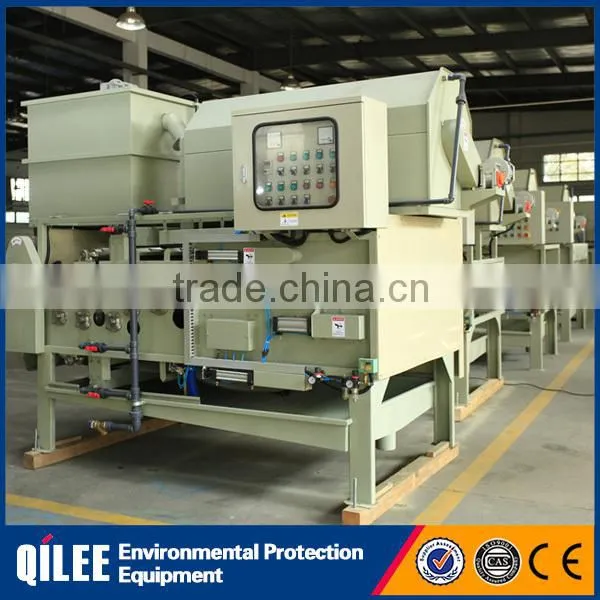

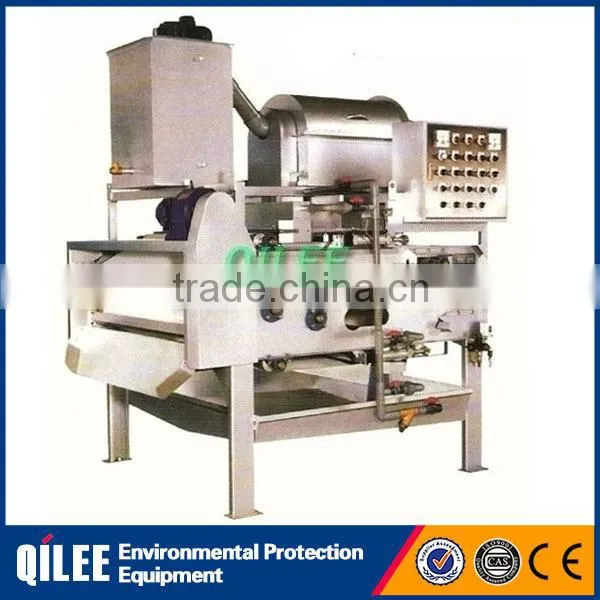

City mixed raw sewage sludge treatment belt filter press
belt filter press Technical Data:
Model | QTA-500 | QTA-750 | QTA-1000 | QTA-1250 | QTA-1500 | QTA-1500L | QTA-2000 | |
Belt Width(mm) | 500 | 750 | 1000 | 1250 | 1500 | 1500 | 2000 | |
Treating Capacity(m3/hr) | 2.0~3.9 | 3.2~6.2 | 4.1~7.5 | 6.0~10.0 | 7.2~13.0 | 10.0~17.0 | 15.0~26.0 | |
Inlet Consistency(S.S.1.5~2.5%) | ||||||||
Dried Sluge D.S(kg/hr) | 30~50 | 45~75 | 63~105 | 83~143 | 105~173 | 143~233 | 203~338 | |
Water Content's Rate(%) | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | 66~84 | |
Power Consumption(HP) | Driving Motor | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1 | 1/2 |
Disposal Agitaor Motor | 1/4 | 1/4 | 1/4 | 1/2 | 1 | 1 | 1/2 | |
Drum Thickner | 1/2 | 1/4 | 1/4 | 1/2 | 1/2 | 1 | 1/4 | |
Low Collecting Tray for Pressed Fitrate | yes | yes | yes | yes | yes | yes | NO | |
External Dimensions(Reference)(mm) | L | 2150 | 2150 | 2150 | 2450 | 2900 | 2900 | 2350 |
W | 1050 | 1300 | 1550 | 2050 | 2130 | 2630 | 1800 | |
H | 2250 | 2250 | 2250 | 2550 | 2500 | 2600 | 2250 | |
Base Dimension L1×W1(mm) | 1460×854 | 1460×1104 | 1460×1354 | 1460×1604 | 1460×1854 | 2110×1900 | 2110×2400 | |
Reference weight(kgs) | 660 | 800 | 960 | 1220 | 1490 | 1800 | 2200 |
Features of belt filter press :
1.The principal part adopts stainless steel as its material and possesses high strength. It is rust-less.
2. The filter cloth imported from Swiss, to provide the best performance and long service life.
3. Air chamber type automatic deviation correction device is set to assure stable running of the filter cloth.
4. Great product capability, good washing effect, flexible operation, low containing moisture in cake and low maintain expense
5. Low energy consumption,high efficiency ,low revolutions,low noise≤75dB(A)
6. Safety system monitor the entire working environment,automatic stopping devices to satisfy the need of operation security.
Treatment Flowchart of belt filter press :
Application of belt filter press :
It can work for all kinds of industrial waste water:
1. Paper making, leather industry, livestock products industry, aquatic product industry, chemical
industry and food industry.
2. Sludge concentration treatment and dewatering treatment for municipal sewer, water clarification
plant .
3. Separating usage of food industry, chemical industry, mineral industry etc.

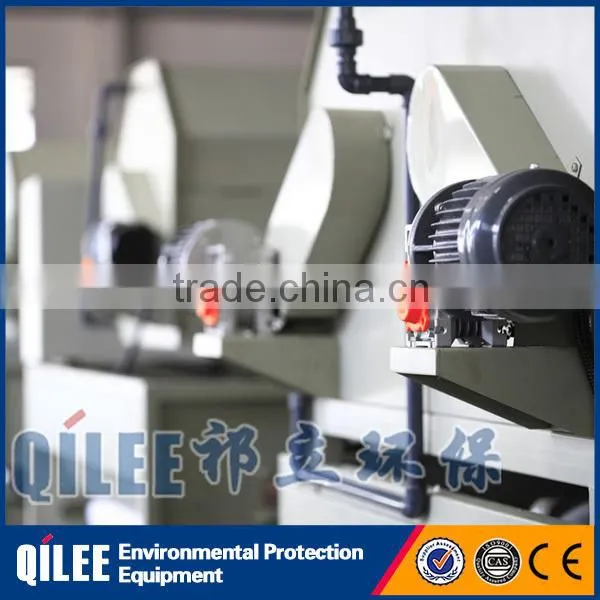

Product details of belt filter press :
the bearings
the filtration belt

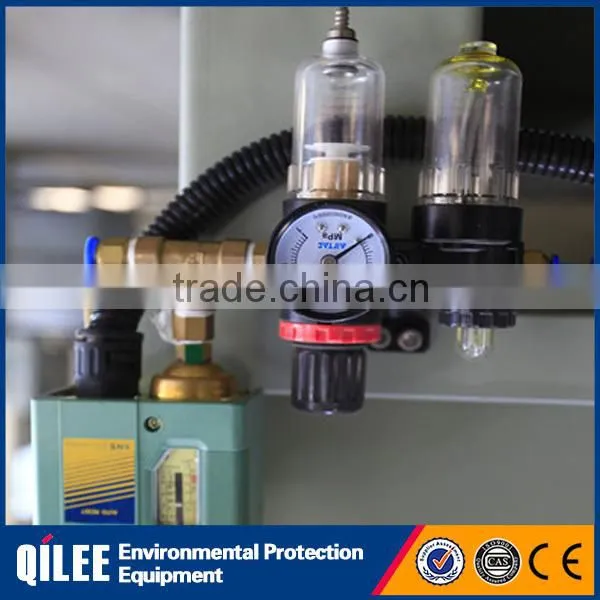

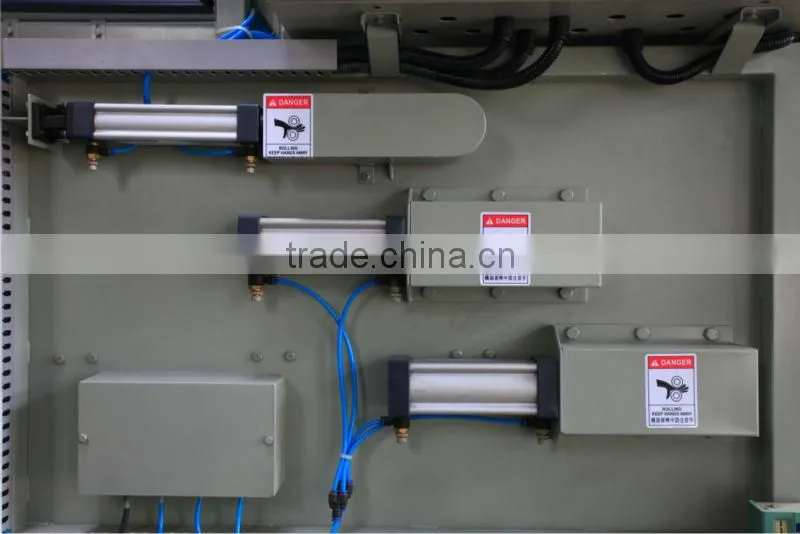

the air cylinder
Our company for ten years as part of the customer :

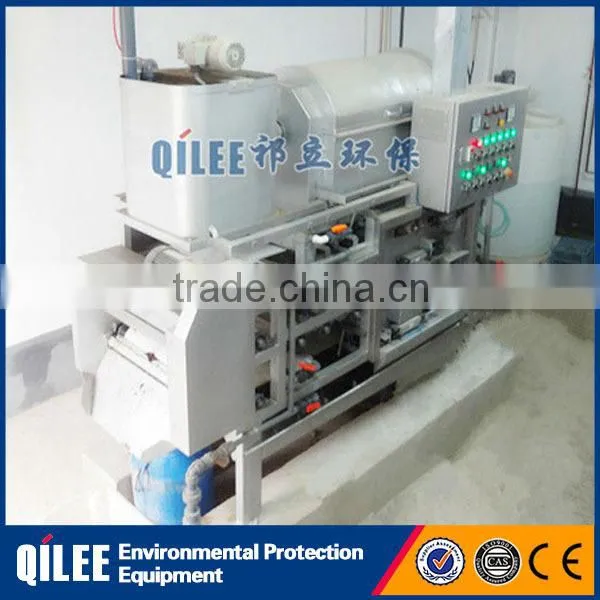

Engineering project of belt filter press :
About Us:
Shanghai QILEE is a company integrates the research and development, production and marketing of environmental protection equipment. It adheres to the corporate philosophy of “Quality first, Sustainable operation” since its foundation in 2006. It implements development strategic of “professionalization, scale and internationalization”. Shanghai QILEE keeps technical innovations constantly and provides superior products to meet the requirements of customers and market.
Shanghai QILEE brings in advanced foreign technology and originally designs and manufactures sludge dehydrators, automatic dissolvers, oil skimmers and agitators.
With our precious experience and professional knowledge, we will provide our best pre-sale and after-sale service for you.Work together with us, you will find enjoyable and successful business is so easy.
Q:What’s the application scope of belt filter press ?
A:It is widely applied in wastewater treatment in industrial, chemical, municipal and so on.
Q:What’s the material of belt filter press ?
A:It is SUS304.
Q:What’s the equipment used together with belt filter press?
A:Sludge pump, polymer dosing pump, washing pump, air compressor.
Q:How to choose the model?
A:Advise us the sludge source, treating capacity, solid content rate, then we could choose the suitable model for you. Please put forward if you have special requirements.
