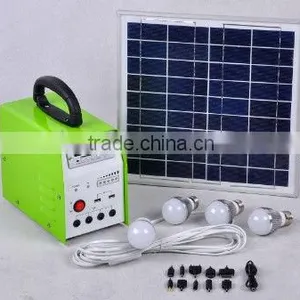

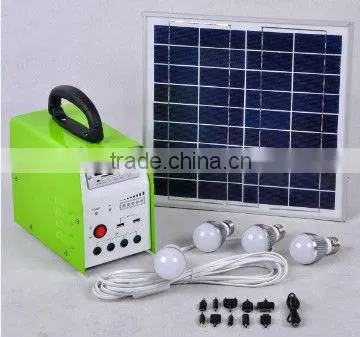

Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Energy System > 10w 7Ah off Grid Solar System
US$ 50 - 80
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA
Model Number:
ODA10-7Q
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OSDA
Model Number
ODA10-7Q
Specification
Normal
Application
Home
Output Voltage (V)
18v
Solar Power (W)
10w
Specifications

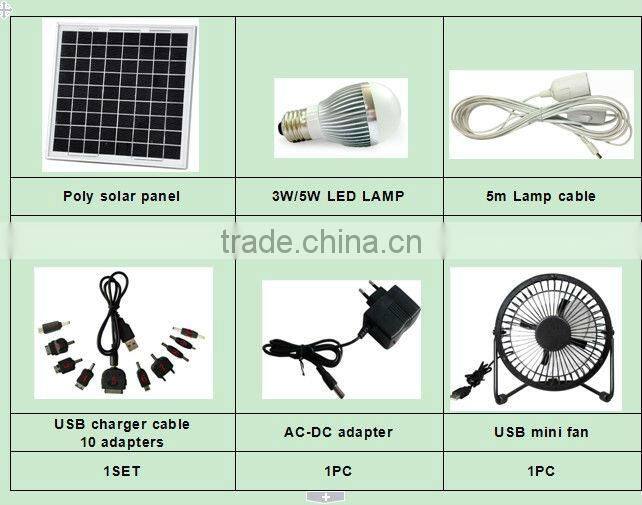

solar home lighting systemPV pensl & controller & lead-acid battery & led lamps & USB & Cables & Adapter & Mini fans & Radio
Guarantee Item
1. 2 years upon date of production, we will guarantee to keep the power box in
repair. (not including the battery and accessories.)
2. 1 year upon date of production, we will guarantee to keep the battery in repair.
3. 5 years upon date of production, we will guarantee to keep the solar module in repair.
4. Guarantee service is subject to normally using.
5. The guarantee do not cover any normal wear and tear, misuse, or which has been damaged through abuse, alteration, improper installation or application, unauthorized service or modification, storage, transportation or resulting from any power failure surges, natural disaster, or other events outside the dealer’s control.
| ODA6-7Q | Components | Technical parameters | ||||||||||
| Quotation | Fob Ningbo | |||||||||||
| Solar panel | 1x 6w/17v solar panel with 5M cable | |||||||||||
| Power Box | 1 x Metal power box: L210*W121*H170mm (Built-in 12V 7Ah lead acid battery & 12V 5A controller) | |||||||||||
| Accessaries (standard) | 2 x 2W LED lamps (plastic cup) 2 x 5m cables with bulb holder, ON/OFF switch 1 x USB with 10 adapters 1 x AC-DC 16V adapter | |||||||||||
| Accessaries (optional) | 2.5W 5V 500mA mini fan 2W LED lamps | |||||||||||
| Charging Time | 9 hours full charged by solar panel (under efficiency sunlight) 3 hours full charged by AC-DC adapter | |||||||||||
| Duration | 18~19 hours (1 LED bulb);9~10 hours (2 LED bulbs);6~6.5 hours (3or4 LED bulbs) | |||||||||||
| Outputs | 3 x DC 12V for LED lights 1 x DC USB 5V/500mA for charging mobile phone | |||||||||||
| packing list | By carton, inside with foam, 34x23x24cm 5.5kg/carton | |||||||||||
| ODA10-7Q | Components | Technical parameters | ||||||||||
| Quotation | Fob Ningbo | |||||||||||
| Solar panel | 1x 10w/17v solar panel with 5M cable | |||||||||||
| Power Box | 1 x Metal power box: L210*W121*H170mm (Built-in 12V 7Ah lead acid battery & 12V 5A controller) | |||||||||||
| Accessaries (standard) | 2 x 2W LED lamps (plastic cup) 2 x 5m light cables 1 x USB with 10 adapters 1 x AC-DC 16V adapter | |||||||||||
| Accessaries (optional) | 2.5W 5V 500mA mini fan 3W LED lamps | |||||||||||
| Charging Time | 5.5 hours full charged by solar panel (under efficiency sunlight) 4 hours full charged by AC-DC adapter | |||||||||||
| Duration | 18~19 hours (1 LED bulb);9~10 hours (2 LED bulbs);6~6.5 hours (3or4 LED bulbs) | |||||||||||
| Outputs | 4 x DC 12V for LED lights 1 x DC USB 5V/500mA for charging mobile phone | |||||||||||
| packing list | By carton, inside with EPE foam, 41x26.5x41cm 7.5kg/carton | |||||||||||
| ODA20-12Q | Components | Technical parameters | ||||||||||
| Quotation | Fob Ningbo | |||||||||||
|
| Solar panel | 1x 20w/17v solar panel with 5M cable | ||||||||||
| Power Box | 1 x Metal power box: L240*W130*H215mm (Built-in 12V 12Ah lead acid battery & 12V 5A controller) | |||||||||||
| Accessaries (standard) | 2 x 3W LED lamps (aluminum cup) 2 x 5m cables with bulb holder, ON/OFF switch 1 x USB with 10 adapters 1 x AC-DC 16V adapter | |||||||||||
| Accessaries (optional) | 2.5W 5V 500mA mini fan 2W or 3W LED lamps With Radio function | |||||||||||
| Charging Time | 9 hours full charged by solar panel (under efficiency sunlight) 7.2 hours full charged by AC-DC adapter | |||||||||||
| Duration | 31-32 hours (1 LED bulb);15-16 hours (2 LED bulbs);8.5~9 hours (3 LED bulbs) | |||||||||||
| Outputs | 4x DC 12V for LED lights 2 x DC USB 5V/500mA for charging mobile phone | |||||||||||
| packing list | By carton, inside with EPE foam, 41x26.5x41cm 13.5kg/carton | |||||||||||
| ODA30-28Q | Components | Technical parameters | ||||||||||
| Quotation | Fob Ningbo | |||||||||||
| Solar panel | 1x 30w/17v solar panel with 5M cable | |||||||||||
| Power Box | 1 x Metal power box: L240*W130*H215mm (Built-in 12V 28Ah lead acid battery & 12V 5A controller) | |||||||||||
| Accessaries (standard) | 1 x USB with 10 adapters for mobile phone 2/4 x 3W LED bulbs 2 x 5m cable with bulb holder, ON/OFF switch 1 x AC-DC 16V adapter | |||||||||||
| Accessaries (optional) | 2.5W 5V 500mA mini fan 3W LED lamps With Radio function | |||||||||||
| Charging Time | 7.5 hours full charged by solar panel (under efficiency sunlight) 9 hours full charged by AC-DC adapter | |||||||||||
| Duration | 72 hours (1 LED bulb);36 hours (2 LED bulbs);24 hours (3 LED bulbs);18 hours (4 LED bulbs) | |||||||||||
| Outputs | 4 x DC 12V for LED lights 2 x DC USB 5V/500mA for charging mobile phone | |||||||||||
| packing list | By carton, inside with EPE foam, 41x26.5x41cm 10.5kg/carton (not include solar panel) | |||||||||||
