solar system for home

Specifications

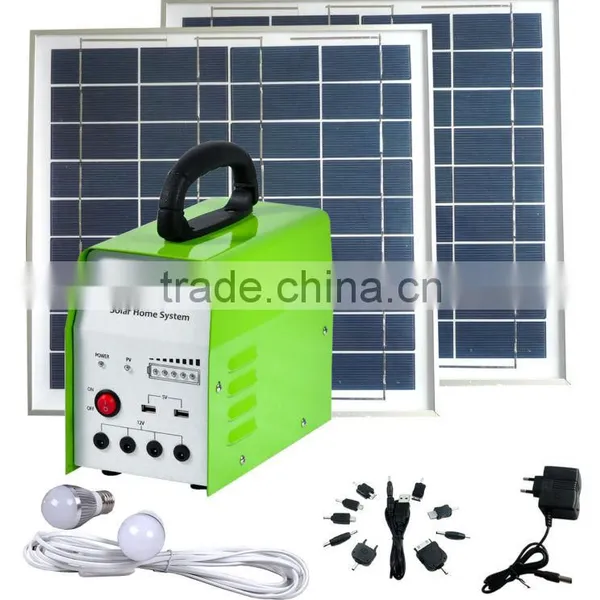

solar home lighting system
PV pensl & controller & lead-acid battery & led lamps & USB & Cables & Adapter & Mini fans & Radio

ODA20-12Q			Components		Technical parameters
Quotation			Fob Ningbo
			Solar panel		1x 20w/17v solar panel with 5M cable
			Power Box		1 x Metal power box: L240*W130*H215mm (Built-in 12V 12Ah lead acid battery & 12V 5A controller)
			Accessaries (standard)		2 x 3W LED lamps (aluminum cup) 2 x 5m cables with bulb holder, ON/OFF switch 1 x USB with 10 adapters 1 x AC-DC 16V adapter
			Accessaries (optional)		2.5W 5V 500mA mini fan 2W or 3W LED lamps With Radio function
			Charging Time		9 hours full charged by solar panel (under efficiency sunlight) 7.2 hours full charged by AC-DC adapter
			Duration		31-32 hours (1 LED bulb);15-16 hours (2 LED bulbs);8.5~9 hours (3 LED bulbs)
			Outputs		4x DC 12V for LED lights 2 x DC USB 5V/500mA for charging mobile phone
			packing list		By carton, inside with EPE foam, 41x26.5x41cm 13.5kg/carton



 Guarantee Item

1.  2 years upon date of production, we will guarantee to keep the power box in

repair. (not including the battery and accessories.)



2.  1 year upon date of production, we will guarantee to keep the battery in repair.



3.  5 years upon date of production, we will guarantee to keep the solar module in repair.

4.  Guarantee service is subject to normally using.



5.  The guarantee do not cover any normal wear and tear, misuse, or which has been damaged through abuse, alteration, improper installation or application, unauthorized service or modification, storage, transportation or resulting from any power failure surges, natural disaster, or other events outside the dealer’s control.
