Solar Panel System

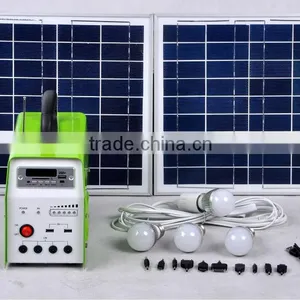

Solar Panel System thumbnail-1

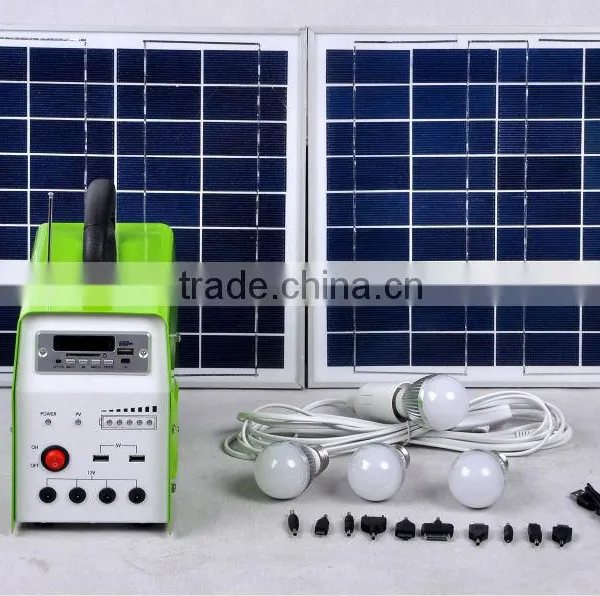

Solar Panel System photo-1
US$ 50 - 80 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA
Model Number:
ODA10-7Q
Contact Supplier Request Quote Chat Now
Ningbo Osda Solar Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OSDA
Model Number ODA10-7Q
Specification Normal
Application Home
Output Voltage (V) 18v
Solar Power (W) 10w

Specifications

solar home lighting system

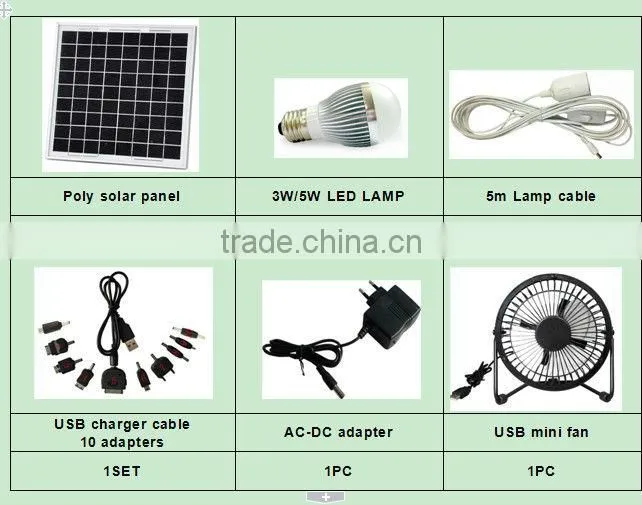

PV pensl & controller & lead-acid battery & led lamps & USB & Cables & Adapter & Mini fans & Radio

Guarantee Item

1.  2 years upon date of production, we will guarantee to keep the power box in

repair. (not including the battery and accessories.)



2.  1 year upon date of production, we will guarantee to keep the battery in repair.



3.  5 years upon date of production, we will guarantee to keep the solar module in repair.

4.  Guarantee service is subject to normally using.



5.  The guarantee do not cover any normal wear and tear, misuse, or which has been damaged through abuse, alteration, improper installation or application, unauthorized service or modification, storage, transportation or resulting from any power failure surges, natural disaster, or other events outside the dealer’s control.



ODA6-7Q Components Technical parameters
Quotation Fob Ningbo
  Solar panel 1x 6w/17v solar panel with 5M cable
Power Box 1 x Metal power box: L210*W121*H170mm
(Built-in 12V 7Ah lead acid battery & 12V 5A controller)
Accessaries
(standard)		 2 x 2W LED lamps (plastic cup)
2 x 5m cables with bulb holder, ON/OFF switch
1 x USB with 10 adapters
1 x AC-DC 16V adapter
Accessaries
(optional)		 2.5W 5V 500mA mini fan
2W LED lamps
Charging Time 9 hours full charged by solar panel (under efficiency sunlight)
3 hours full charged by AC-DC adapter
Duration 18~19 hours (1 LED bulb);9~10 hours (2 LED bulbs);6~6.5 hours (3or4 LED bulbs)
Outputs 3 x DC 12V for LED lights
1 x DC USB 5V/500mA for charging mobile phone
packing list By carton, inside with foam, 34x23x24cm 5.5kg/carton

ODA10-7Q Components Technical parameters
Quotation Fob Ningbo
  Solar panel 1x 10w/17v solar panel with 5M cable
Power Box 1 x Metal power box: L210*W121*H170mm
(Built-in 12V 7Ah lead acid battery & 12V 5A controller)
Accessaries
(standard)		 2 x 2W LED lamps (plastic cup)
2 x 5m light cables
1 x USB with 10 adapters
1 x AC-DC 16V adapter
Accessaries
(optional)		 2.5W 5V 500mA mini fan
3W LED lamps
Charging Time 5.5 hours full charged by solar panel (under efficiency sunlight)
4 hours full charged by AC-DC adapter
Duration 18~19 hours (1 LED bulb);9~10 hours (2 LED bulbs);6~6.5 hours (3or4 LED bulbs)
Outputs 4 x DC 12V for LED lights
1 x DC USB 5V/500mA for charging mobile phone
packing list By carton, inside with EPE foam, 41x26.5x41cm 7.5kg/carton



ODA20-12Q Components Technical parameters
Quotation Fob Ningbo




 Solar panel 1x 20w/17v solar panel with 5M cable
Power Box 1 x Metal power box: L240*W130*H215mm
(Built-in 12V 12Ah lead acid battery & 12V 5A controller)
Accessaries
(standard)		 2 x 3W LED lamps (aluminum cup)
2 x 5m cables with bulb holder, ON/OFF switch
1 x USB with 10 adapters
1 x AC-DC 16V adapter
Accessaries
(optional)		 2.5W 5V 500mA mini fan
2W or 3W LED lamps
With Radio function
Charging Time 9 hours full charged by solar panel (under efficiency sunlight)
7.2 hours full charged by AC-DC adapter
Duration 31-32 hours (1 LED bulb);15-16 hours (2 LED bulbs);8.5~9 hours (3 LED bulbs)
Outputs 4x DC 12V for LED lights
2 x DC USB 5V/500mA for charging mobile phone
packing list By carton, inside with EPE foam, 41x26.5x41cm 13.5kg/carton
ODA30-28Q Components Technical parameters
Quotation Fob Ningbo
  Solar panel 1x 30w/17v solar panel with 5M cable
Power Box 1 x Metal power box: L240*W130*H215mm
(Built-in 12V 28Ah lead acid battery & 12V 5A controller)
Accessaries
(standard)		 1 x USB with 10 adapters for mobile phone
2/4 x 3W LED bulbs
2 x 5m cable with bulb holder, ON/OFF switch
1 x AC-DC 16V adapter
Accessaries
(optional)		 2.5W 5V 500mA mini fan
3W LED lamps
With Radio function
Charging Time 7.5 hours full charged by solar panel (under efficiency sunlight)
9 hours full charged by AC-DC adapter
Duration 72 hours (1 LED bulb);36 hours (2 LED bulbs);24 hours (3 LED bulbs);18 hours (4 LED bulbs)
Outputs 4 x DC 12V for LED lights
2 x DC USB 5V/500mA for charging mobile phone
packing list By carton, inside with EPE foam, 41x26.5x41cm 10.5kg/carton (not include solar panel)



solar panel system
