Homemade Solar Collector

Homemade Solar Collector photo-1
US$ 90 - 140 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA
Model Number:
ODA10\ODA20\ODA30
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OSDA
Model Number ODA10\ODA20\ODA30
Type Other

Specifications

instead of traditional air conditioner.
good for healthy ,no chemical thing
control the temperature and moisture of the room

solar air collector

Adjustable air inlet at the bottom: Yes

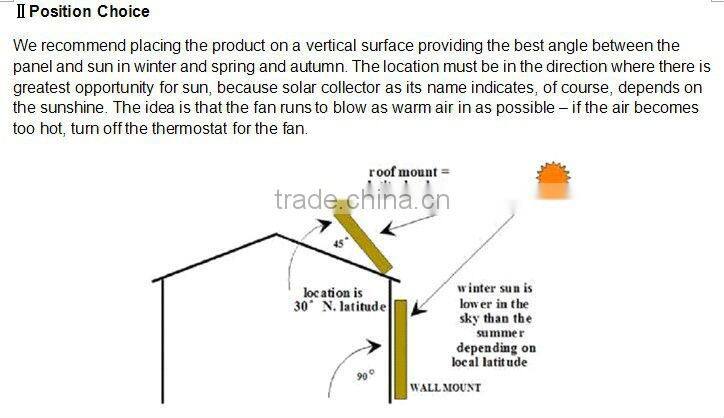

Can be mounted on walls and roof.
Equipped with congestion security.
Frame Xtra hardened surface structure (black).



Data ODA10ODA11ODA12:

Size 55×90 cm

Footprint absorber: 0.50 m 2

Space coverage: 90 m³

Photovoltaic Performance: 8 Watt

Fan: Electronically controlled

Fan: up to 85 m³ / h





Data ODA20ODA21ODA22:

Size: 66×105 cm

Footprint absorber: 0.70 m 2

Space coverage: 150 m³

Performance electric photovoltaic: 15 Watt

Fan: Electronically controlled

Fan: up to 110 m³ / h



Data ODA30ODA31ODA32:

Size: 95×140 cm

Footprint absorber: 1.33 m 2

Space coverage: 185 m³

Performance electric photovoltaic: 18 Watt

Fan: Electronically controlled

Fan: up to 110 m³ / h

TheODA12ODA22ODA32 series models have an independent solar pv panel.

The size of the solar pv panel is 612cm*205cm*25cm.



Advantage:

1: Save energy.

2: instead of traditional air conditioner.

3: good for environment.

4: good for healthy ,no chemical thing

5: 15 years warranty



6. Control the temperature and moisture of the room

For order with quantity of 100 sets or more, we supply with customized size service.You can choose size from the range:



Width: 300-1000mm

Length:300-2000mm



We would like to provide any color for you .



homemade solar collectorhomemade solar collectorhomemade solar collector

 homemade solar collector
