Solar Panels With TUV, Solar Panel 5w 18v
US$ 0.55 - 0.8
MOQ: 1 set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OSDA
Model Number:
ODA5-18-P
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
OSDA
Model Number
ODA5-18-P
Specification
Normal
Application
Commercial
Output Voltage (V)
18V
Solar Power (W)
5w
Specifications
10years warranty on product materials and processing technologyPower output warranty:10 years:90% ,25 years:80%10-year
| On-grid residential roof-tops |
| On-grid commercial/industrial roof-tops |
| Solar power plants |
| Off-grid system |
| Other on-grid applications |
| High conversion efficiency |
| Low power tolerance of 0~+3% |
| Low degradation under light exposure |
| Can withstand high wind-pressure,snow load and extreme temperature |
| Passing IEC 61215 2400Pa mechanical load test |
| Cell Type | Poly-crystalline |
| No. of Cells | 36(4×9) |

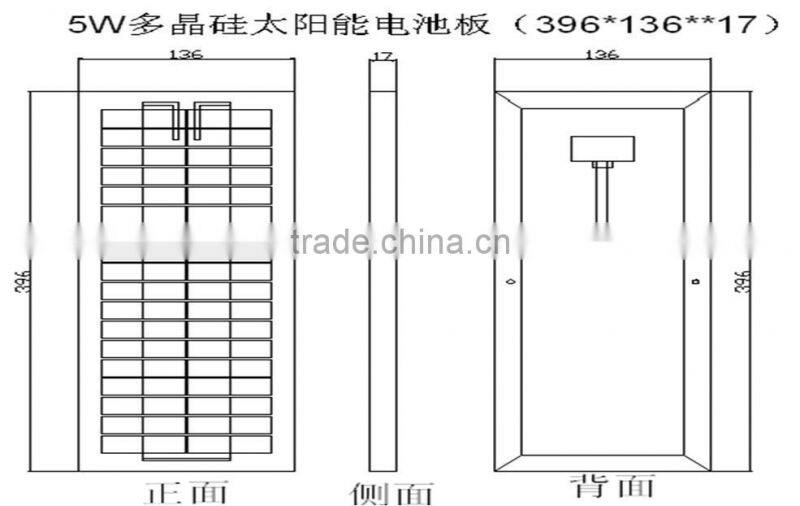

| Dimensions | 136x396x17mm |
| Weight | 0.7kgs |
| Front Glass | 3.2mm high transmission,low iron,tempered glass |
| Frame | Anodized Aluminium Alloy |
| Junction box | IP65 Rated |
| Output cables | Without cables and connector |
| Quantity/cartons | 10pcs |
