TP100 USB Telescope Digital Eyepiece

TP100 USB Telescope Digital Eyepiece photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
OEM
Model Number:
TP100
MegaPixel:
< 5.0MP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name OEM
Model Number TP100
Battery Type Other, USB Port
Video Capture Yes
Color Black
Place of Origin Zhejiang, China

Specifications

0.1MP Sensor
Optics and digital zoom
7 languages software
32, 64 bit Win 8

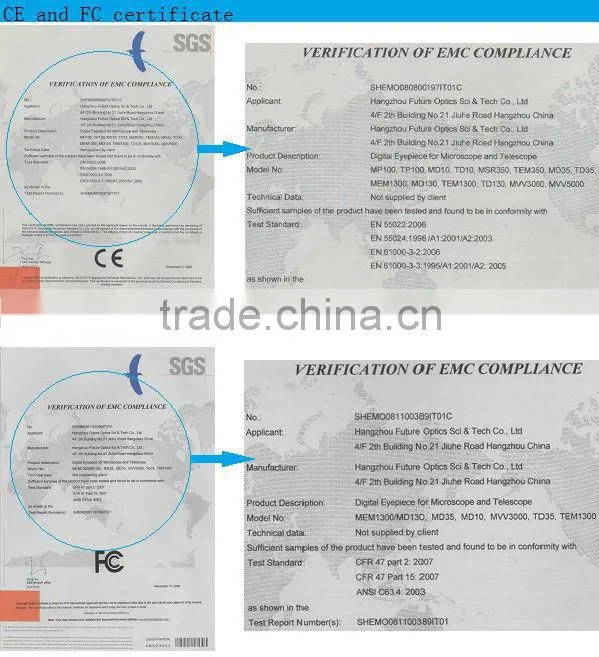

Patent and CE

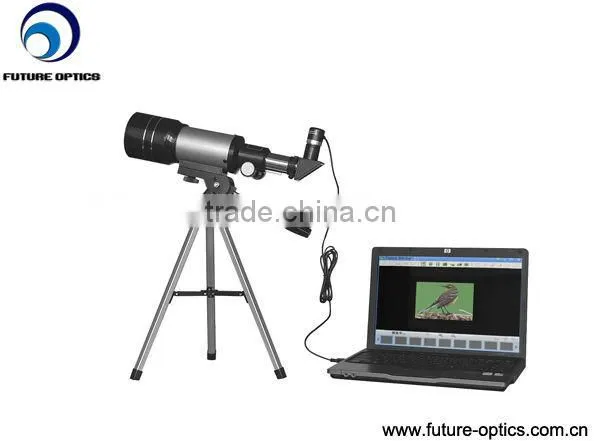

0.1MP USB Telescope Electronic Eyepiece with CE Proved is composed of image sensor and processing system, driver and application software. Special design in structure makes it compact in size and light in weight, and it is easy to connect with all kinds of Telescope through the ocular tube in diameter. Once the digital eyepiece is linked with PC, many excellent jobs will be done including images live showing, capturing, making movie, and editing under the control of application software. Our Digital Eyepiece is a great device to upgrade traditional telescope into digital telescope and is of wide application in education, birds protection and scientific research for its low cost and convenient operation.
TP100 USB telescope digital eyepieceTP100 USB telescope digital eyepiece
Features

Capture Mode

Picture and Video

Max. Picture

352*288

Max. Video

352*288

Size of IR filter

Φ15.00mm

Eyepiece Adapter Size

24.50mm

Power Supply

USB Powered

Device Weight

0.2kg

Device Size

Φ30.0mm*48.5mm

Cable length

1.5m

Function of Software

Image & video Capture, Edit and Management

System Compatibility

32bit and 64bit windows2000,XP,Vista,

windows7,

Language of software

English, French, German, Spanish, Japanese,

Chinese, Korean

PC Requirements

CPU: Inter Core2 2.8GHz or Higher; Memory:

2GB or More;USB Port:USB2.0 High-speed Port


Specifications

Sensor Parameter

1/7” 0.1MP

Max. Resolution

352*288

Pixel Size

5.6µm*5.6µm

Responsivity

190 level/lux-sec

Dynamic Range

31.6dB

S/N Ratio

35dB

Spectral Range

400-650nm(with IR-filter)

Frame Rate

30fps@352*288

Proview Model

352x288,320x240

Exposure

ERS or Manual

Power Consumption

25mA

White Balance

Auto and manual

Out Interface

USB2.0

TP100 USB telescope digital eyepieceTP100 USB telescope digital eyepiece
