Specifications

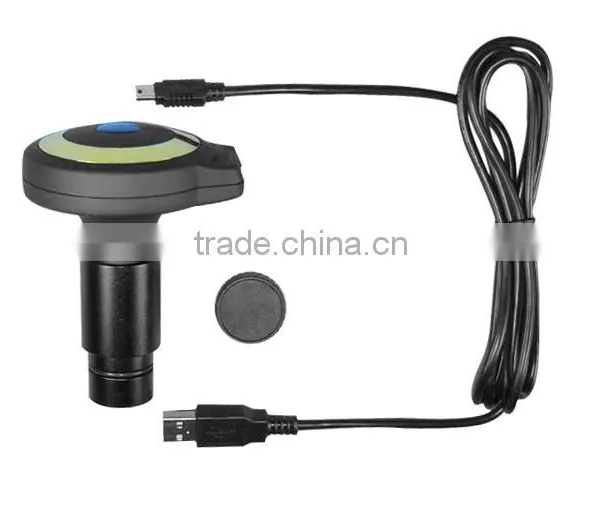

A module with built in lens and image sensor and IC board to capture images from eyepiece tube or C- mount of a microscope.♦Features:
1. Digital imaging module: YUY2 and MJPG of image format 2048*1536 USB imaging module;
2. Imaging software: Future Win Joe microscopic imaging program
3. Optical matching: Built-in relay lens and field lens;
4. Adapter barrel: 23.2mm and 30.0mm and 30.5mm.
5. Camera house: compact and light-weight round-shaped shell.
♦Application:

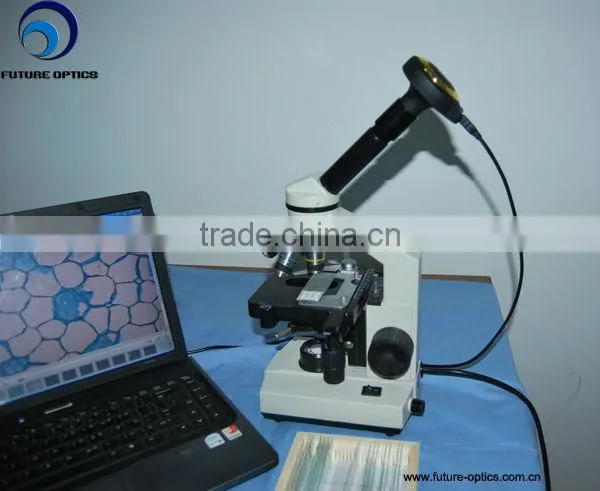

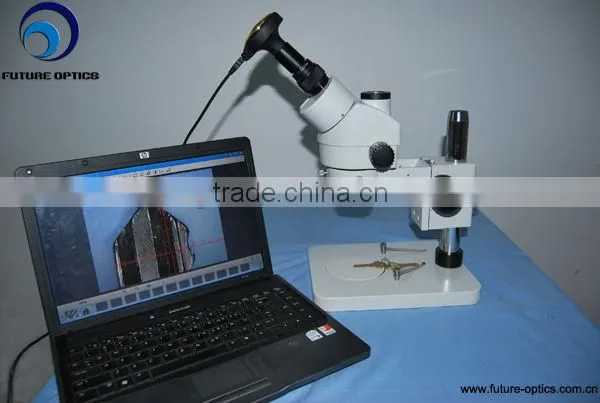

To update any type of optics microscope into digital microscope and to Increase the value of your microscope by adding powerful digital capability. No squinting with one eye, just be enjoyable and to share with others. It’s an affordable imaging solution for microscopy in industry, education, medicine and science.
♦Function:
1. To capture images for living show, for shoot and for video recording;
2. To adjust the gain, resolution, WB, contras, exposure time, RGB color and Gamma setting;
3. To edit pictures and to manage files of pictures and movies.
♦Benefits:
1. Easy installation, convenient operation;
2. Built-in relay lens to widen field and to have image sharp and bright.
3. Compatibility with Win/MAC
4. High resolution of 2048*1536 for preview, picture shoot and video recording
5. High frame rate at MJPG format setting:15fps@2048*1536
6. Real active resolution, no interpolation, no jaggies in picture.
7. Copyright software with 8 languages version.
♦Special design:
Buitl-in matching lens with high identification to have image sharp and to cut away lighting noise of background and to save cost of an extra relay lens
♦Quality control:
♦OEM/ ODM:
Available for both hardware and software to be designed and made on clients' specification.
Including:
Logo package printing;
Optical system design;
PCB imaging module design;
Shell design ;
Software amendment.
♦Detail Specifications:
Capture Mode |
Picture and Video |
Sensor Parameter |
3.0MP |
Active pixel |
2048*1536 |
Responsivity |
1.4V/lux-sec |
Dynamic Range |
70.1dB |
S/N Ratio |
38.1dB |
Spectral Range |
400-650nm(with IR-filter) |
Frame Rate |
|
Preview Model |
2048x1536,1600x1200,1280x1024,800x600, 640x480,352x288,320x240 |
Exposure |
ERS or Manual |
Power Consumption. |
381mW |
White Balance |
Auto and manual |
Eyepiece Adapter Size |
23.2mm, 30.0mm |
Power Supply |
USB Powered |
Device Weight |
0.09kg |
Device Size |
97mm*Φ74mm |
Cable length |
1.5m |
Function of Software |
Image & video Capture, Edit and Management |
System Compatibility |
32bit and 64bit XP, Vista, Win7,Win8,MAC |
Language of software |
English, French, German, Spanish, Japanese, Chinese, Russian |
PC Requirements |
CPU: Inter Core2, 2.8GHz or Higher; Memory: 2GB or More; USB Port:USB2.0 High-speed Port |
