hd Dvb-s2 Receiver

Name: hd Dvb-s2 Receiver
Brand: DEXIN
SKU: 132550865
Availability: InStock

US$ 1 - 2,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

DEXIN

Model Number:

NDS399X

Contact Supplier Request Quote Chat Now

Dexin Digital Technology Corp. Ltd. (Chengdu)

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name DEXIN

Model Number NDS399X

FTA(Free To Air) Yes

Type Digital

High Definition Yes

Specifications

support 32 SPTS output
LCD and monitor window on front panels
Support H.264 and MPEG2 decoding

Overview

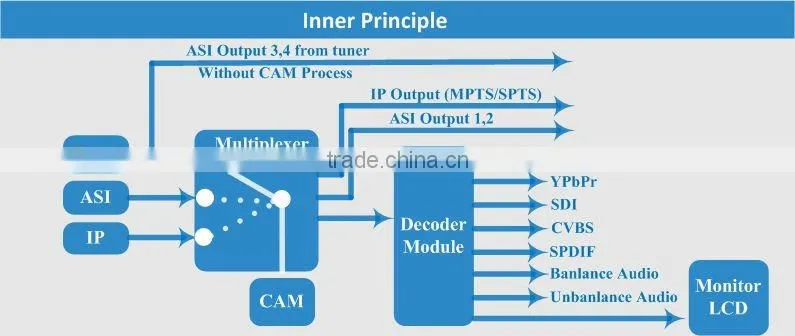

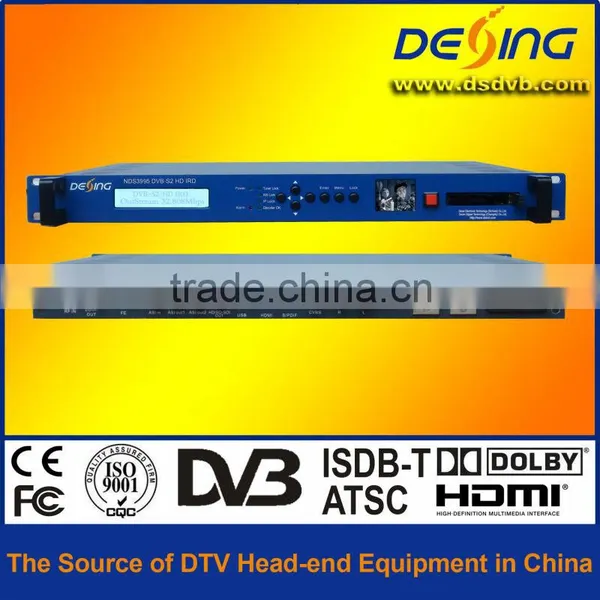

NDS399X Series HD IRD is Dexin new design IRD with video monitor LCD equipped on the front panel. It can receive TS signals from tuner (DVB-S/S2, DVB-T, ISDB-T, and DVB-C optional), ASI and IP sources. After multiplexing and de-encryption with CAM module, then give it to ASI, IP (MPTS and SPTS) as well as various interface video/audio output. With the CAM slot support, it can support one channel (Tuner, ASI or IP) de-scrambling and give transparent signal output. User can operate the device by using front panel LCD or NMS software. Moreover, user can choose to have an optional ASI output interface which can pass through the encryption data source directly from tuner.

Key features

Support DVB-C/DVB-S/ DVB-S2/DVB-T/ ISDB-T RF Input

Support 1 RF, 1 ASI, and 1 IP (100M) input

Support 2 channels ASI output and MPTS/32 SPTS IP output

Support tuner pass through to ASI output

Multiple Video and Audio format output

Support H.264 and MPEG2 decoding

LCD display on the front panel

Unicast and multicast support

Support NMS over SNMP

Specifications

Input	1 RF input(DVB-C/DVB-S/ DVB-S2/ DVB-T/ISDB-T optional
	1 ASI input(support 188/204 package format
	1 IP input (100Mbps)
Multiplexing	Support 256 PID mapping per channel(automatically or manually)
	PCR accurate adjusting
	Generate PSI/SI table automatically

DVB-CI Parameters	Descrambler		DVB-CSA
	Smart Card interface		ISO7816
	Interface Card Separation		PCMCIA
Video output	CVBS×1 (BNC)		576i/25 fps, 480i/29.97 fps
	YPbPr×1 (BNC)		1080i/25, 29.97, 30 fps 720p/50 59.94 fps
	SDI×1 (BNC)		1080i/25, 29.97, 30 fps; 720p/50 59.94 fps 576i/25 fps 480i/29.97 fps
	HDMI×1		1080i/25, 29.97, 30 fps; 720p/50 59.94 fps
Audio Output	Stereo unbalanced audio		BNC interface
	Stereo balanced audio		XLR interface
	Digital audio		SPDIF
TS Output	2 ASI output(after multiplexer)
	2 ASI output(Tuner input pass-through)
	1 IP MPTS output(100M port)
	32 IP SPTS output(1000M Port)
System	Support front panel and network management software(NMS)
	English and Chinese interface conversion
	Ethernet software upgrade
General	Dimensions ( L×W×H)	482mm×455mm×44.5mm
	Approx weight	3.2kg
	Power	<20W(Max)
	Temperature range	0~45°C (Operation); -20°C~80°C (Storage)

RF Input Demodulation Range	NDS3991 DVB-C	47MHZ~860MHZ, 16/32/64/128/256 QAM
	NDS3992 DVB-S	950MHZ~2150MHZ Symbol Rate: 2~45Mbauds
	NDS3993 DVB-T	146MHZ~862MHZ Bandwidth: 6/7/8 M
	NDS3995 DVB-S2	950MHZ~2150MHZ Symbol Rate: QPSK 1~45Mbauds 8PSK 1-30Mbauds
	NDS3996 ISDB-T	153MHZ~862MHZ Bandwidth: 6/7/8 M
