Specifications
convenient and efficient network transmissiondual LNB input
equiped with LED real-time monitor
multi AV format output
Brief Introduction

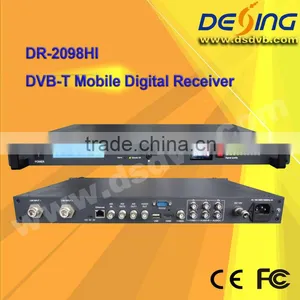

DR-2098HI is a professional mobile digital receiver to convert the input tuner signals to crystal clear digital or analog video in various formats available at CVBS, YPbPr, HDMI, and HD-SDI.
It is designed to support the industry standard 576i/480i, 576p/480p, 720p and 1080i decoding.
It is also equipped with 1 ASI input and 2 ASI output ports to
Additionally, the implemented web server allows the configuration of the DR-2098HI with a standard web browser. Basic configuration can also be done locally with the LCD display and navigation buttons. The LCD monitor can, at the same time, realize the real-time observation about broadcasting status.
Key Features
- convenient and efficient network transmission
- dual rf input
- equiped with LED real-time monitor
- multi AV format output
- Easy operation and simple management with web NMS
- Applied in various circumstances
- Competitive price
Technical Specifications
RF parameters |
|
|
Signal source |
2*LNB, N-L16 (negative) |
|
Receiving frequency |
1MHz~999MHz |
|
Bandwidth |
2MHz, 4MHz, 8MHz |
|
Input impedance |
50Ω |
|
Receiving restriction |
20dμBv~103dBμv |
|
Modulation mode |
COFDM/DVB-T |
|
Output Parameters |
|
|
Stream out |
Video output port |
1*HDMI, 2*CVBS, 1*YPbPr, 1*HD-SDI |
Audio output |
L/R; RS232 for XLR |
|
ASI output |
2*ASI, BNC (negative) |
|
Resolution |
HDMI
|
1080i-25, 29.94fps, 720p -50 59.94fps, 576i-25 fps, 480i-29.94 fps |
CVBS |
576i-25 fps, 480i-29.94fps |
|
YPbPr |
1080i- 25, 29.94fps,720p-50, 59.94fps |
|
HD-SDI |
1080i-25, 29.94fps,720p-50, 59.94fps, 576i-25 fps, 480i-29.94 fps |
|
Data Formatting |
MPEG-Ⅱ, H.264 |
|
BER |
≤10-8 |
|
Miscellaneous |
|
|
Management |
NMS via Ethernet; LCD & Key board |
|
Upgrade |
External USB driver |
|
MTBF |
≥10000hrs |
|
Working voltage |
DC 10V~16V; AC 90V~250V |
|
Feed voltage |
DC 10V~16V |
|
Power dissipation |
12W |
|
Dimension |
19″1U, 483×400×44(mm) |
|
Weight |
2Kg |
|
Principle Chart
