Help CenterNDS3503A IP to ASI, Asi to ip Gateway
Related Products
Specifications
asi to ip gatewayIP to ASI gateway
PCR adjusting
ASI and IP two-way adaptor
NDS3503A asi to ip gateway
support ASI to IP
IP to ASI
Outline

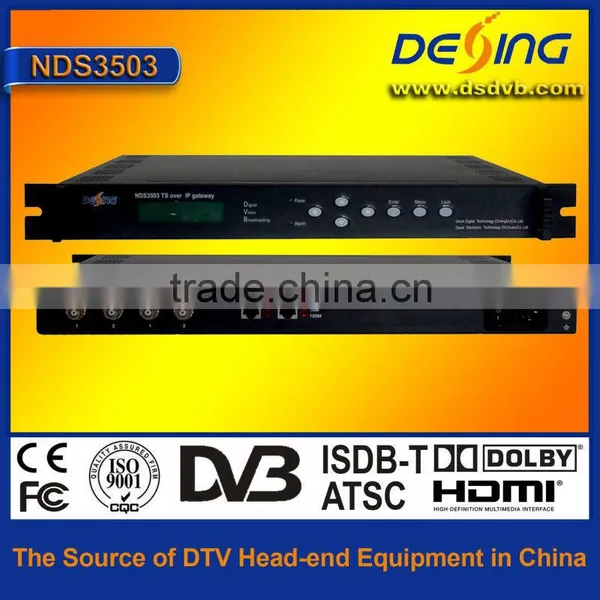

NDS3503A Bidirectional IP Gateway is a head-end interface device which is used for DVB and Ethernet. It can be used both for a receiver and a lancers! On one hand, in the lancers part, this machine can be used for sending IP stream, turning the TS stream into IP Stream. On the other hand, in the receive part; this machine can be used for receiving IP stream, turning the IP stream into TS stream.
Features
l Support PCR adjusting
l Transparent transmission without ATM adapting process, directly mapping IP frame, through the network, with 100Mbps interface to transmission
l Alarm display
l IP frame structure, complies ITU G. 752, ITU-T G.804 standard
l IP signal physical interface complies ITU-TG.703 standard;
l Two-way operation, IP Stream is 80.000Mbps.
l LCD/Key board or Web page based NMS management
Specifications
ASI to IP |
Input |
1 ASI input (BNC) |
Output |
1 IP over UDP output (RJ 45) |
|
IP to ASI |
Input |
1 IP over UDP input (RJ 45) |
Output |
1 ASI output (BNC) |
|
NMS port |
To connect PC and device management; To output IP signal (multicast only) |
|
DATA port |
To input/output IP (unicast/multicast )signal; Used as NMS port and auto generate IP address |
|
General |
Management |
LCD/Key board; Web NMS |
Dimension |
44mm*482mm*433mm |
|
Environment |
0-45°C (Working) ; -20~80°C (Storage) |
|
Power supply |
220V AC±10%, 50Hz 25W |
|
