Outline

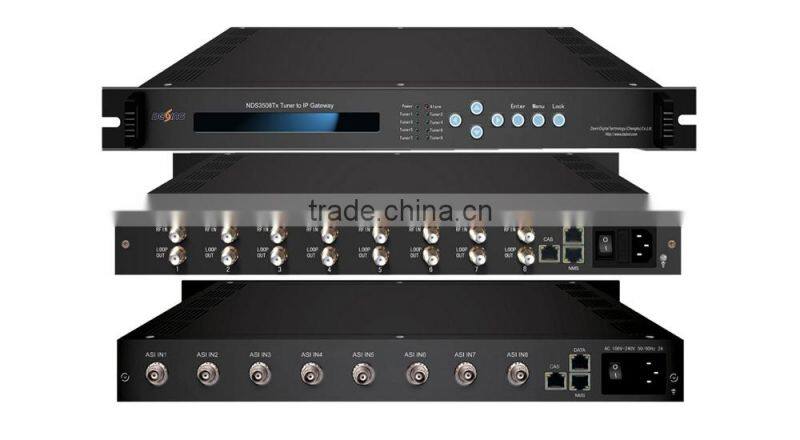

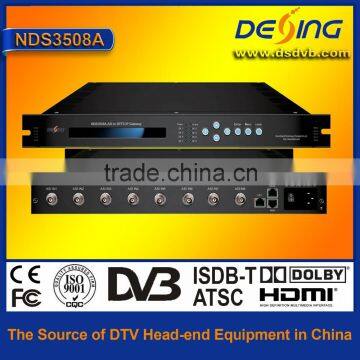

NDS3508Tx (NDS3508A) Tuner (ASI) to IP Gateway is a head-end interface conversion device. It supports SPTSx32 or SPTSx20 (For version with BISS function) output.
It is also integrated with demodulation and gateway function, which can demodulate the signal from 8 tuners (ASI) into TS. After multiplexing the TS, then packet the TS into IP package and output the IP package through different IP address and ports. It supports IP output (UDP, RTP/RTSP protocol).
BISS function is now embedded to descramble your tuner input programs.
Features
l Integrated with demodulation and gateway function
l Support 8 channels tuner (ASI) input
l Support BISS descrambling (Up to 120Mbps)
l 1 GE output, maximum output bit-rate is 800Mbps
l SPTSx32 or SPTSx20 (For version with BISS function) over UDP, RTP/RTSP, unicast and multicast
l Support LCD display and keyboard
l Support SNMP/Web operatio

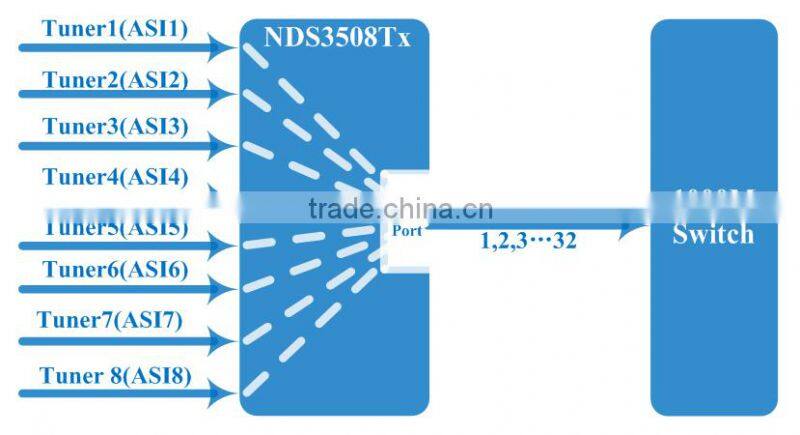

Principle Chart
Specification
Input |
8 tuner input(DVB-S/DVB-S2 /DVB-T/DVB-T2/DVB-C/ISDB-T optional) —NDS3508Tx DVB-C: 47 MHz~860 MHz, 16/32/64/128/256 QAM DVB-S: 950 MHz~2150 MHz, symbol rate: 2~45Mbauds DVB-S2: 950 MHz~2150 MHz, symbol rate: QPSK 1~45Mbauds, 8PSK 2~30Mbauds DVB-T: 146MHz ~862 MHz, 6/7/8 M bandwidth DVB-T2: 44MHz ~999 MHz, 6/7/8 M bandwidth ISDB-T: 153 MHz ~862 MHz, 6/7/8M bandwidth |
|
8 ASI input —NDS3508A | ||
Output |
1 GE output, UDP, RTP/RTSP protocol, unicast and Multicast 32 SPTS output — Without BISS function Or 20 SPTS output — With BISS function |
|
BISS descrambling |
Mode 1, Mode E |
|
Transmission Bit-rate |
Maximum total bit-rate is 800Mbps |
|
General |
Dimension(WxLxH) |
482mm×410mm×44mm |
Weight |
3.6kg |
|
Temperature |
0~45℃(working ),-20~80℃(storage) |
|
Power supply |
100~240VAC,50/60Hz |
|
consumption |
20W |
|
Order information:
|
NDS3508Tx |
NDS3508A |
Tuner input |
yes |
|
ASI input |
|
yes |
BISS function |
yes |
|
SPTS Out |
20 SPTS |
32 SPTS |
