Help CenterCVBS to Digital rf Converter
Related Products
Specifications
cvbs to rf converterUSB record TS and playback
with TS 'Creator'.exe
MPEG2 & MPEG4 HD/SD encoding
digital rf out

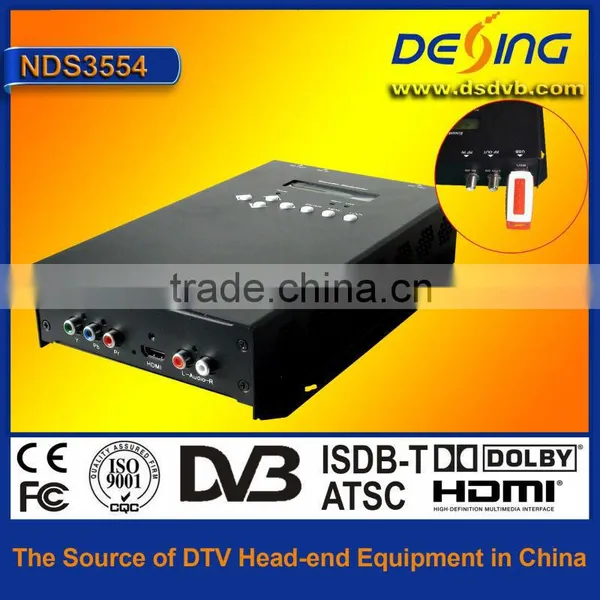

cvbs to digital rf converter

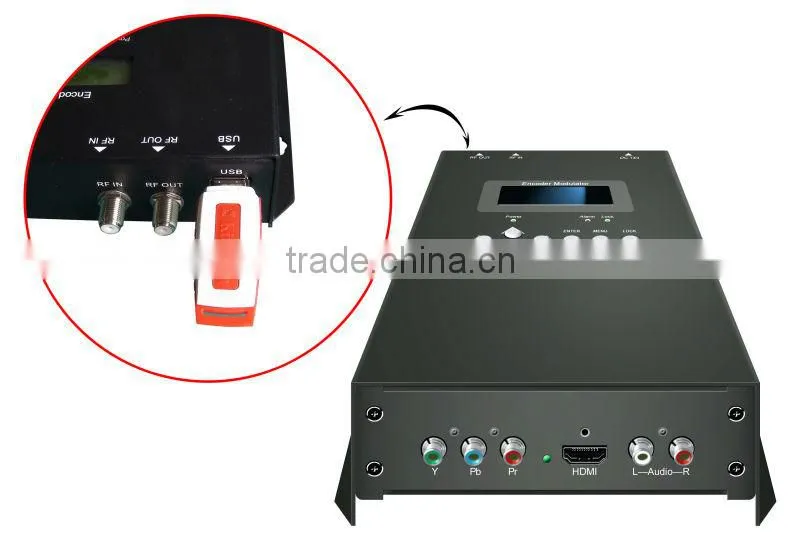

USB to RF converter
A device that allows audio and video signal input in TV distributions and video recorded and playback through a USB port, with applications in home entertainment, Digital Signage for hotels, shops, restaurants etc...
Product Overview

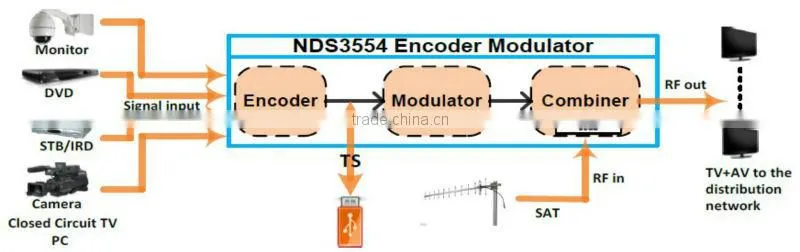

Principle Chart
Technical Specifications
Encoding Section | |||
HDMI |
Video |
Encoding |
MPEG-2, MPEG-4 AVC/H.264 |
Interface |
HDMI*1 |
||
Resolution |
1920*1080_60P,1920*1080_50P à (for MPEG-4 AVC/H.264 only) 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
||
Bit rate |
0.500~19.500 Mbps |
||
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, DD AC3 2.0 (Optional) AC3 Passthrough |
|
Interface |
HDMI |
||
Sample rate |
48KHz |
||
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
||
|
YPbPr/ CVBS
|
Video |
Encoding |
MPEG-2, MPEG-4 AVC/H.264 |
Interface |
CVBS *1, YPbPr*1 |
||
Resolution |
CVBS: 720x576_50i (PAL); 720x480_60i (NTSC) YPbPr: 1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
||
Bit rate |
0.500~19.500 Mbps |
||
Audio |
Encoding |
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,DD AC3 2.0 (Optional) AC3 Passthrough |
|
Interface |
1 Stereo /2 mono |
||
Sample rate |
48KHz |
||
Bit rate |
64, 96,128, 192, 256, 320, 384kbps |
||
DVB-T Modulator Section | |||||||
Standard |
DVB-T COFDM |
||||||
Bandwidth |
6M, 7M, 8M |
||||||
Constellation |
QPSK, 16QAM, 64QAM, |
||||||
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8. |
||||||
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||||
Transmission Mode: |
2K, 8K |
||||||
MER |
≥42dB |
||||||
RF frequency |
30~960MHz, 1KHz step |
||||||
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
||||||
DVB-C Modulator Section (Option) | |||||||
Standard |
J.83A (DVB-C) |
J.83B |
J.83C |
||||
Constellation |
16/32/64/128 /256 QAM |
64/ 256 QAM |
64/ 256 QAM |
||||
Bandwidth |
8M |
6M |
6M |
||||
MER |
≥43dB |
||||||
RF frequency |
30~960MHz, 1KHz step |
||||||
RF level |
-16~ -36dbm(71~91 dbµV), 0.1db step |
||||||
Symbol rate |
5000-9000 Ksps |
||||||
ATSC Modulator Section (Option) | |||||||
Standard |
ATSC A/53 |
||||||
MER |
≥42dB |
||||||
RF frequency |
30~960MHz, 1KHz step |
||||||
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
||||||
Constellation |
8VSB |
||||||
ISDB-T Modulator Section (Option) | |||||||
Standard |
ARIB STD-B31 |
||||||
Bandwidth |
6M |
||||||
Constellation |
DQPSK,QPSK, 16QAM, 64QAM |
||||||
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
||||||
Transmission Mode |
2K, 4K, 8K |
||||||
MER |
≥42dB |
||||||
RF frequency |
30~960MHz, 1KHz step |
||||||
RF output level |
-16~ -36 dBm (71~91 dbµV), 0.1db step |
||||||
System | |||||||
Management |
Local control: LCD + control buttons |
||||||
Language |
English |
||||||
LCN Insertion |
yes |
||||||
General | |||||||
Power supply |
DC 12V |
||||||
Dimensions |
144*238*52mm |
||||||
Weight |
Approx 1kg |
||||||
Operation temperature |
0~45℃ |
||||||
