8 Channel Encoder
- chengdu china
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Sichuan, China | Brand Name | DEXIN | |
| Model Number | NDS3228B |
Product Description
Specifications
Support 8 channel CVBS inputSupports MPTS or 8 SPTS IP Output
video:H.264/Mpeg2
audio: MP2, LC-AAC, HE-AAC
web-based NMS
About Dexin Digital Technology Co.,Ltd
Product Overview: H.264 / MPEG2 SD Encoder

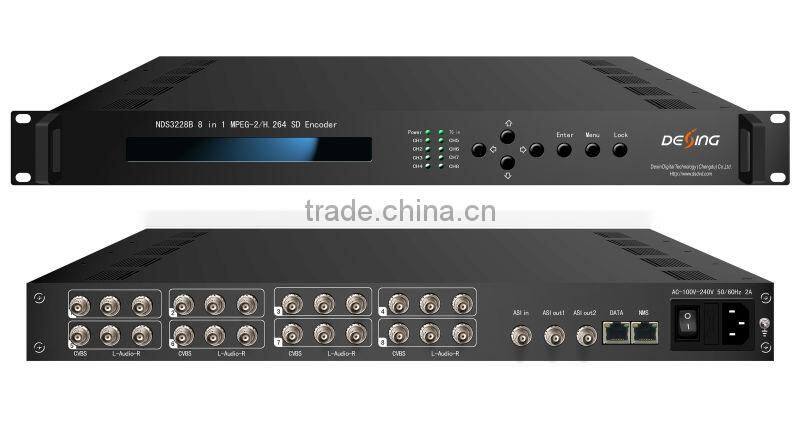

The DEXIN NDS3228B 8 in 1 MPEG-2/H.264 SD Encoder is our professional SD audio & video encoding and multiplexing device with powerful functionality. It has 8 independent channels of video input interfaces supporting MPEG-2 and H.264 encoding, and 8 pairs of unbalanced stereo audio inputs with MPEG-1 Audio layer 2 and LC-AAC, HE-AAC encoding. In addition, it has an ASI input and can multiplex the input TS with the 8 encoded SPTS to generate a MPTS output.
Key Features
* Support 8 CVBS input and 1 ASI Input for re-mux
* Support H.264 & Mpeg2 video encoding
* MPEG1 Audio Layer 2 & LC-AAC, HE-AAC audio encoding
* Support VBR/CBR video encoding
* Support Low Latency function
* Support PSI/SI editing and inserting
* Supports MPTS or 8 SPTS IP (UDP, RTP/RTSP) Output
* Supports IP null packet filter
* Real-time output bit-rate monitoring
* LCD / keyboard and web NMS operation
* Update device through NMS port
Technical Specifications
Input | 8 CVBS inputs , BNC interface | |||
8 pairs unbalanced stereo audio input, BNC interface | ||||
1 ASI input, BNC interface | ||||
Video | Resolution | PAL:720*576; NTSC: 720*480 | ||
Encoding | MPEG-2; H.264 | |||
Bit-rate | 0.5~15Mbps for H.264 encoding 1~15Mbps for MPEG-2 encoding | |||
Rate Control | CBR/VBR | |||
Aspect Ratio | 4:3, 16:9 | |||
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | |||
Audio | Encoding | MPEG1 Audio Layer 2; LC-AAC; HE-AAC | ||
Sampling rate | 48KHz | |||
Bit-rate | 32Kb/s~384Kb/s for LC-AAC/ HE-AAC encoding (each channel); 64Kb/s~384Kb/s for Mpeg1 layer 2 encoding (each channel) | |||
Multiplexing | 1 ASI input multiplexed with local 8 channels of TS | |||
Stream output | 2*ASI output, BNC interface | |||
MPTS/8*SPTS over UDP or RTP/RTSP, 100Base-T Ethernet interface (UDP/RTP/RTSP unicast / multicast) | ||||
System function | Low Latency achieved (Normal, mode 1 and mode 2 optional) | |||
LCD/keyboard and Web-based NMS operating | ||||
Chinese-English control interface | ||||
Ethernet software & hardware upgrade | ||||
Miscellaneous | Dimension (W× L× H) | 482mm×455mm×44mm | ||
Approx weight | 4kg | |||
Temperature | 0~45°C(work), -20~80°C(Storage) | |||
Power | AC 100V-220V±10%, 50/60Hz | |||
Consumption | 25W | |||
