Help CenterNDS3218A 8 Channel Encoded Hdmi Input
Related Products
Specifications
8 channel encoded hdmi input;8 HDMI and 1 ASI Input;
mpeg4 avc/h.264 encoding;
ASI and IP output

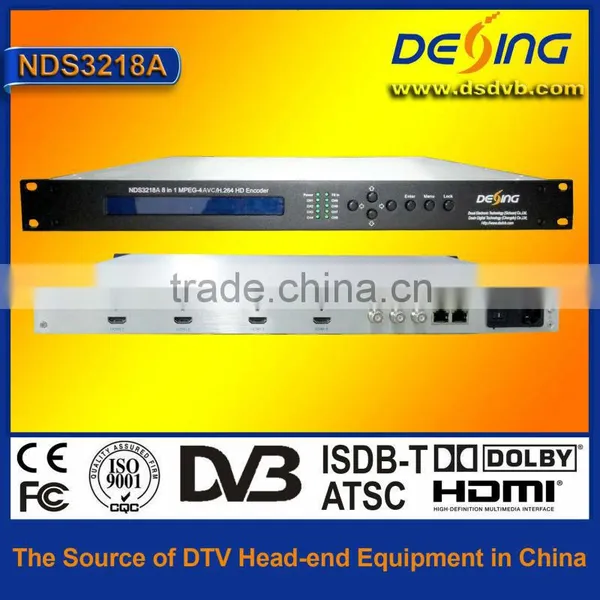

DEXIN NDS3218A 8 channel encoded hdmi input
Product Overview
The DEXIN NDS3218A 8-in-1 MPEG-4 AVC/H.264 HD encoder is our newest professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI channels input supporting MPEG4AVC/H.264 High Profile code format and 1 ASI input. It can multiplex the ASI input TS with the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
8 channels HDMI in
Key Features
- Support 8 HDMI channels input & 1 ASI Input
- Support H.264/AVC High Profile Level 4.0 video encoding
- Audio: MPEG1 Layer 2 (HE-AAC V2/AAC-LC optional)
- Support PSI/SI editing and inserting
- Support VBR/CBR video encoding
- Support MPTS or 8 SPTS UDP IP Output
- Support IP null packet filter
- Real-time output bit-rate monitoring
- LCD / keyboard and SNMP control
- Update device through NMS port
Specifications
Input |
8×HDMI inputs |
|||
1 ASI input, BNC interface | ||||
Video |
Resolution |
1920*1080_60p, 1920*1080_50p |
||
1920×1080_60i, 1920×1080_50i | ||||
1280×720_60p, 1280×720_50p | ||||
Encoding |
MPEG4 AVC/H.264 High Profile Level 4.0 for HD |
|||
Bit-rate |
0.8Mbps~20Mbps (each channel) |
|||
Rate Control |
CBR/VBR |
|||
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|||
Audio |
Encoding |
MPEG-1 Layer 2 (HE-AAC V2/AAC-LC optional) |
||
Sampling rate |
48KHz |
|||
Bit-rate |
64Kb/s~384Kb/s each channel |
|||
Multiplexing |
1 ASI input multiplexed with local 8 channels of TS |
|||
Stream output |
2*ASI output, BNC interface |
|||
|
MPTS over UDP, 1000 Base-T Ethernet interface (UDP unicast / multicast); 8 SPTS (optional) | ||||
System function |
LCD/keyboard operating, NMS supporting |
|||
Chinese-English control interface | ||||
Ethernet software & hardware upgrade | ||||
Miscellaneous |
Dimension (W× L× H) |
440mm×410mm×44.5mm |
||
Approx weight |
4kgs |
|||
Temperature |
0~45°C(work), -20~80°C(Storage) |
|||
Power |
AC 100V-220V±10%, 50/60Hz |
|||
Consumption |
25W |
|||
