Home > Industrial Equipment & Components > Valve > Ball Valve > Wcb Flange Ball Valve Class 150

Wcb Flange Ball Valve Class 150

Name: Wcb Flange Ball Valve Class 150
Brand: Zhongyi Valve
SKU: 132531733
Availability: InStock

Wcb Flange Ball Valve Class 150 thumbnail-1

Wcb Flange Ball Valve Class 150 thumbnail-2

Wcb Flange Ball Valve Class 150 thumbnail-3

Wcb Flange Ball Valve Class 150 thumbnail-4

Wcb Flange Ball Valve Class 150 thumbnail-5

US$ 2.91 - 121.71 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Ball

Pressure:

Medium Pressure

Contact Supplier Request Quote Chat Now

Cangzhou Zhongyi Valve Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Ball

Pressure Medium Pressure

Power Manual

Material Stainless Steel

Temperature of Media Medium Temperature

Media Other, oil,gas, water

Port Size 1/2 to 12 inch

Place of Origin Hebei, China

Model Number F2F15H

Brand Name Zhongyi Valve

Application General

Carbon steel flanged ball valve product description:

1.SIZE: DN25-DN100 (1/2 to 12 inch)

2.Material: SS202,SS304,SS316,CF8,CF8M,CF3M,WCB

3.Pressure: 150lb

4.IS0 5211 direct mounting pad

5. Media: Chemical media,Pulp,water,oil,gas

6.Seat: SS316+STL,PTFE,

7.Body: Investment Casing

8.Fire safe:API607 4th Edition(optional)

9.Got ISO. CE and watermark Certification

10.Design and manufacture:ASME B16.34

11. Applicable temperature: -40C~180C

12.locking device handle available

13.Blot-out proof stem

14.All size are full port

15.Testing according to API-598

16.Anti-static debices for ball-stem-body

Carbon steel flanged ball valve material list:

Item	Parts	Material
1	Body	ASTM A351 CF8M	ASTM A216 WCB
2	Cap	ASTM A351 CF8M	ASTM A216 WCB
3	Ball	ASTM A351 CF8M	ASTM A351 CF8M
4	Seat	R-PTFE	R-PTFE
5	Stem	ASTM A182 F316	ASTM A182 F316
6	Body gasket	PTFE	PTFE
7	Thrust washer	R-PTFE	R-PTFE
8	Stem bearing	PTFE	PTFE
9	Packing	PTFE	PTFE
10	Gland	ASTM A182 F304	ASTM A182 F304
11	Belleville washer	ANSI 301	ANSI 301
12	Nut	ASTM A194 Cr8	ASTM A194 2H
13	Locking device	ANSI 304	ANSI 304
14	Stop-lock-Cap	ANSI 304	ANSI 304
15	Handle	ANSI 304	ANSI 304
16	Stop Blot	ASTM A193 B8	ASTM A193 B7
17	Handle sleeve	Plastic	Plastic
18	Anti-static	ANSI 304	ANSI 304

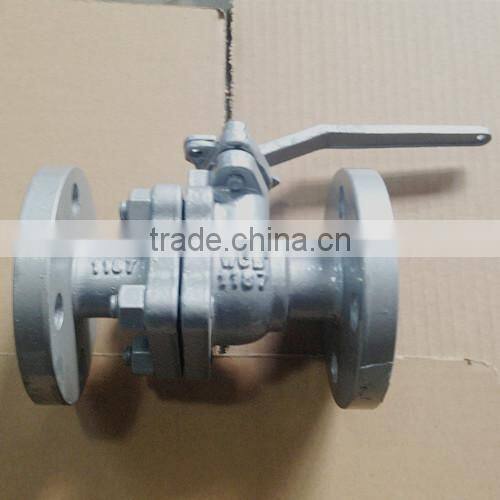

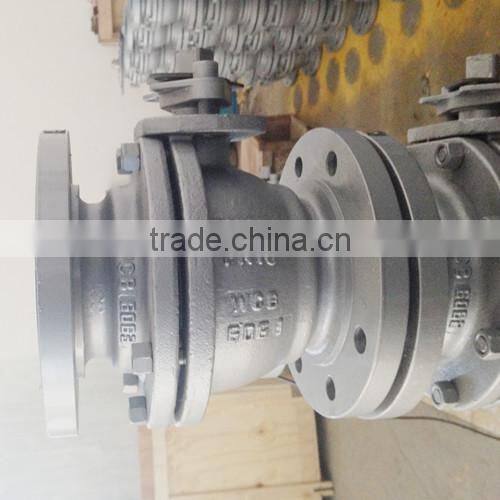

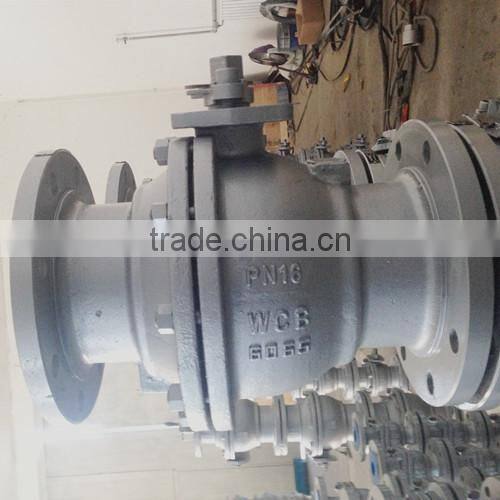

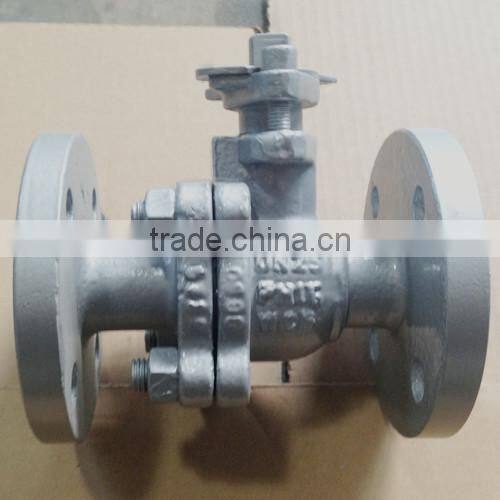

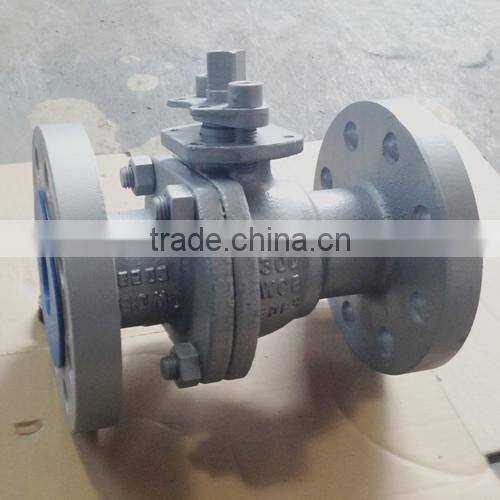

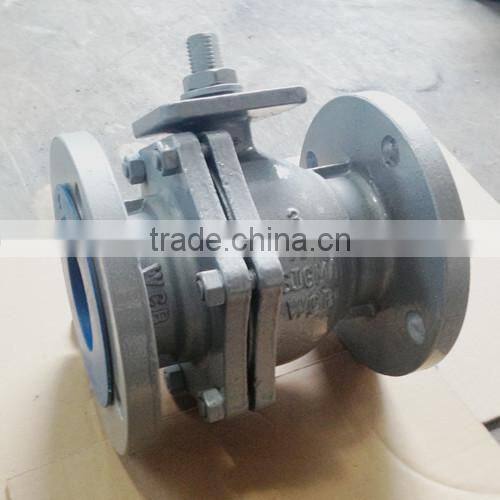

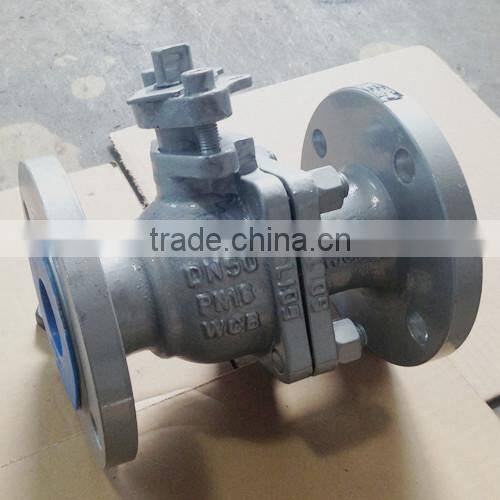

Carbon steel flanged ball valve picture:

Carbon steel flanged ball valve workshop:

Carbon steel flanged ball valve Corner assembly:

Carbon steel flanged ball valve Packaging and shipping:

Carbon steel flanged ball valve FAQ:

1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in cangzhou city, Hebei province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
If you have any questions, you can always send me information that I have received will respond promptly.
