Help CenterHydraulic Wafer High Pressure 4 Inch Ball Valve
Related Products
-
Stainless Steel Ball Valve 3 Way ANSI Flange Ball Valve Manual Ball ValveUS$ 1 - 500MOQ: 5 Sets -
6 Inch Pneumatic Control Flange End Stainless Steel 3 Way Ball ValveUS$ 1 - 500MOQ: 5 Sets
-
Flanged Floating Stainless Steel 3 Way Ball Valve 4 Inch PriceUS$ 1 - 500MOQ: 5 Sets
-
API DIN JIS Flanged Floating WCB Cast Steel cs Ball ValveUS$ 2.91 - 121.71MOQ: 50 Pieces
-
Manufacturer of Stainless Steel 2pc Thread Ball ValveUS$ 2.5 - 130.5MOQ: 50 Pieces
Wafer Ball Valve product description: |
| 1.SIZE: DN15-DN100 |
| 2.Material: SS304,SS316,CF8,CF8M,CF3M,WCB |
| 3.Pressure: PN16/PN40 |
| 4.Design and manufacture:DIN3357/1,2,EN12516-1 |
| 5. Media: Chemical media,Pulp,water,oil,gas |
| 6.Seat: SS316+STL,PTFE, |
| 7.Body: Investment Casing |
| 8.DIN PN40 (DN15~DN50) |
| 9.DIN PN16(DN65~DN300) |
| 10.Face to face DIN3202 |
| 11. Applicable temperature: -40C~180C |
| 12.locking device handle available |
| 13.Blot-out proof stem |
| 14.All size are full port |
| 15.Testing according to DIN3230/3,EN12266 |
| 16.Anti-static debices for ball-stem-body |
wafer ball valve material list:
| Item | Parts | Material | |
| 1 | Body | 1.4408 | 1.0619 |
| 2 | Cap | 1.4408 | 1.0619 |
| 3 | Ball | ASTM A351 CF8M | ASTM A351 CF8M |
| 4 | Seat | R-PTFE | R-PTFE |
| 5 | Stem | ASTM A182 F316 | ASTM A182 F316 |
| 6 | Body gasket | PTFE | PTFE |
| 7 | Thrust washer | R-PTFE | R-PTFE |
| 8 | Stem bearing | PTFE | PTFE |
| 9 | Packing | PTFE | PTFE |
| 10 | Gland | ASTM A182 F304 | ASTM A182 F304 |
| 11 | Belleville washer | ANSI 301 | ANSI 301 |
| 12 | Nut | ASTM A194 Cr8 | ASTM A194 2H |
| 13 | Locking device | ANSI 304 | ANSI 304 |
| 14 | Stop-lock-Cap | ANSI 304 | ANSI 304 |
| 15 | Handle | ANSI 304 | ANSI 304 |
| 16 | Stop Blot | ASTM A193 B8 | ASTM A193 B7 |
| 17 | Handle sleeve | Plastic | Plastic |
| 18 | Anti-static | ANSI 304 | ANSI 304 |

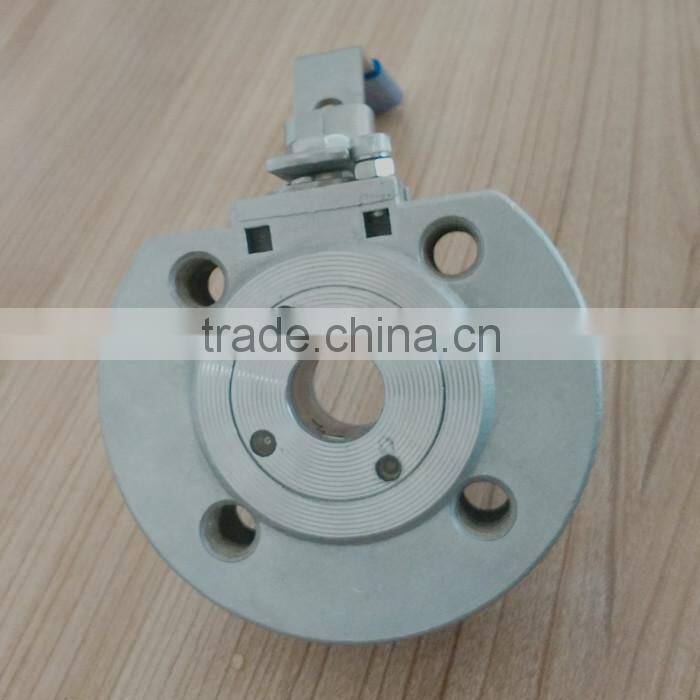

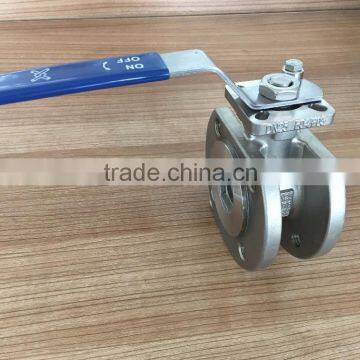

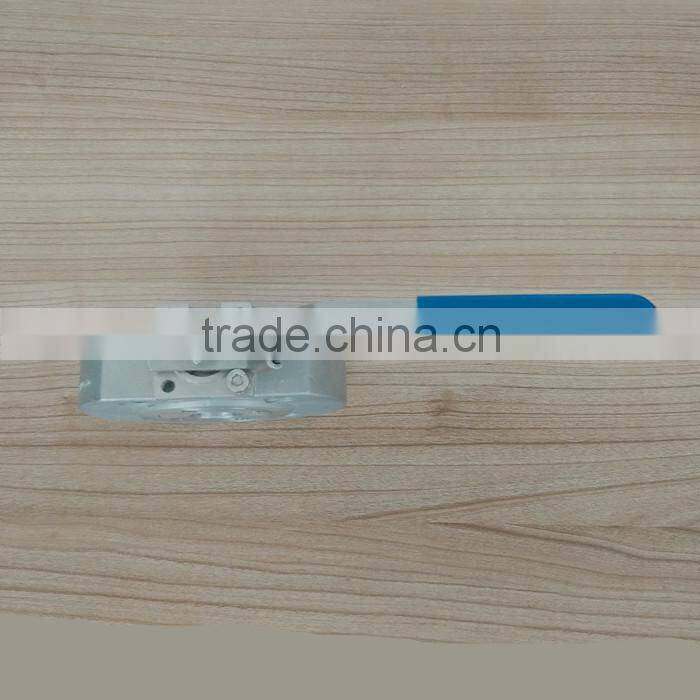

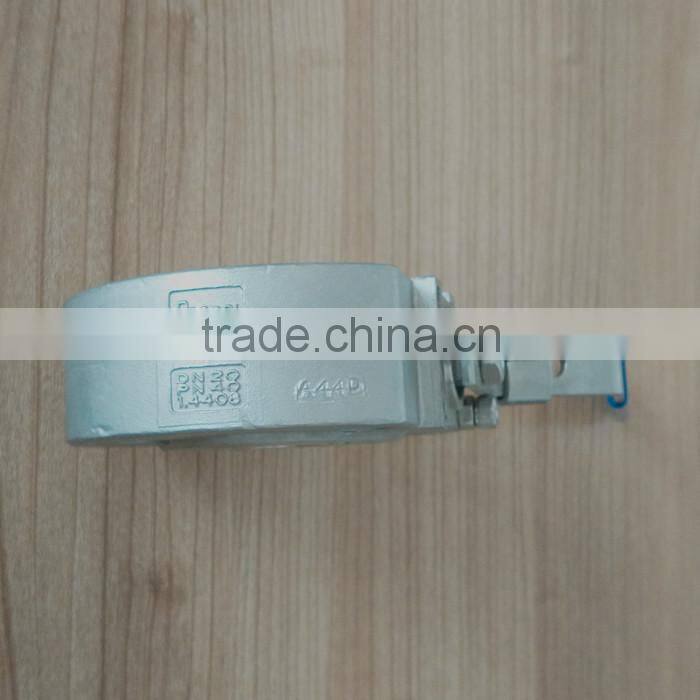

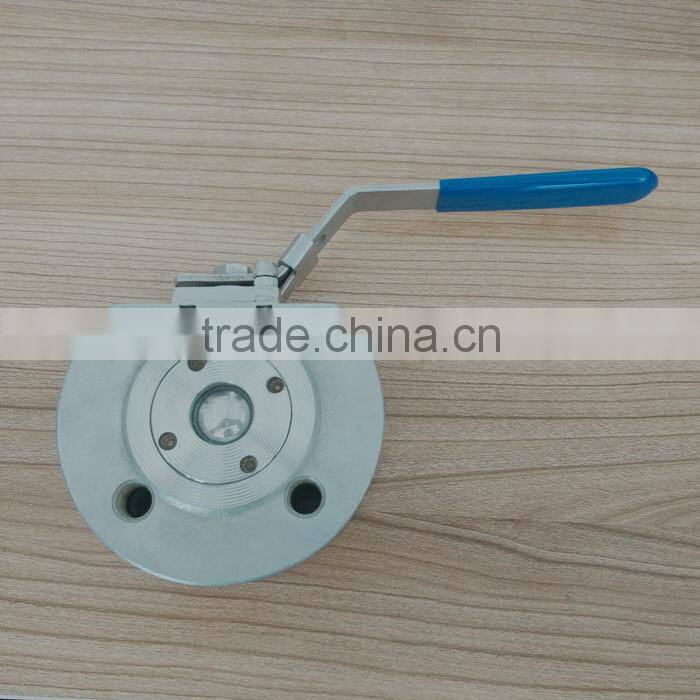

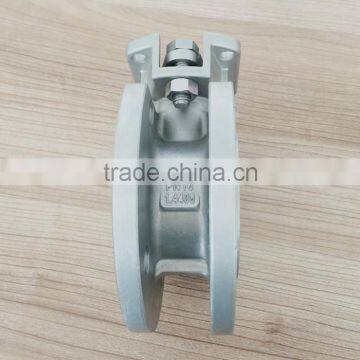

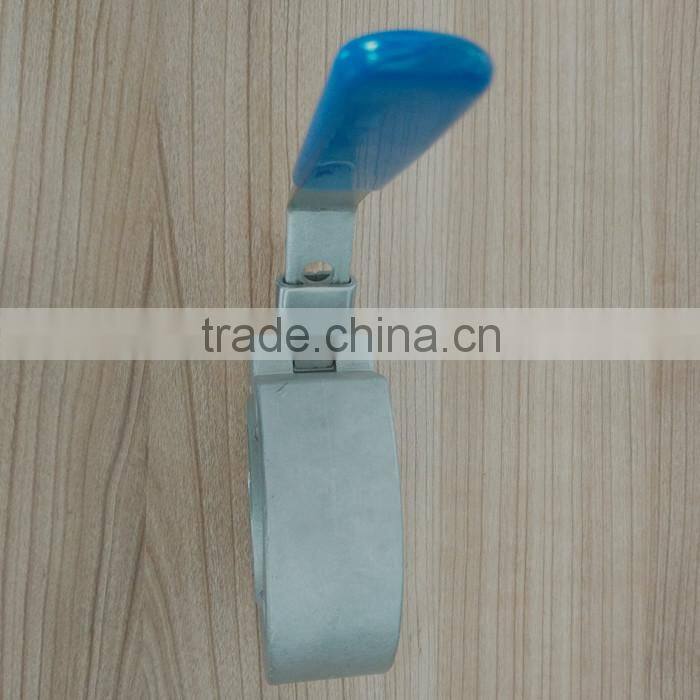

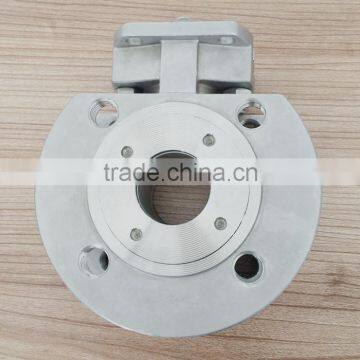

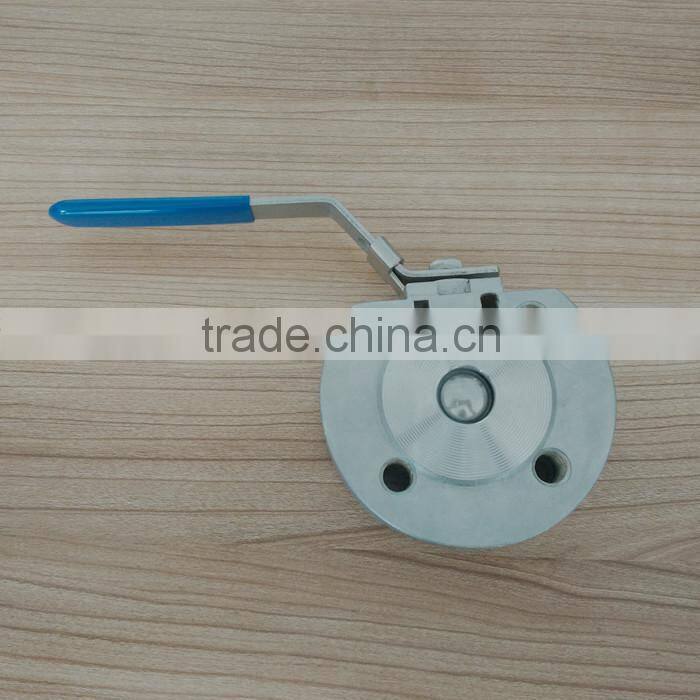

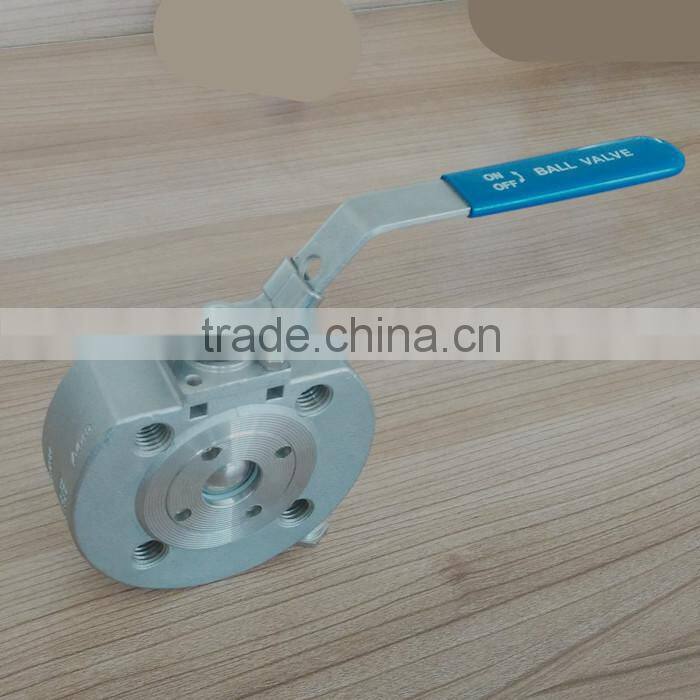

wafer ball valve picture:
wafer ball valve FAQ:
1. Q: Do you have your own factory?
A: Yes, we have. Our factory located in cangzhou city, Hebei province.
2. Q: How can I visit your factory?
A: Before you take off from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
3. Q: Do you provide free sample?
A: Usually we do not offer free sample
4. Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.
5. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
6. Q: How do you overcome the anti-dumping and countervailing duties?
A: We can use original Taiwan ball valve, and provide Certificate of Origin of Taiwan.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
We keep high quality ball valve!
We offer ball valve competetive price!
We are good in after-sales service!
If you have any questions, you can always send me information that I have received will respond promptly.
Warm tips:
If you are interested in our products, please send us an inquiry,
Please mention below information
Item model or main feature description
order quantity
Instant contact
S kype:zhongyivalve
Email:zhongyivalve(at)
