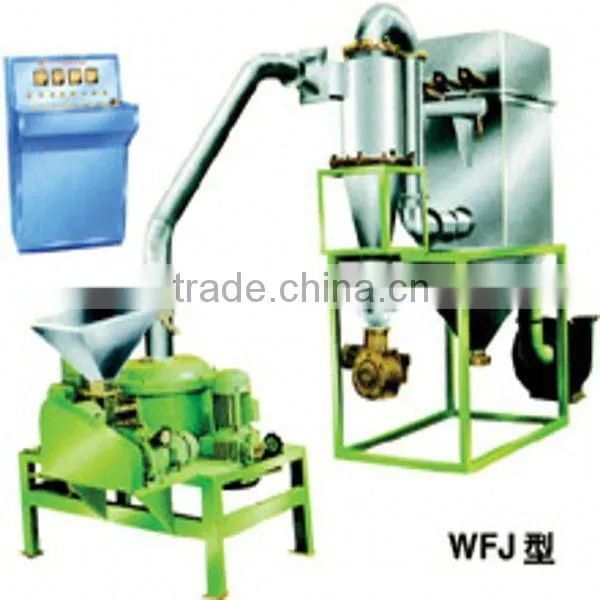

WFJ Series Tiny Grinder drying machine
Descriptions:
This machine has wide application and is wide used for pharmaceutical industry, chemical industry, pesticide industry foodstuff industry, grain industry, grain industry and so on. This machine uses the relative motion between movable and fixed teeth disc, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials, finally the raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency. The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh. Moreover model 30BV is made from stainless steel. Its inner wall is processed finely, so it is smooth and level. It overcome the shortcoming existed in model 30B III such as roughtness, accumulated powder. It makes the products of medicines, foodstuff and chemicals and so on are in conformity with the requirements of standard and meet the requirements of GMP.
Applications
Make the dry or wet granule uniform. Crush the whole conglomeration. Make granule. Crush heat sensitivity raw materials.
Technical parameters
Model |
WFJ-15 |
WFJ-18 |
WFJ-36 |
WFJ-60 |
Capacity of producing |
10-200 |
20-450 |
60-1000 |
100-1500 |
Diameter of materials inlet |
less than12 |
less than12 |
less than15 |
less than18 |
Diameter of materials outlet) |
80-320 |
80-450 |
80-450 |
80-450 |
Total power |
13.7 |
19.07 |
38.85 |
65.2 |
Main revolution |
4500 |
4480 |
4000 |
4000 |
overall dimension |
5410×2130×3115 |
5800×2500×3500 |
9000×2800×4000 |
9000×2700×5280 |
