Specifications
WLDH Series Horizontal Ribbon Mixer.High-effeciency
.High-quality
.low-pullution
.Save energy

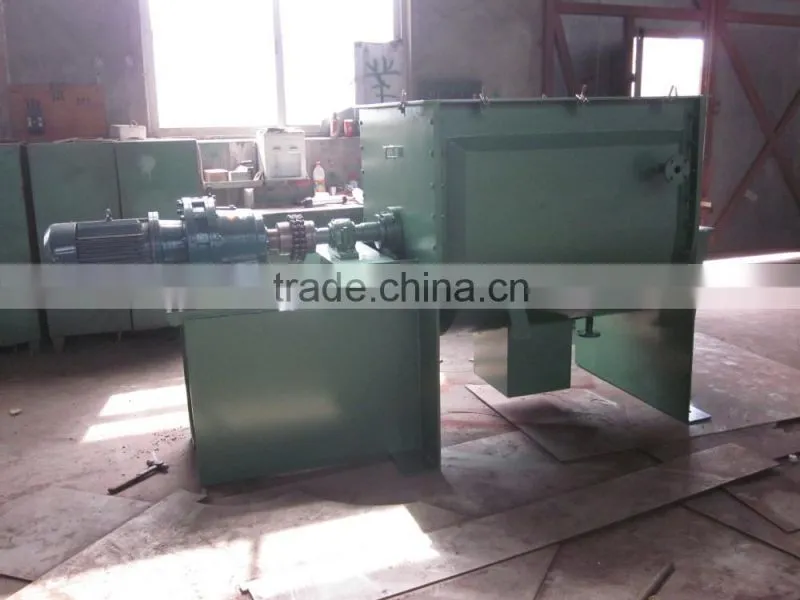

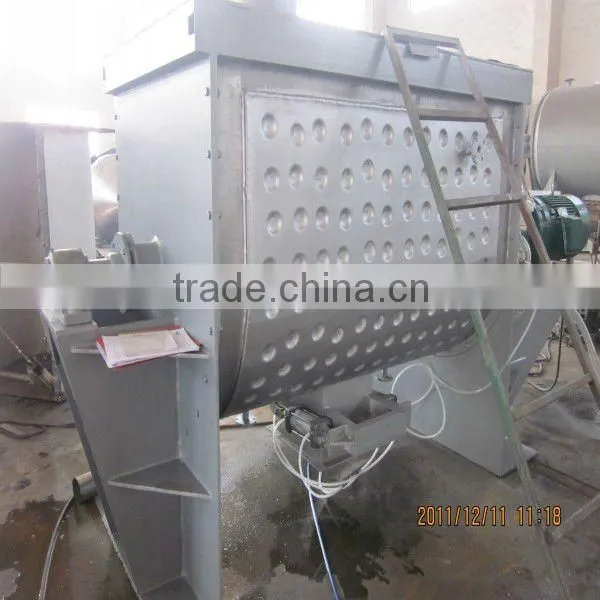

All industries Product Type and Ribbon Mixer Type tea blending machine
1. The principle of work
The machine by containers, spiral mixing blades and transmission components: spiral leaf is made of double or layer 3, outer spiral will material from two sides to, theinner ribbon material from the central on both sides of the conveying, form convection mix.
2.Product features
Load factor is big, equipment cover an area of an area small; Mixed sticky or has condensed sex material, cleaning difficult.
3.Application example
Used for mixing of powdery or wet sex material, make the different proportion of the mixing materials. This machine is the contact point and material are made of stainless steel, paddle blade and barrel body small clearances, mixed no dead Angle, mixing materials shaft sealing device at both ends, can prevent material leaking, widely used in pharmaceutical, chemical, food and other industries.
4.Technical parameters
Type |
Once mixing(Kg) |
Motor power(Kw) |
Weight(Kg) |
WLDH-0.1 |
30-50 |
1.5-4 |
300 |
WLDH-0.5 |
200-300 |
4-11 |
900 |
WLDH-1 |
400-600 |
7.5-15 |
1400 |
WLDH-1.5 |
600-900 |
11-18.5 |
1900 |
WLDH-2 |
800-1200 |
15-22 |
2500 |
WLDH-3 |
1200-1800 |
18.5-30 |
3100 |
WLDH-4 |
1600-2400 |
22-37 |
3600 |
WLDH-6 |
2400-3600 |
37-55 |
5300 |
WLDH-8 |
2400-3600 |
37-55 |
6800 |
WLDH-10 |
4000-6000 |
45-75 |
7800 |
1.Accept OEM service
2.Engineers available to service machinery overseas
