Specifications
EYH Series Planetary Motion Mixer1.no pollution with high quality
2.High efficiency
3.powerful drying
4.wide application

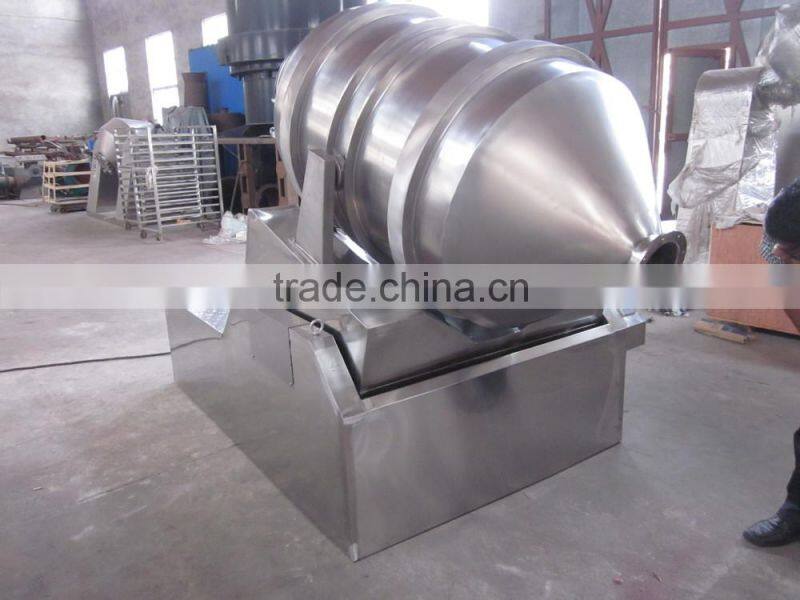

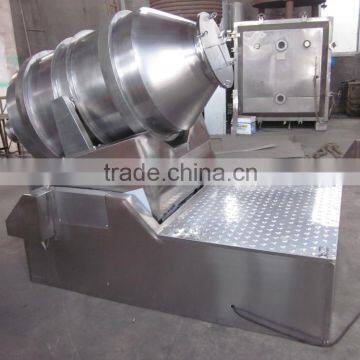

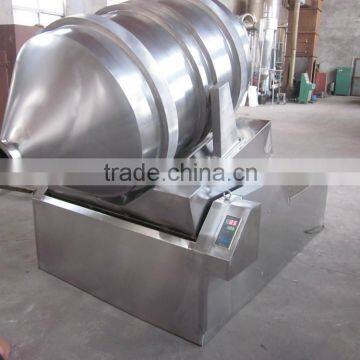

EYH Series Planetary Motion Mixer
Principles:
Two dimensioal mixer mainly consists of three big parts. manely,rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating power system to make the cylinder rotate. The swingingrack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Features:
The rotating cylinder of EYH Two Dimensional Mixer can make two motions at the same time.One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As a result of these two motions,materials Mixer is suitable for mixing of all powder and granule materials.
Technical parameters
Type |
Volume(L) |
Loading factor |
Weight of loading material(kg) |
Overall size(mm) |
power(kw) |
||||||
A |
B |
C |
D |
M |
H |
stirring |
swinging |
||||
EYH100 |
100 |
0.5 |
40 |
860 |
900 |
200 |
400 |
1000 |
1500 |
1.1 |
0.75 |
EYH300 |
300 |
0.5 |
75 |
1000 |
1100 |
200 |
580 |
1400 |
1650 |
1.1 |
0.75 |
EYH600 |
600 |
0.5 |
150 |
1300 |
1250 |
240 |
720 |
1800 |
1850 |
1.5 |
1.1 |
EYH800 |
800 |
0.5 |
200 |
1400 |
1350 |
240 |
810 |
1970 |
2100 |
1.5 |
1.1 |
EYH1000 |
1000 |
0.5 |
350 |
1500 |
1390 |
240 |
850 |
2040 |
2180 |
2.2 |
1.5 |
EYH1500 |
1500 |
0.5 |
550 |
1800 |
1550 |
240 |
980 |
2340 |
2280 |
3 |
1.5 |
EYH2000 |
2000 |
0.5 |
750 |
2000 |
1670 |
240 |
1100 |
2540 |
2440 |
3 |
2.2 |
EYH2500 |
2500 |
0.5 |
950 |
2200 |
1850 |
240 |
1160 |
2760 |
2600 |
4 |
2.2 |
EYH3000 |
3000 |
0.5 |
1100 |
2400 |
1910 |
280 |
1220 |
2960 |
2640 |
5 |
4 |
EYH5000 |
5000 |
0.5 |
1800 |
2700 |
2290 |
300 |
1440 |
3530 |
3000 |
7.5 |
5 .5 |
EYH10000 |
10000 |
0.5 |
3000 |
3200 |
2700 |
360 |
1800 |
4240 |
4000 |
15 |
11 |
EYH15000 |
15000 |
0.5 |
5000 |
3500 |
3000 |
360 |
2100 |
5000 |
4400 |
18.5 |
15 |
1.Accept OEM service
2.Engineers available to service machinery overseas
