Specifications
varnished wire1.Dia:a:1-10mm;b:3-16mmlours:goldredbluegreen
3.Standard:IEC,GB,NEMA,JIS

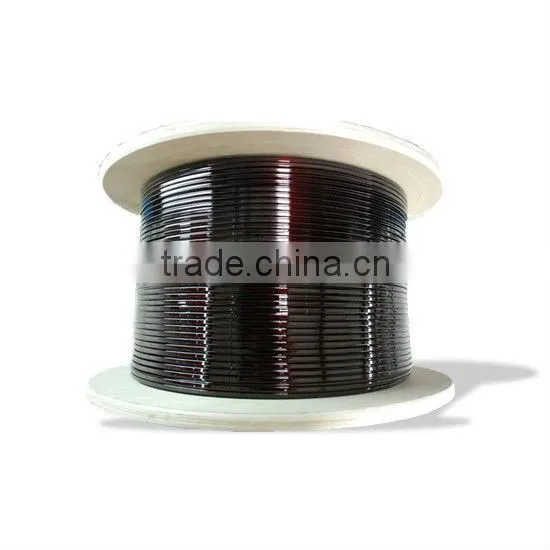

varnished wire
Aluminium flat wire is produced by processing aluminum bar through our continuous conforming technology, then coating the wire with several layers of enamel insulation as per the specified requirements. Aluminium flat wire is used in the windings of transformers, generators, motors and other electrical equipment.
Certifications of enamelled aluminium wire :
The mechanical, electrical and chemical characteristics of aluminium flat wire differ from those of
Aluminium magnet wire because of the inherent differences in the conductor materials. These
differences are reflected in certain test procedures and/or performance requirements for aluminium
flat wire , such as elongation, adherence and flexibility, heat shock, scrape resistance, continuity
and thermal endurance .
Producing Process of enamelled aluminium wire
Technical test iterms about enamelled aluminium wire
Maximum Overall Diameter, Conductor Diameter, Film Thickness, Conductor Resistance, Elongation, Spring Back, Mandrel Winding, Sudden Jerk, Cut Through, Heat Shock, Room Temperature Breakdown Voltage, High Voltage Hole, and Pin-Hole etc .
Name |
Enameled Aluminum flat Wire |
|||
Model |
Q(Z/Y)LB-2/180 |
|||
Diameter |
2mm*6mm |
|||
Standard |
MW36-A |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Bare Conductor |
a |
mm |
±0.03 |
2.01 |
b |
mm |
±1% |
6.03 |
|
Thickness of insulation film |
a |
mm |
0.102-0.152 |
0.115 |
b |
mm |
0.127-0.178 |
0.160 |
|
resistance |
Ω/m |
≤0.02785 |
0.02776 |
|
Elongation |
|
>15% |
21% |
|
Flexibility and adhesion |
|
15% No cracking |
no cracking |
|
Resistance to heat shock |
C |
200C insulation film no cracking |
Tensing 10% half an hour, no cracking |
|
Resistance to solvent |
|
Standard solvent “H” Pencil |
2H is ok |
|
Breakdown Voltage |
KV |
2.5 KV |
4.8,4.9,4.6,4.2 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Aluminum flat wire Main Export to Hongkong, Singapore, Indonesia, Sri Lanka, Vietnam, Thailand, Turkey, UK, Hungary, Romania, Croatia, Greece, Egypt, USA, Canada, Brazil, Argentina, Zambia, Colombia, Dominican republic,
