Help CenterPerfect Performance Insulation Paper for Motor Winding
Related Products
-
UL Paper Covered Copper Electrical Wiring for MotorUS$ 3.5 - 4.76MOQ: 400 Kilograms -
Nomex Paper Covered Copper WireUS$ 9.15 - 9.35MOQ: 400 Kilograms
-
Class 105 Paper Covered Copper WireUS$ 9.15 - 9.35MOQ: 400 Kilograms
-
Class 220 Paper Covered Copper WireUS$ 9.15 - 9.35MOQ: 400 Kilograms
-
Supply Craft Paper Covered Aluminum and Cooper Wire for TransformerUS$ 3.5 - 9.5MOQ: 400 Kilograms
Specifications
insulation paper for motor windingSpecification; a 0.8-5.0mm;b 2.0-16mm
Standard: IEC GB NEMA
Feature: uniform wrapping

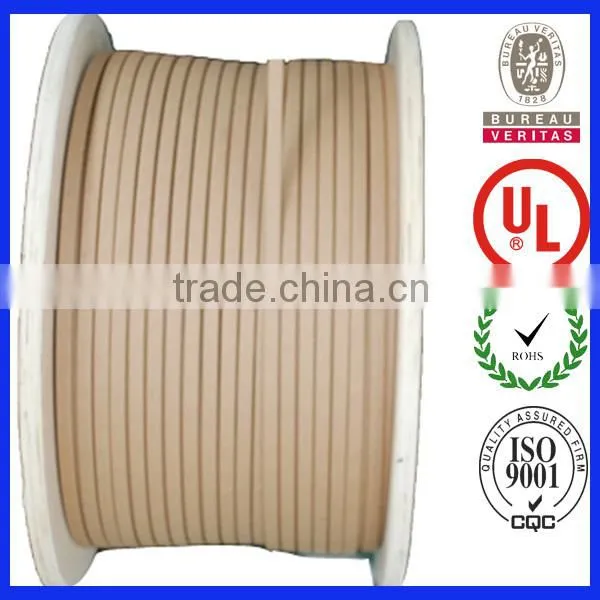

perfect performance insulation paper for motor winding
Size of insulation paper for motor winding
a 0.8—5.0mm
b 2.0—16mm
Thermal class of insulation paper for motor winding
90/105/ 120 /130 /180/ 220
insulation materials of insulation paper for motor winding
Brief description of insulation paper for motor winding
| Standards | IEC GB NEMA |
| Insulation Thickness | 0.27mm, 0.33mm, 0.45mm or according the customer requirement |
| Characteristics | Uniform ,Fastness wrapping, tightness, uniformity, without drape |
Manufacturing process of insulation paper for motor winding
Applications of insulation paper for motor winding
Reactor. Motor
Oil-immersed Transformer
Generator and other electric devices
Packing
inner packing: different wooden spool according to wire guage
Out packing: wooden cases or according the requirement of customer
Test equipment ensure insulation paper for motor winding that are qualified
Test report of insulation paper for motor winding
Name |
insulation paper for motor winding |
|||
Diameter |
3.6mm*8.5mm |
|||
Standard |
GB/T7673.3-2008 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
Uniform, no missing layer, no wrinkling and cracking |
Ok |
|
Bare Conductor |
a |
mm |
±0.05 |
3.605 |
b |
mm |
±0.07 |
8.495 |
|
Thickness of insulation film |
mm |
0.405----0.45 ----0.50 |
0.48 |
|
springback angle |
° |
The springback Angle of conductors less than 5° |
4.6 |
|
Resistivity (20°C) |
Ω.mm2/m |
≤0.017241 |
0.017160 |
|
Elongation |
% |
a:nominaldiameter(mm) ≤2.5 30% >2.5 32% |
45% |
|
Wrapped overlapped |
mm |
≥2 |
2.3 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
Application
11. Best service
1) .Trail order is welcomed, you can test our quality before making large quantity, even though we are wholesales supplier
2). We issued test reports for every shipment.
3). You can enjoy discounting and priority to produce first after you become to be our regular client.
12. Company Advantage
1). About 20 years manufacture experiences.
2). Flat wire Audit by UL Company and BV Company
3). We have a big Quality Control Team and can guarantee the quality and time of delivery
4). Many trade companies place orders from us.
