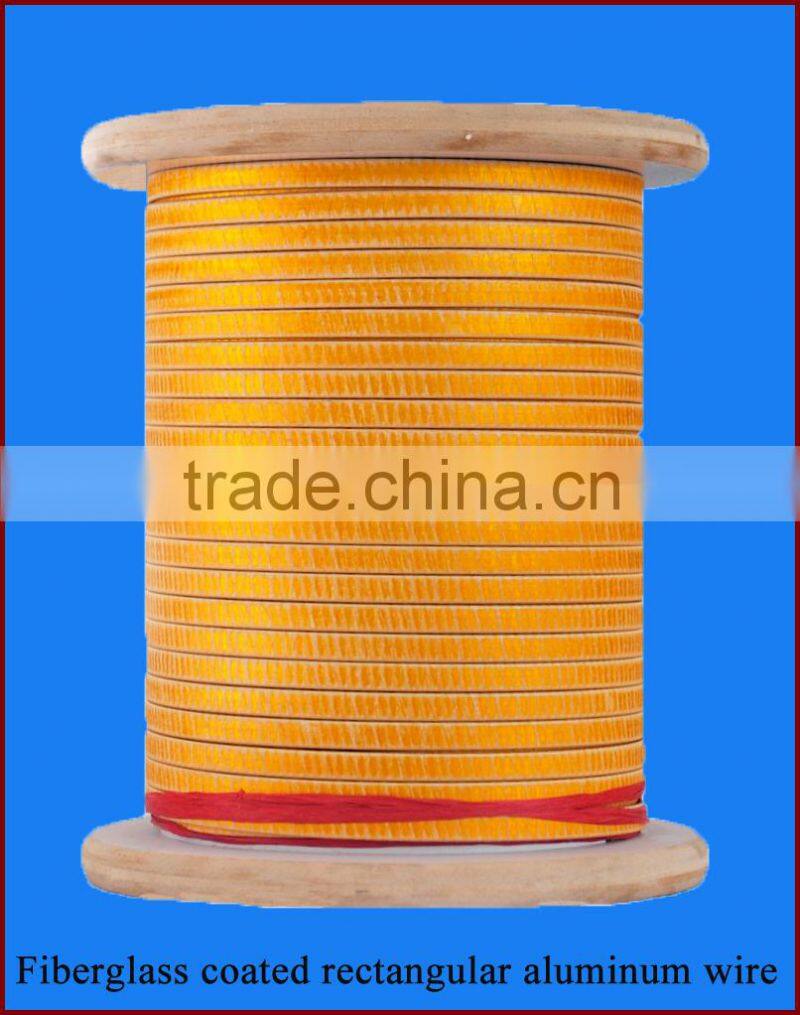

Fiberglass Coated Aluminum Electrical Wire for Motor and Generator

Name: Fiberglass Coated Aluminum Electrical Wire for Motor and Generator
Brand: HUAYUAN
Availability: InStock

FOB Price

US$ 9.1 - 9.3 / Kilogram

500 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	HUAYUAN
Model Number	GLEMLB	Type	Insulated
Application	Other, Transformer,Generator	Conductor Material	Aluminum
Conductor Type	Solid	Insulation Material	Fiberglass

Conductor Diameter:
Side A: 1-6.0mm / Side B: 2.0-16.0mm
Superiority:High breakdown voltage and good mechanical properties

Product Description

Specification :

Conductor: Aluminum .
Diameter: Side a:1-6mm Side b:2-16mm .

Standard: IEC, NEMA, GB .

Certification: UL Approved; ISO9001,ROHS Certificated .

Insulation: Polyimide film and fiberglass .

Advantages of fiberglass coated aluminum winding wire :

1.High quality and low price .

2.High breakdown voltage .

3.Good mechanical properties and excellent adherence .

4.Professional production and sales team .

5.IEC/GB/NEMA standards approved .

6.Excellent resistance to abrasion .

Test Report :

Name		fiberglass coated aluminum wire
Species		3.700×9.000
Test Item		Standard	unit	Test Result	Conclusion
Size	Max outside diameter	4.150×9.470	mm	4.144×9.381	OK
	Thickness	±0.050	mm	3.719	OK
	width	±0.070	mm	9.022	OK
Appearance		Uniform ,no missing layer, no wrinkling and cracking		No Defect	OK

Insulation Thickness		0.34--0.40--0.45	mm	0.425	OK
Resistivity(20ºC)		AL≤0.02785	Ω.mm²/m	0.02776	OK
Adherence		No crack in the insulation after 10% elongation		No cracking	OK
Elongation		≥17	%	35.5	OK
Breakdown Voltage		2.5	KV	6.2,6.5,7.5,6.8	OK
Packing		Meet the export standard		Meet the export standard	OK
Final Conclusion		OK

Production :
