1.20mm*2.85mm enameled copper wire composition,electric motor scrap prices,varnish for winding
TEST REPORT
Name |
1.90mm*3.60mm enameled copper tetragon wire |
||||
Type |
QZXYB-2/200 |
||||
Specification |
1.90×3.60 |
||||
Standard |
GB/T7095.4-2008 |
||||
Test Item |
Unit |
Technical requirement |
Test result |
||
Size |
Overall diameter |
mm |
2.085*3.805 |
2.053*3.770 |
|
Conductor |
Thickness(a) |
mm |
±0.030 |
1.928 |
|
Width(b) |
mm |
±0.050 |
3.610 |
||
Thickness of Insulation |
Thickness(a) |
mm |
0.120~0.170 |
0.125 |
|
Width(b) |
mm |
0.120~0.170 |
0.149 |
||
Electrical Resistance(20°C) |
Ω.mm2/m |
≤0.017241 |
0.01699 |
||
Flexibility and adhesion |
|
After the (cutting) stretched 15%, loss of adhesion of the film should not be greater than the distance 1b. |
Not loss adhesion |
||
Elongation |
% |
Size a ≤2.5 30% >2.5 32% |
42% |
||
Springback angle |
º |
≤5º |
4.0 |
||
Resistance to heat shock |
|
6a in diameter test rod bent broadside, No cracking after 220 ºC film processing. |
No cracking |
||
Breakdown Voltage at Room Temp |
KV |
In five breakdown voltage, four of all is ≥2.0KV, the last is ≥50%. |
3.9,6.6,6.8,4.1 |
||
packing |
Meet export standard |
||||
Result |
Up to standard |
||||
Rectangular wire
a:0.80mm-5.00mm
b:2.00mm-16.00mm
Good feature
l High temperature resistance
l Chemical corrosion resistance Transformer oil resistance
l Low temperature resistance Radiation resistance
l High breakdown voltage
l Good mechanical properties
Material
Drawing or extruding bare aluminum wire confirm to national standard, smooth surface, no defects .Good performance insulation varnish, polyester or polyester-imide insulation varnish as underlying coat, Polyamide-imide as superimposed coating.
Standard
l GB/T6109/IEC60317-0-1
l GB/T23312/IEC60317-0-3
l MW76-A
l MW35-A
Application
l Transformer
l Generator
l Refrigerating system
l Heat-resistant motor
l UPS power source
Certificate

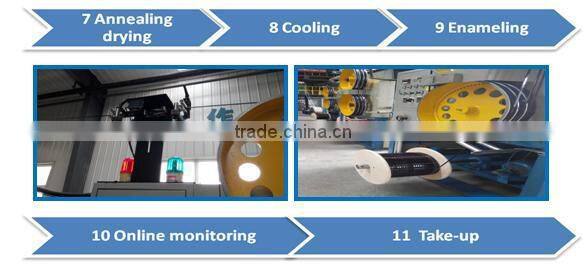

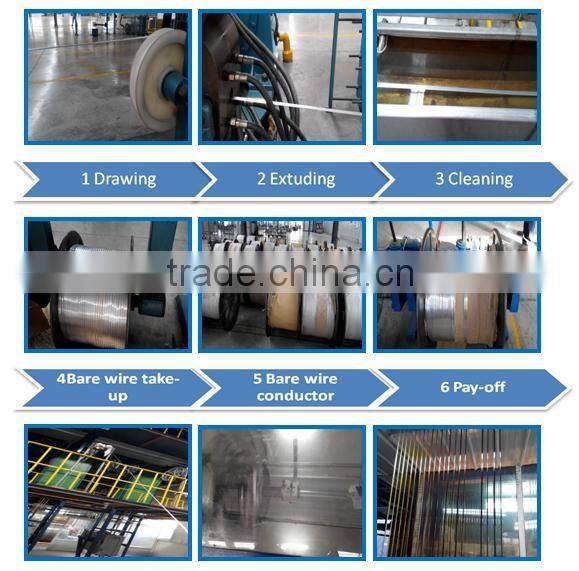

Production process

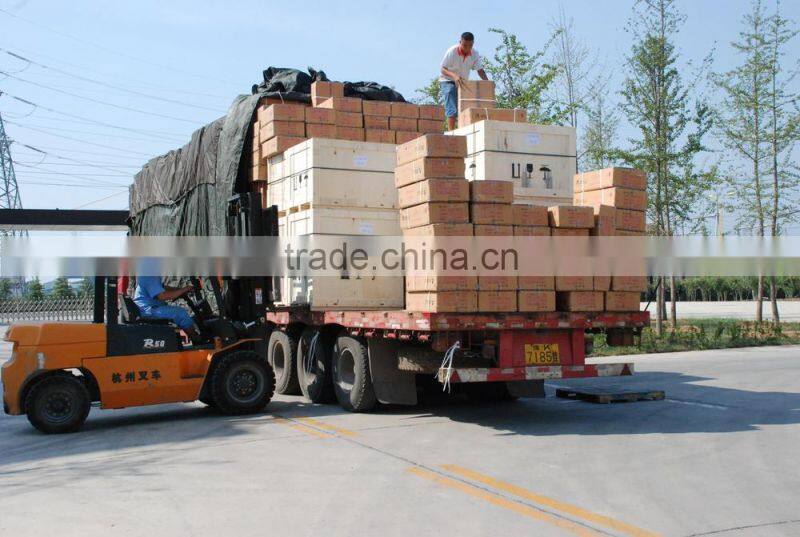

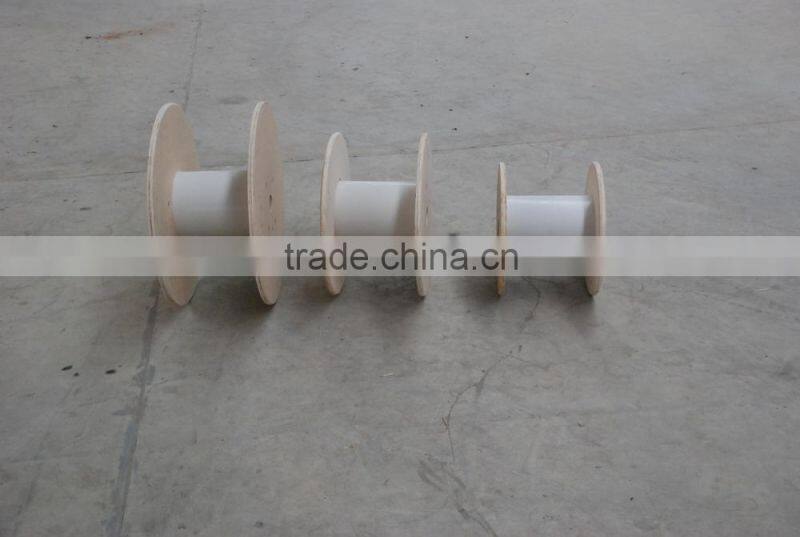

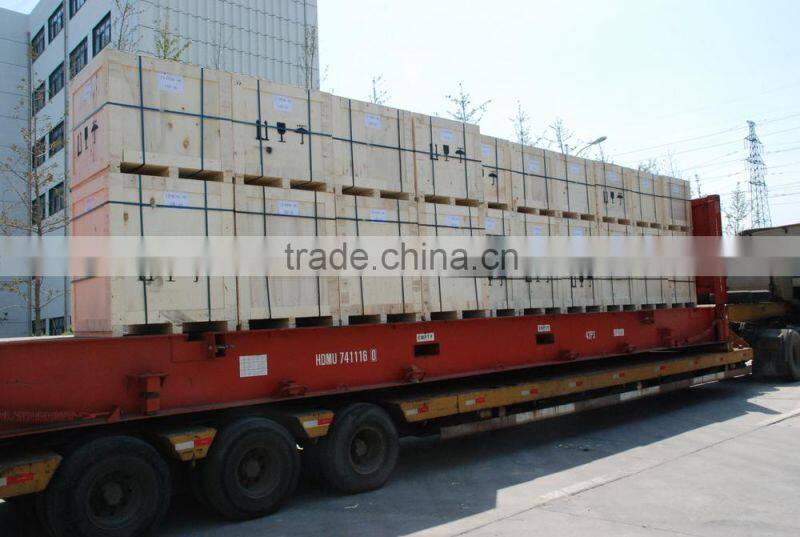

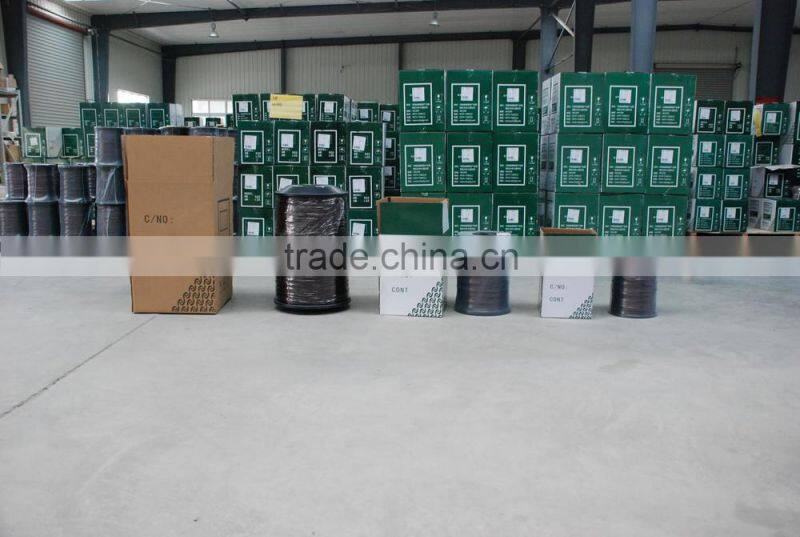

Packaging
l We have strong technical strength and develop new products continuously.
l We can supply very professional solution to our client.
lWe issued test reports for every shipment.
sample arrangement
l Enameled wire sample is free for customers,and sample freight is paid by customers.
Customized product: We have two editor for GB Standard.The customers shoud pay the mold cost firstly. When the order carried out we will refund the mold cost.
l Sample is free,its shipping time is 3-5days.
Brief introduction
Located in Yanling County, Henan Province Of China,Huayuan was established in 1993,has developed a professional manufacturer of Magnet Wires in China,and our products conform the standards of IEC, NEMA ,ROHS,ISO9001,UL.
Our team
You can choice other products.
The phone is on-line all day.
