Rectangular Copper Enameled Wire Class H for transformer
- 500 Ton / Tons per Month
- Tianjin Shanghai Qingdao
- T/T D/P D/A Credit Card
- STW STOW STOOW ST STO 600V PVC Flexible Cord USA Power Cord UL62 UL1581 Standard
- SEOOW SEOW SEW SE SEO SEOO 600V TPE Flexible Cord UL62 UL1581 Standard
- SPT-1, SPT-1W, SPT-2, SPT2-W, SPT-3 300V PVC Flexible Cord UL62 UL1581 Standard
- UL66 TFFN,TFN,TFF,TF Fixture Wire
- UL83 THHN THWN-2 THWN THHW Thermoplastic-Insulated Wires and Cable
- NM-B NMC-B 14/2,12/2,14/3,12/3, non-metallic sheathed cable
Product Details
Place of Origin: | Henan, China | Brand Name: | HUAYUAN- Rectangular Copper Enameled Wire Class H | Model Number: | HY-Rectangular Copper Enameled Wire Class H |
Type: | Insulated | Application: | Other, Motor,Transformer,Refrigerating system,UPS power source,Reactor | Conductor Material: | Copper |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description

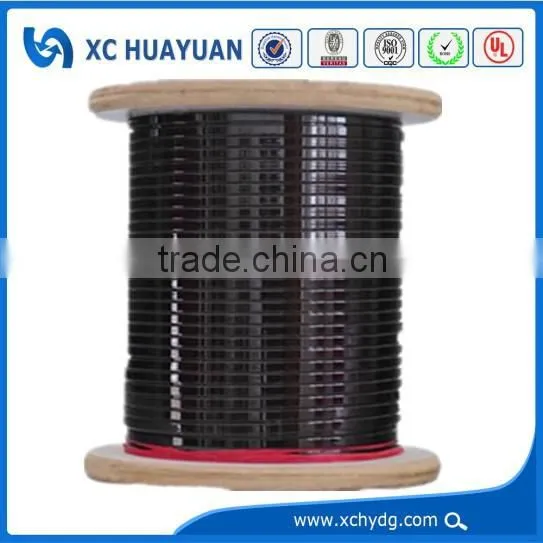

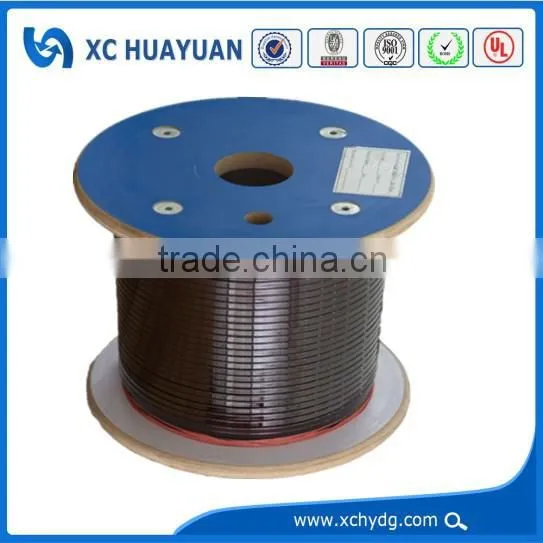

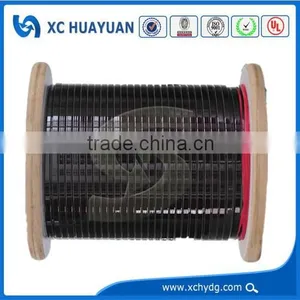

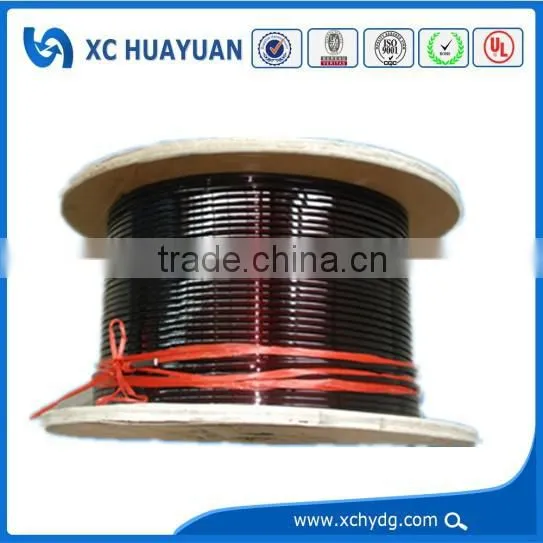

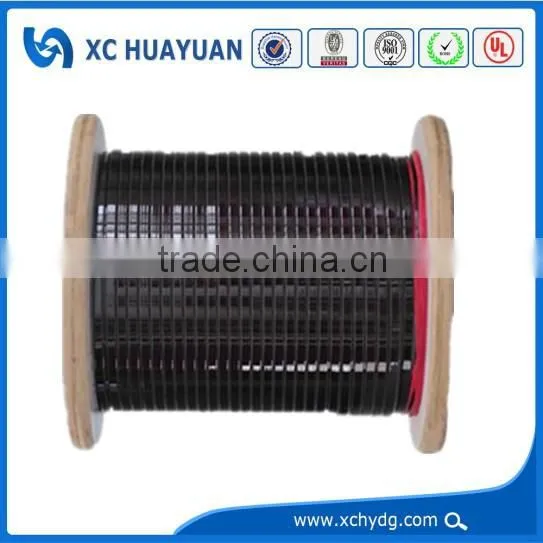

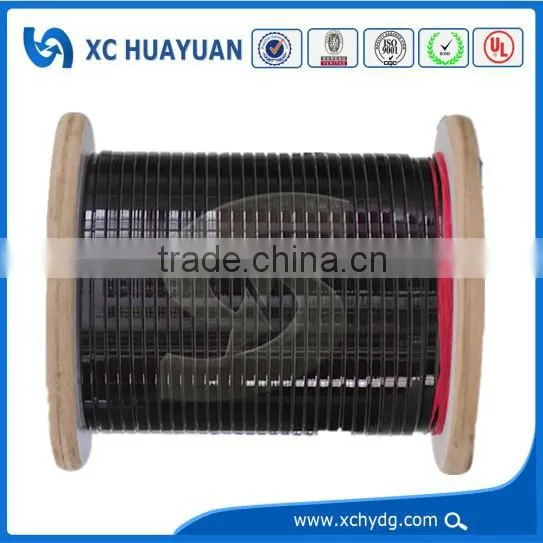

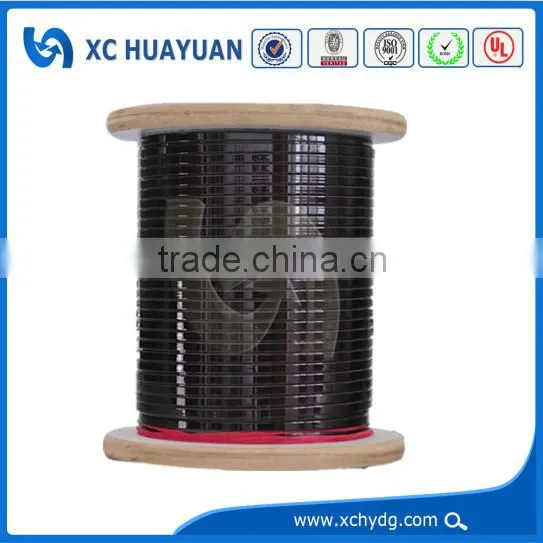

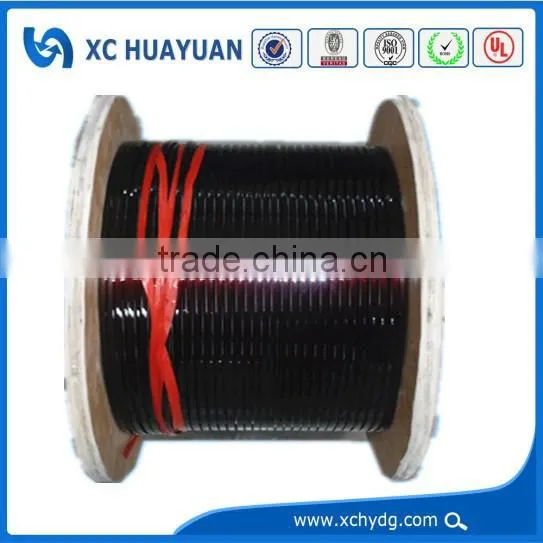

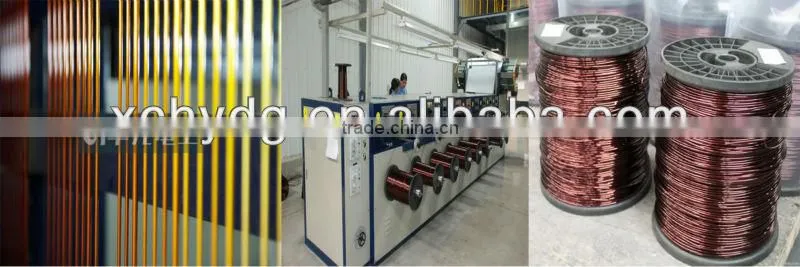

Rectangular Copper Enameled Wire Class H for transformer
Product detail picture
Name | Awg enamel wire | ||
Type | QZYL-2/180 | ||
Diameter | 1.29mm | ||
Standard | IEC60317 | ||
Test item | Unit | Technical Requirement | Test Result |
Appearance |
| Bright and clean, uniform color, | OK |
Overall Diameter | mm | <1.394 | 1.38mm |
Conductor Diameter | mm | ±0.013 | 1.30mm |
Thickness of Insulation film | mm | >0.068 | 0.08 |
Resistance | Ω/m | <0.02197 | 0.02062 |
Elongation |
| >15% | 27% |
Winding test |
| 3D No cracking | No cracking |
Tensile test |
|
----------
|
---------
|
Peel twist |
| Insulation film without losing adhesion | OK |
Jerk test |
| Insulation film without losing adhesion | OK |
Resistance to heat shock | C | 200C insulation film no cracking | 3D half an hour, no cracking |
Resistance to solvent |
| Standard solvent “H” Pencil | 2H is ok |
Breakdown voltage | KV | 5.0 KV | 7.7,8.3,8.9,8.1, |
Packing |
| Meet the export standard | OK |
Quality control result |
| OK |
1. Specifications of Rectangular Copper Enameled Wire Class H
Diameter: Round wire: 1.0-8.0mm
Flat wire: Thickness(a): 0.8mm-5.0mm, Width(b): 2-16mm
Standard: IEC, NEMA, GB
Thermal Class: 130/155/180/200/220 ºC
Certification: UL Approved, ROHS Authentication, ISO9001
2. Feature of Rectangular Copper Enameled Wire Class H
a) High temperature resistance
b) Chemical corrosion resistance
c) Transformer oil resistance
d) Low temperature resistance
e) Radiation resistance
f) High breakdown voltage
g) Good mechanical properties
3. Applications of Rectangular Copper Enameled Wire Class H : This kind of Polyester or polyestermide covered with polyamide-imide enameled round and flat aluminium wire class 180/200/220 can be used to make winding wire demanding light material, high electricity conductivity and good heat dispersing performance, especially for the winding wire for transferring high frequency signal, such household appliances as degaussing coil, high frequency transformer, common transformer and small electric motor
4. Produce process of Rectangular Copper Enameled Wire Class H
wire drawing bare wire payed off
ultrasonic cleaner softening oven cooling
enamelling take-up finished products
5. Packing about Rectangular Copper Enameled Wire Class H
Spool: PT15, PT25, PT30, PT60, PT200 or much big Plywood Wooden Spool
Film: High quality water-proof heat shrinkage film covered wire spools
Packing: Plastic spool loading in custom-made export carton then pack in Plywood Cases, at last bind it with Steel Strip
Your can choose natural packing or based on customers' requirement
6.Test reports of Rectangular Copper Enameled Wire Class H
Name | Awg enamel wire | ||
Type | QZYL-2/180 | ||
Diameter | 1.29mm | ||
Standard | IEC60317 | ||
Test item | Unit | Technical Requirement | Test Result |
Appearance |
| Bright and clean, uniform color, | OK |
Overall Diameter | mm | <1.394 | 1.38mm |
Conductor Diameter | mm | ±0.013 | 1.30mm |
Thickness of Insulation film | mm | >0.068 | 0.08 |
Resistance | Ω/m | <0.02197 | 0.02062 |
Elongation |
| >15% | 27% |
Winding test |
| 3D No cracking | No cracking |
Tensile test |
|
----------
|
---------
|
Peel twist |
| Insulation film without losing adhesion | OK |
Jerk test |
| Insulation film without losing adhesion | OK |
Resistance to heat shock | C | 200C insulation film no cracking | 3D half an hour, no cracking |
Resistance to solvent |
| Standard solvent “H” Pencil | 2H is ok |
Breakdown voltage | KV | 5.0 KV | 7.7,8.3,8.9,8.1, |
Packing |
| Meet the export standard | OK |
Quality control result |
| OK |
1).We can supply the largest range of Enameled Round Aluminum Wire, with diameters from 1.0 to 8.0 millimeters.
2).We are BV approved professional manufacturer of aluminium wire. We process in high quality only.
3).The vanish we use is ELANTAS to gurantee the quality.
4).We have passed the ISO 9001 (00112Q213049R1M/4100) and ROSH certification.
5).Some of our products are UL listed (OBMW2.E317671).
6) We can supply samples to test quality
Q1. Different thermal class wire, whether their price is the same ?
Their price is different based on different thermal class, because the varnish is different.
Q2. Why we need our customer tell the insulation thickness ?
Our customers can tell us the insulation thickness or the referance satndards, such as GB/IEC /NEMA.
Q3. If I order today, how long it takes for the shipment ?
If customized order will ship the goods within 5-15days also depend on the quantity.
Q4. Can u provide customized specifications ?
Yes,we can. Round wire diameter 1.00-8.00mm Flat wire Thickness(a): Φ0.8mm-5.0mm, Width(b): Φ2-16mm .
Sample room and warehouse

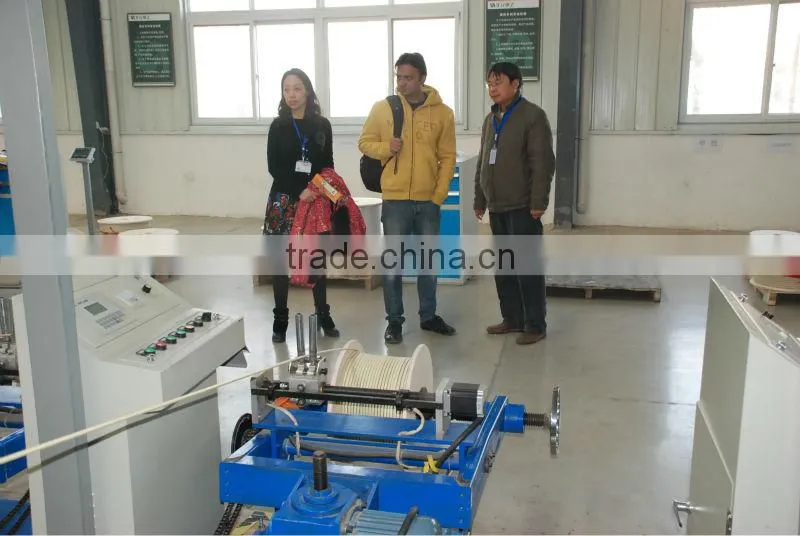

Customer in workshop
Xuchang Huayuan Magnet Wire Co.,Ltd is established in 1993 and we have developed to a professional manufacture of enameled wire and paper covered aluminum wire as well as fiber-glass covered aluminum wire. Our 100,000 square meter factory is ISO 9001(00112Q213049R 1M /4100) and 14001 environment system certified, and our products are also UL-listed. Our workshop maintains constant temperature and humidity to gurantee the quality.
Business Card
Contact Us
- Xuchang Huayuan Electric Apparatus Co., Ltd.
- Contact nameRose Rose
- Phone0086-374-8579111
- AddressSouth of Weilai Avenue, Industry Cluster District, YanlingCounty, Xuchang City, Henan Province, China Xuchang,Henan
