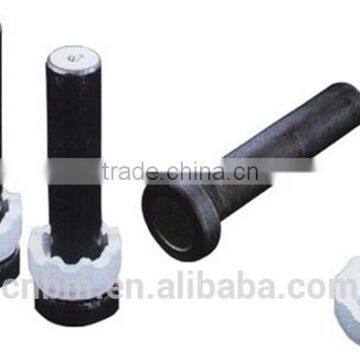

Help CenterArc Welding Shear Stud Connectors for Steel Structures
Related Products
-
Welding Studs of Carbon Steel for Arc WeldingUS$ 0.2 - 0.75MOQ: 1 Metric Ton -
Arc Stud Welding Shear Connectors With Ceramic Ferrules for Steel StructuresNegotiableMOQ: 1 Metric Ton
-
Stud Welding Shear ConnectorsNegotiableMOQ: 1 Metric Ton
-
Shear Connectors/bolts From CNBMNegotiableMOQ: 1 Metric Ton
-
New Design Binding Iron Wire With CE CertificateNegotiableMOQ: 20 Tons
Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.
All our products meet the current standards and specifications.
The ISO 13918 SINOARSTM shear studs (shear connectors) use the ISO13918 standard Type UF and PF ceramic
ferrules,other special type available upon request.
When inquire prices and ordering, please specify name, standard, type, specification (LBW), quantity, special requirements(if have), etc., eg.
Shear Stud, ISO 13918, Type SD, 22x150 (LBW), 60,000 Pieces.
Welding studs specification:
Description |
Shear connectors, shear studs, welding studs |
Materials |
Carbon steel or stainless steel |
Available specs |
GB/T 10433,ASTM A108,ASW D1.1,EN ISO13918,AS/NZS1554,JIS B1198 |
Dia |
M12-M25(1/2”-1”) |
Length |
50-300MM(2”-11-3/4”) |
Head mark |
HYZ or customized |
Used |
Steel structures such as bridge construction, airport, railway, multi-floor& high-rise steel structure building,ect |
Mechanical properties for different standard
standard |
Tensile strength |
Yield strength |
Elongation |
ASWD1.1 |
≥450MPA |
≥350MPA |
≥15%/20% |
EN:ISO13918 |
≥450MPA |
≥350MPA |
≥15% |
JIS B1198 |
≥450MPA |
≥235MPA |
≥20 |

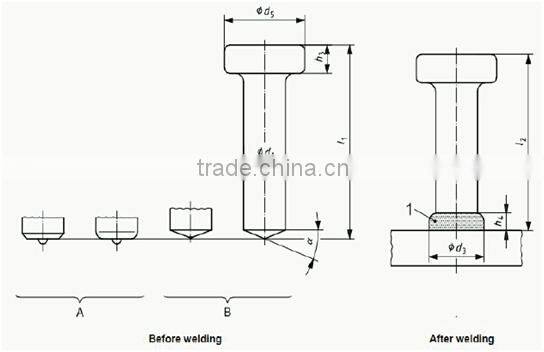

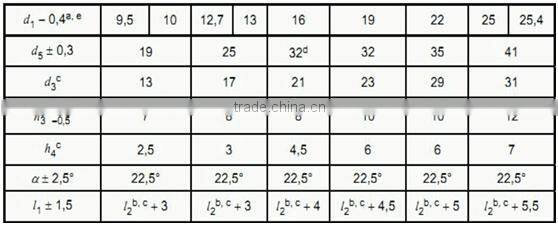

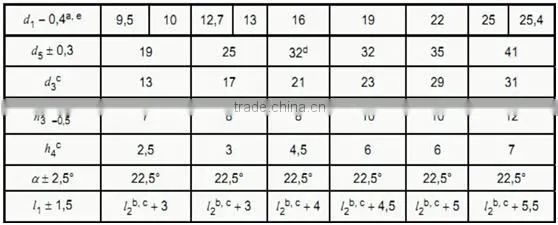

Dimension for ISO13918 standard
weld collar A-shape A of tip B-shape B of tip(example)
Remark:
L1 for the length before welding,L2 for the length after welding
Dimensions in millimeters

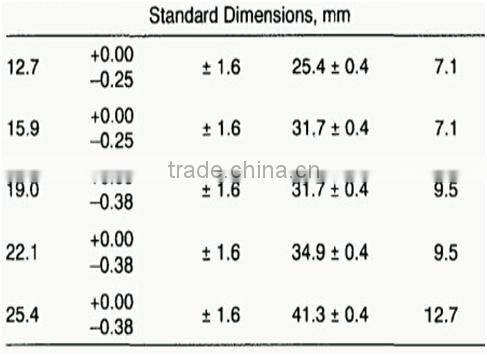

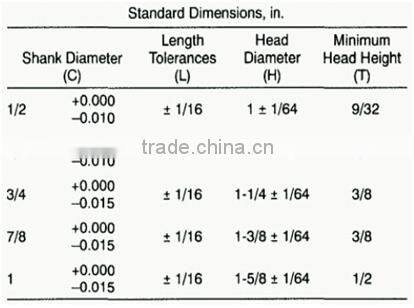

Dimension for ASTM AWS D1.1 standard

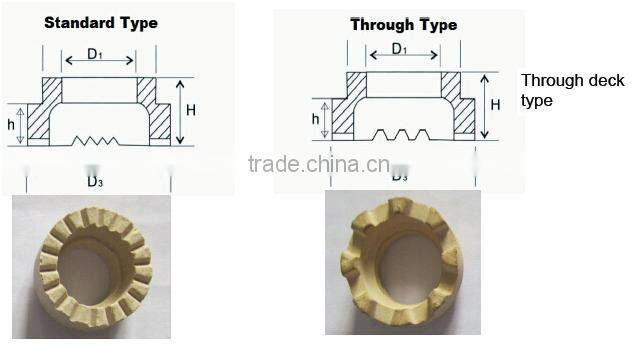

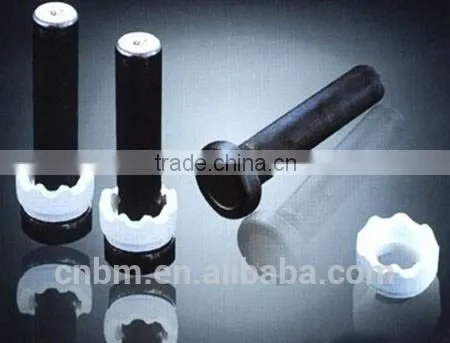

Type of ceramic ferrule:

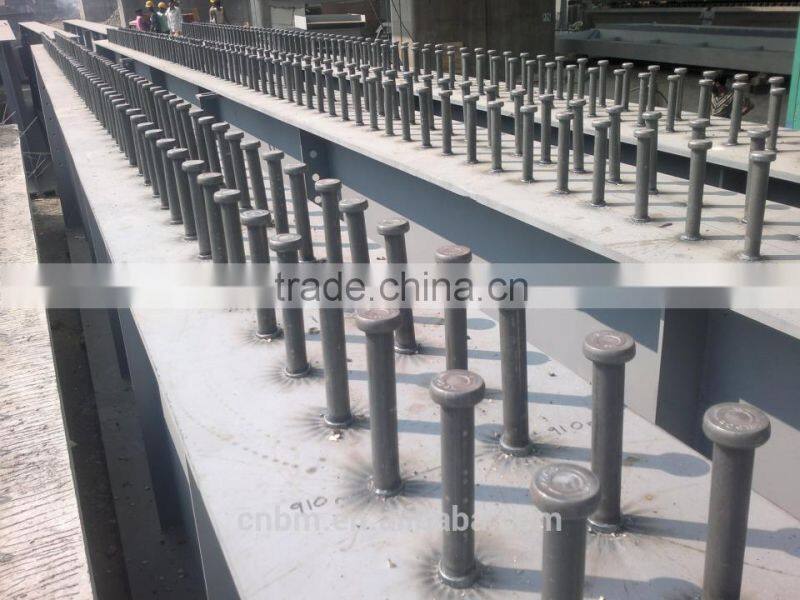

Welding studs application:
Steel structures such as bridge construction, airport, railway, multi-floor& high-rise steel structure building,ect

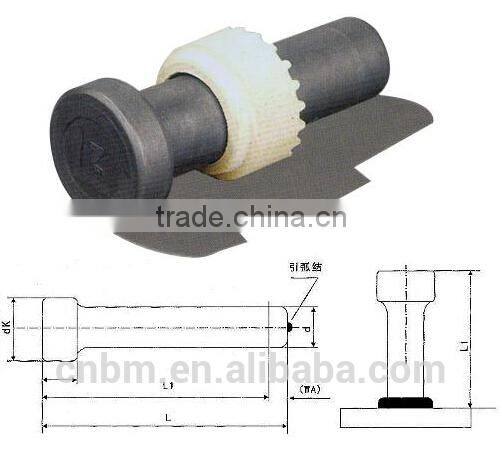

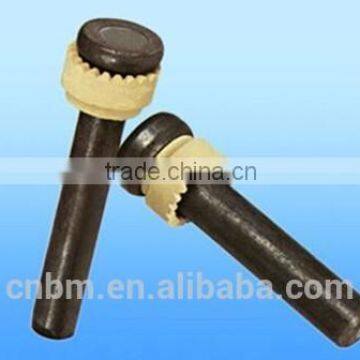

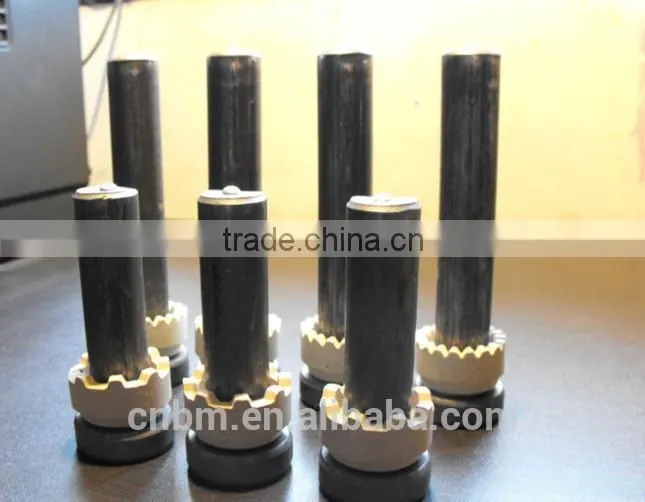

Product show:
CNBM International Corporation. We are the Chinese state owned and one of the world top 500 enterprises, with SGS approved and ISO9001 certified.
We specialize in supplying:
l Welding stud/Shear connector
l High strength hex head bolt 8.8 /10.9
l High strength tension control bolt /shear bolt 8.8/10.9
l Thread rod
l Stud welding machine
l Other building materials such as steel coils etc
Contact:
Skype:julia20101019
Mobile:0086 13812190393
